When using an electrical appliance, basic safety precautions should always be folowed, including the following: An appliance should never be left unattended when plugged in. Always unplug this appliance from the electric outlet immediately after using and before cleaning. Always unplug before relamping, Replace bulb with same type rated 15 watts. 1.
CONTENTS Name of Parts 1&2 Accessories Before sewing (Power supply and Sewing lamp). Take out extension table, free arm sewing Winding the bobbin Removing bobbin case and bobbin Inserting bobbin into bobbin case Inserting bobbin case into shuttle race Threading upper thread & Twin needle threading. Drawing up bobbin thread.
Page 6

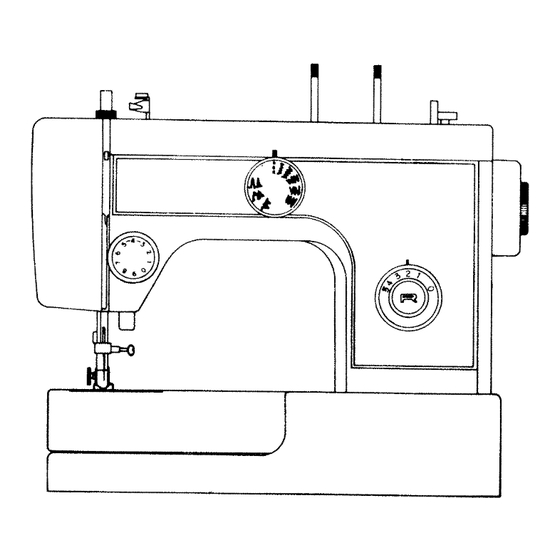

NAME VIEW) 8 Sub-spool pins 1 Pattern selector dial pins 2 Pressure regulator 9 Spool 3 Take up lever 10 Top cover 4 Thread tension dial 11 Stitch length dial 5 Presser foot Reverse button 6 Shuttle cover 13 Thread guide for upper threading 7 Extension table —1—...
Page 7
(REAR VIEW) Bobbin winder spindle Bobbin winder stopper Upper thread guide Stop Motion knob Hand wheel Face cover — Thumb screw Needle plate Presser foot lever —2—...
BEFORE SEWING 1. Fit the machine plug into the machine. 2. Plug machine power supply. 3. Sewing speed can be varied by the speed controller. 1. Remove or install bulb from Sewing lamp inside of face cover. 2. Open face cover in direction of arrow.
REMOVING EXTENSION TABLE 1. Hold the left end of table and pull out in direction arrow. FREE-ARM SEWING 1. Especially useful when sewing sleeves, pants leg, tubular fabrics etc more easily. 2. To sew tubular just slip the sleeve or pants leg on the free arm as shown above.
INSERTING BOBBIN CASE INTO SHUTTLE RACE Raise needle to its [righest position, pulling thread to the front, open the latch of bobbin case and hold it. Insert 2. Holding latch open, place bobbin case onto centre pin in shuttle and release latch —8—...
Page 17
ADJUSTING THREAD TENSION Correct Upper thread Fabric Strong Weak Bobbin thread Upper thread tension may be adjusted by turning the thread tension dial. Incorrect rhre Lower thread tension can be adjusted by turning screw bobbin case slightly right (clock-wise) to increase tension.
CHANGING NEEDLE 1. Raise needle to its highest position. 2. Loosen neecne clamp screw and remove old needle. 3. With the flat side of the needle facing away from you, insert needle as far up as it will 4. Tighten the needle clamp screw securely, —14—...
TO FINISH SEAM 1. Sew to the edge of seam. 2. Push the reverse button and sew in reverse for about 3—4 cms. 3. Raise need’e to ts highest position. 4. Lift presser foot and pull out the fabric to rear of machine.
Page 25
_____ BLIND STITCH 1. Fold fabric as shown. 2. To finish seam as shown. — —...
(Use darning plate see page 11) 1. Lower drop feed. 2. Use button presser foot and attach firmly. 3. Place button between presser foot and fabric and lower presser foot. 4. Manually turn hand wheel towards you ensuring that the needle enters into both holes of button without obstruction.
MAINTENANCE (CLEANING AND OILING) 1. Raise needle to its highest position. 2. Take out bobbin case. 3. Turn latch knob A as illustrated. 4. Take off shuttle race cover. 5. Take out shuttle hook. 6. Clean and oil shuttle race and hook, then replace in the reverse order.
