User's Manual
Professional Rack Mount UPS
PR3000
K01-3000SCA-04

Advertisement

Table of Contents
loading

Summary of Contents for CyberPower PR3000

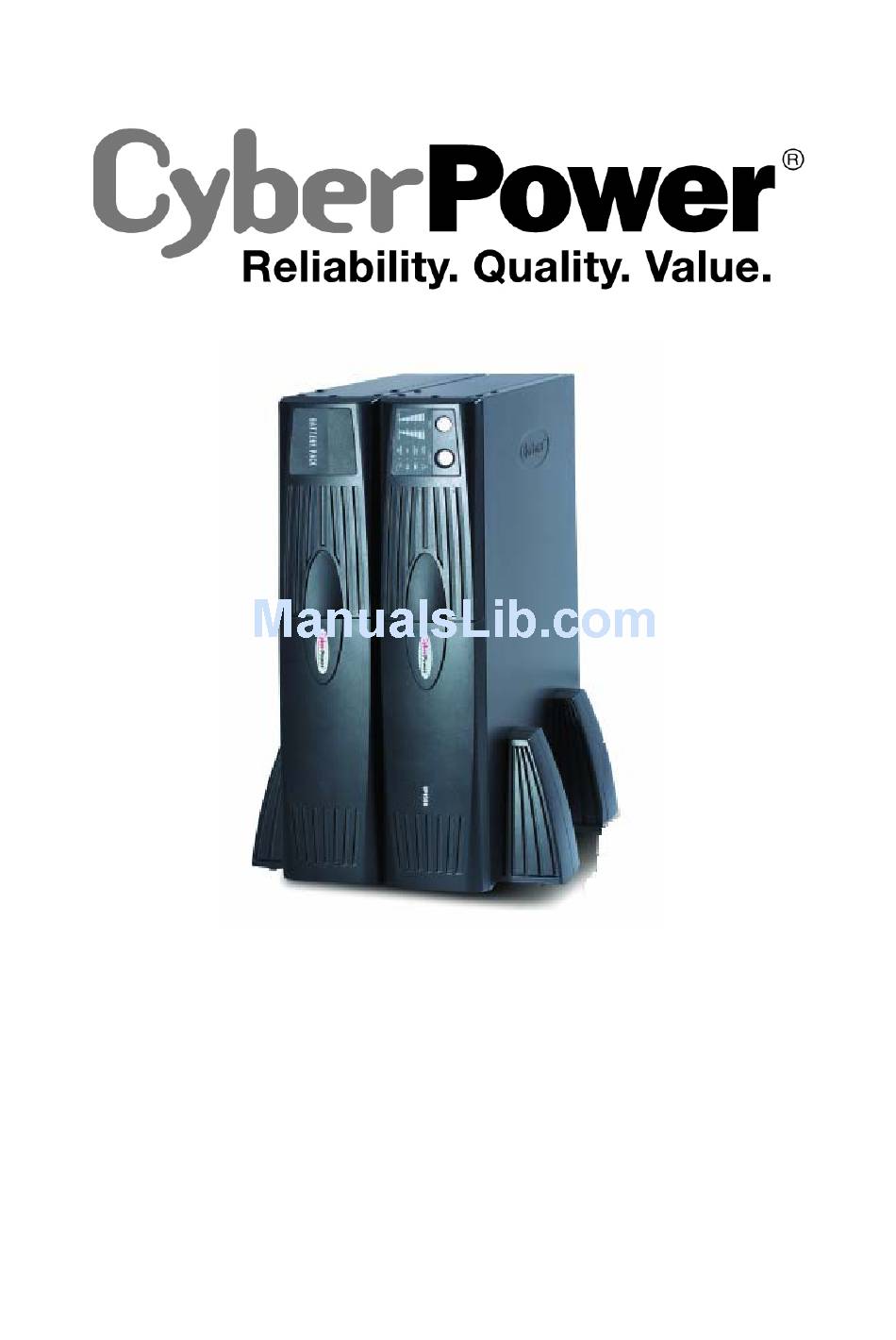

  • Page 1 User’s Manual Professional Rack Mount UPS PR3000 K01-3000SCA-04...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY WARNINGS ..........................2 BLOCK DIAGRAM..........................2 INSTALLATION ............................3 UNPACKING ............................3 HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT ........3 TO ESTIMATE POWER REQUIREMENTS....................3 HARDWARE INSTALLATION........................3 BASIC OPERATION..........................6 FRONT PANEL DESCRIPTION ........................6 REAR PANEL DESCRIPTION ........................8 TROUBLESHOOTING ......................... 10 TECHNICAL SPECIFICATIONS ......................
  • Page 3: Safety Warnings

    Safety warnings This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate. The AC power outlet must be installed near the UPS and must be easily accessible.
  • Page 4: Installation

    UNPACKING Inspect the UPS upon receipt. The box of PR3000 should contain the following: (1) UPS Unit; (1) User’s Manual; (2) Rack Mount Brackets; (2) Stands; (1) PowerPanel Plus Software Disk; (1) PowerPanel Software Disk; (1) Telephone Cable; (2) Serial Interface Cables (RS232); (1) Serial-to-USB cable...
  • Page 5 Connect the black wire and the red wire of the Battery Pack to the negative (-) / black terminal and the positive (+) / red terminal of the PR3000 respectively. (See Figure 1) **Note: Due to the large current, make sure to connect the positive to positive and the negative to negative.
  • Page 6 Figure 1: Connecting PR3000 with Battery Pack...
  • Page 7: Basic Operation

    Basic operation FRONT PANEL DESCRIPTION Power Switch Press the power button to turn the UPS ON or OFF Test Switch The PR-UPS performs a self-test automatically when power on. If the UPS passes the test, it returns to on-line operation. If the UPS fails the self-test, please recharge the battery for 4 hours and perform another self-test.
  • Page 8: Load Level Indicators

    Load Level Indicators This indicator shows a visual depiction of the UPS load. The load indicator LED will turn orange if the load is between 80 and 100%.If the load is under 20%, no indicator LED will illuminate. Power On Indicator This LED is illuminated when the utility condition is normal and the UPS outlets are providing “clean power”, free of surges and spikes.
  • Page 9: Rear Panel Description

    REAR PANEL DESCRIPTION Circuit Breaker Reset for Overload Protection Re-settable circuit breakers provide optimal overload protection. USB Port Through USB communication port to manage software Battery Backup and Surge Protection Outlets Provides six battery powered, surge protected and AVR outlets for connected equipment and insures uninterrupted operation of connected equipment during a power failure.
  • Page 10 Dual Serial Ports The PR3000 provides two serial ports to allow connection and communication between the UPS and two computers. (See Figure 2) This allows the simultaneous shutdown of two computer systems. These interfaces are also compatible with the UPS...
  • Page 11: Troubleshooting

    Recharge the battery by leaving the UPS plugged in perform expected at least 4 hours. runtime. Battery is slightly worn out. Contact CyberPower about replacement batteries at tech@cyberpowersystems.com The UPS will not The on/off switch is designed Turn the UPS off. Wait 10 seconds and then turn the turn on.
  • Page 12: Technical Specifications

    Technical specificatio Model PR3000 Capacity(VA)/(Watts) 3000VA/2200W Input Voltage Range 85-150Vac Frequency Range 47-63Hz Output On battery Output Voltage Pure sine wave at 120Vac +/- 5% Transfer time(Typical) 60Hz +/- 1% Overload protection Internet Ready On Utility:Circuit breaker, on battery:internal current limiting...
  • Page 13: Definitions For Illuminated Led Indicators

    Overload- Turn the UPS off and unplug at Long least one piece of equipment from the beep UPS. Wait 5 seconds, reset the circuit breaker and restart the UPS. Surge Protection Malfunction- Power surge has damaged the unit. Please contact CyberPower.
  • Page 14: Battery Replacement

    Battery replacement Contact your dealer or call the CyberPower Technical Support in this manual for information on battery replacement. Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Servicing the battery can only be performed by trained personnel knowledgeable of batteries and their precautions.
  • Page 15: Limited Warranty And Connected Equipment Guarantee

    1 YEAR LIMITED WARRANTY Read the following terms and conditions carefully before using the CyberPower PR3000 (the "Product"). By using the Product you consent to be bound by and become a party to the terms and conditions of this Limited Warranty and Connected Equipment Guarantee (together referred to as this "Warranty").
  • Page 16 CyberPower will inspect and examine the Product. If the Product is defective in material or workmanship, CyberPower will repair or replace it at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
  • Page 17 High Risk Activities or with aquariums. CyberPower does not authorize use of any Product in any High Risk Activities or with Aquariums. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF THE PRODUCT.
  • Page 18: Conformance Approvals

    CONORMANCE APPROVALS Conformance Approvals FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. WARNING!! This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.
  • Page 19 CyberPower Systems B.V. Flight Forum 3545,5657DW Eindhoven,The Netherlands Tel: +31 (0)40 2348170 Fax: +31 (0)40 2340314 Website: http://eu.cyberpowersystems.com/ E-mail: sales@cyberpower-eu.com Entire contents copyright © 2009 CyberPower Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited.
