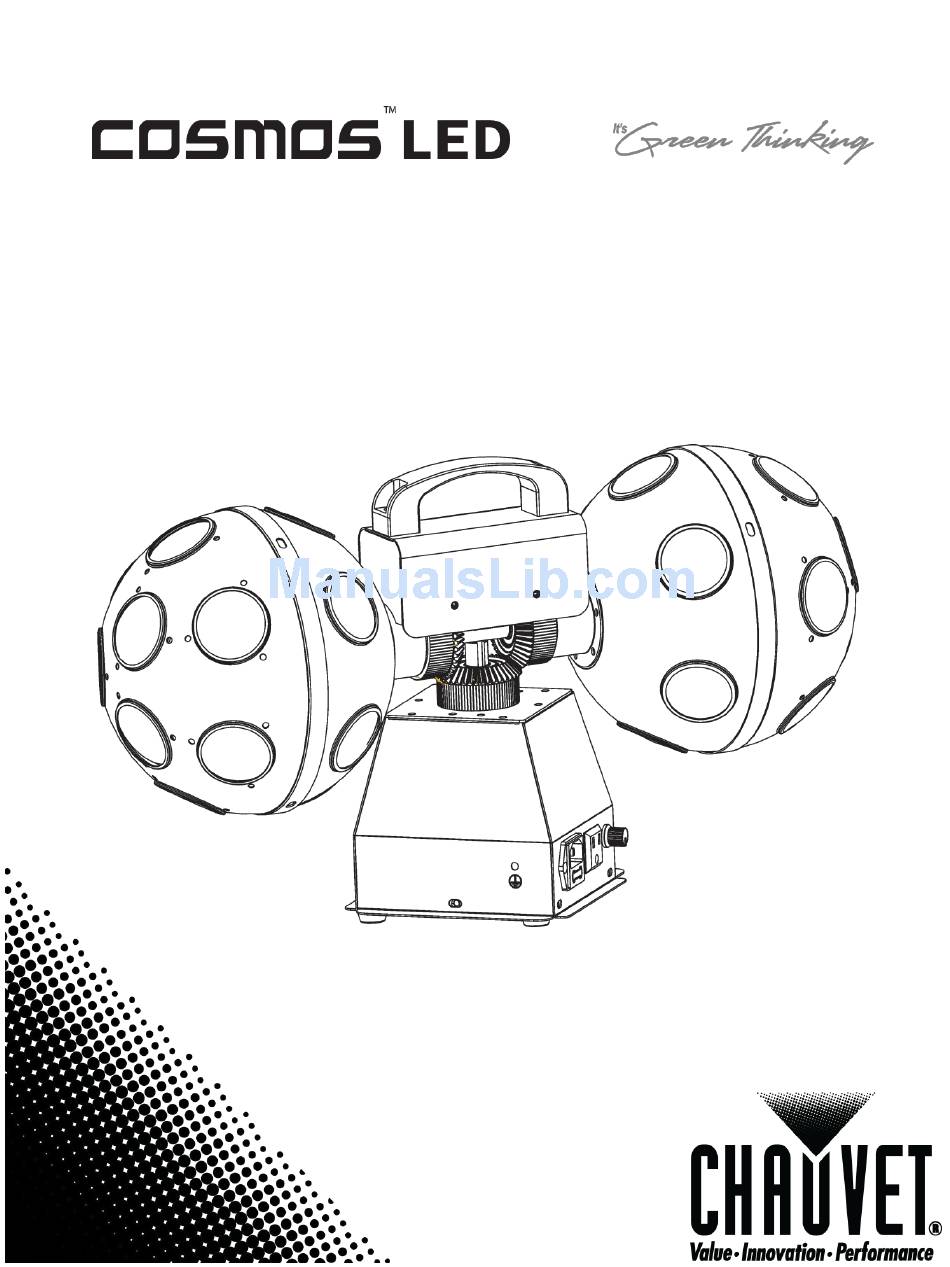

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    CONTACT US ................................. 12 CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Rev01...

  • Page 3: Before You Begin

    1. B EFORE EGIN What is included  1 x Cosmos™ LED  1 x Mounting Bracket  1 x Power Cord  1 x Warranty Card  1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition.

  • Page 4: Safety Instructions

    Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product.  Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Back Panel Fuseholder Motor Rotation Speed Adjustment Knob Power In Power Out 2. Introduction 9/10/2010 3:56 PM...

  • Page 6: Setup

    Additional power link out The power linking shown in this document is for the Chauvet® North American version ONLY! Therefore, it is the customer’s responsibility to check with the Dealer/Distributor regarding power linking on the local version of the product. Connections and availability may change, depending on the power requirements and/or regulations of each country/region.

  • Page 7: Mounting

    Mounting Orientation The Cosmos™ LED may be mounted in any safe position provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut, and bolt, or a hanging clamp.

  • Page 8: Operating Instructions

    4. O PERATING NSTRUCTIONS Adjusting the Rotation Speed The rotation speed of this product may operate from 0~100%. Use the rotation adjustment knob to adjust the speed. The LEDs will change to the beat of the music, using the internal microphone. The LED program is not adjustable.

  • Page 9: Appendix

     Check for power on Mains. Device does not  Loose power cord  Check power cord power up If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix 9/10/2010 3:56 PM...

  • Page 10: General Maintenance

    Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 11 WEIGHT & DIMENSIONS Length......................8 in (203 mm) Width ......................21.5 in (546 mm) Height ......................11.5 in (292 mm) Weight ......................8.9 lbs (4 kg) POWER Auto-ranging Power Supply............. 100~240 VAC, 50/60 Hz Power Consumption @ 120 V ..............11 W (0.3 A) max Power Consumption @ 230 V ..............

  • Page 12: Contact Us

    ONTACT W o r l d W i d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service)
