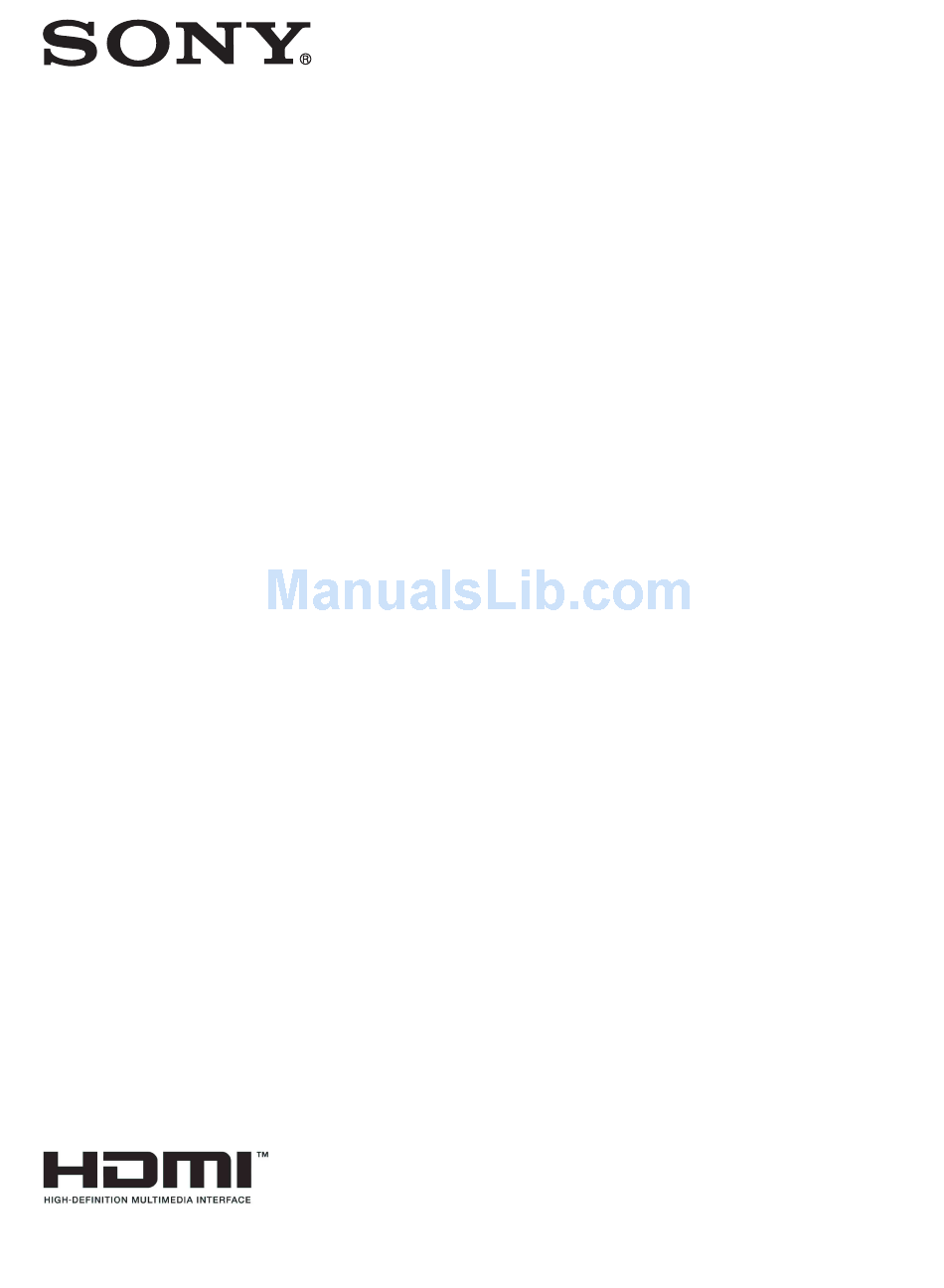

Page 1: Lcd Monitor
4-447-920-11(1) LCD Monitor Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. LMD-941W © 2012 Sony Corporation... - Page 2 Record these numbers in the spaces provided below. WARNING Refer to these numbers whenever you call upon your THIS APPARATUS MUST BE EARTHED. Sony dealer regarding this product. WARNING Model No.____________________ When installing the unit, incorporate a readily Serial No.____________________...
- Page 3 Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), Consult with Sony qualified personnel for wall mount or E4 (controlled EMC environment, ex. TV studio). rack mount installation. For the customers in Europe For the customers in the U.S.A.
-
Page 4: Table Of Contents
Table of Contents Precaution .............. 5 On Safety ............5 On Installation ............ 5 Handling the LCD Screen ........5 On Burn-in ............5 On a Long Period of Use ........5 On Cleaning ............6 On Dew Condensation ........6 On Repacking ............. -
Page 5: Precaution
• Do not push or scratch the LCD monitor’s screen. Do Precaution not place a heavy object on the LCD monitor’s screen. This may cause the screen to lose uniformity. • If the unit is used in a cold place, horizontal lines or a residual image may appear on the screen. -
Page 6: On Cleaning
Stubborn stains may be removed with a cloth lightly panel flashes in green and amber for fan error indication, dampened with mild detergent solution, followed by turn off the power and contact an authorized Sony wiping with a soft dry cloth. dealer. -
Page 7: Features
0% scan (normal) or 5% over scan (over). the light intercepting hood, connector protector and A native display function that maps the pixel of the carrying handle (optional Sony VF-510 Monitor ENG signal to the panel in one-to-one mode is also equipped. Kit) for outdoor use. - Page 8 Monitor stand You can set the monitor display in 15° by using the stand. Monitor ENG Kit You can use the light intercepting hood, connector protector and carrying handle (optional Sony VF-510 Monitor ENG Kit) for outdoor use. Features...
-
Page 9: Location And Function Of Parts And Controls
Location and Function of Parts and Controls Front Panel e Stand a Tally lamp You can check the status of the monitor by the color of Pull the stand toward you to tilt the monitor screen by the tally lamp. 15°. -
Page 10: Using The Stand
F5 button: H/V DELAY Using the stand F6 button: VOLUME Pull the stand toward you to tilt the monitor screen by F7 button: I/P MODE 15°. You can assign various functions in FUNCTION BUTTON SETTING of the USER CONFIG menu. Press the button BRIGHTNESS, CONTRAST, CHROMA, VOLUME, PHASE, or APERTURE function assigned to display the adjustment screen. -
Page 11: Input Signals And Adjustable/Setting Items
Input Signals and Adjustable/Setting Items Input signal Item HDMI Video B & W CONTRAST* BRIGHTNESS* × CHROMA* × × × × × × PHASE* (NTSC) APERTURE COLOR TEMP COLOR SPACE × × × × × × AUTO CHROMA/PHASE × × ×... -
Page 12: Rear/Bottom Panel
When inputting a video signal with the jitters, etc. the e SERIAL REMOTE connector (RJ-45) picture may be disturbed. We recommend using the Connect to the network or Sony BKM-15R/16R TBC (time base corrector). Monitor Control Unit by using a 10BASE-T/100BASE- TX LAN cable (shielded type, optional). -
Page 13: Installing The Handle
The monitor can also be operated with AC power by attaching the AC adaptor. CAUTION For safety, use only the Sony AC adaptor listed below. • AC power using the AC-941W AC Adaptor (DC IN) connector Connects the DC 12V external power source to use the monitor. -
Page 14: Installing The Arm Mount Bracket
Installing the Arm Mount Installing to the Rack Bracket (Using MB-531) You can install the supplied arm mount bracket, using You can attach up to two monitors to the rack by using the supplied four screws. the optional MB-531 Mounting Bracket. Arm mount bracket Attach the mounting bracket to the monitor. -
Page 15: Power Supply
Connecting the AC Power Cord Power Supply Attach the AC adaptor to the monitor, and then connect the supplied AC power cord. Attaching the AC Adaptor AC power cord (supplied) Attaching AC plug holder (supplied) Attach the AC plug holder to the AC power cord, and connect it to the AC IN connector so that the cord... -
Page 16: Selecting The Default Settings
Selecting the Default Settings When you turn on the unit for the first time after purchasing it, select the area where you intend to use this unit from among the options. The default setting values for each area Press the 1 (standby) switch. The unit is turned on and the SELECT SETTING screen appears. -
Page 17: Selecting The Menu Language
2 If LATIN AMERICA is selected: Selecting the Menu PAL&PAL-N area Language L A T I N A M E R I C A P A L & P A L - N A R E A Argentina A R G E N T I N A P A R A G U A Y Paraguay U R U G U A Y... -
Page 18: Using The Menu
The setting items (icons) in the selected menu are Using the Menu displayed in yellow. USER CONFIG – SYSTEM SETTING The unit is equipped with an on-screen menu for making N T S C S E T U P : xxxxxx F O R M AT D I S P L AY: xxxxxx... - Page 19 The menu icon presently selected is shown in The menu disappears automatically if a button is not yellow and setting items are displayed. pressed for one minute. About the memory of the settings USER CONFIG – SYSTEM SETTING N T S C S E T U P : xxxxxx The settings are automatically stored in the monitor F O R M AT D I S P L AY:...
-
Page 20: Adjustment Using The Menus
POSITION Adjustment Using the TRANSPARENCY IMD SETTING Menus POSITION TRANSPARENCY TEXT COLOR Items TEXT BRIGHTNESS TALLY 1 The screen menu of this monitor consists of the TALLY 2 following items. WFM/ALM/VECTOR (waveform monitor, audio level meter, and vectorscope) SETTING DISPLAY STATUS (the items indicate the WFM/ALM/VECTOR current settings.) -
Page 21: Adjusting And Changing The Settings
Adjusting and Changing the Submenu Setting Settings COLOR TEMP Selects the color temperature from among D65, D93 and USER setting. STATUS menu MANUAL If you set the COLOR TEMP to The STATUS menu is used to display the current status ADJUSTMENT USER setting, the item displayed is of the unit. - Page 22 Submenu Setting USER CONTROL 1/3 AUTO CHROMA/ Adjusts color intensity (CHROMA) S U B C O N T R O L PHASE and tones (PHASE). C O N T R A S T : • AUTO ADJ VALUE: Selects B R I G H T N E S S : ON or OFF of the auto C H R O M A : adjustment.
-
Page 23: User Config Menu
USER CONFIG menu Submenu Setting The USER CONFIG menu is used for setting the I/P MODE (picture delay Selects to set the delay by the system, marker, T/C display, WFM/ALM/VECTOR, minimum) picture processing to the minimum level when the interlace signal is focus, function button, closed caption, and audio. - Page 24 Submenu Setting Submenu Setting SD PIXEL MAPPING Selects SD picture size (pixels) CENTER MARKER Selects ON to display the center according to the input signal format mark of the picture and OFF not to from the COMPOSITE IN display. connector. SAFETY AREA Selects the safe area size for the When picture signals in the size...
- Page 25 IMD (in-monitor display) SETTING Submenu Setting The monitor supports “TSL UMD Protocol - V5.00” TEXT COLOR Selects the color of text displayed provided by Television System LTD. in IMD. Selecting “0 (commanded color)” sets the same color as set in Tally 1 and tally 2 lamp colors, text colors and text TSL command.
- Page 26 WFM/ALM/VECTOR (waveform monitor, Submenu Setting audio level meter, and vectorscope) When WFM is selected SETTING Waveform Audio level (dB) OVER USER CONFIG – WFM/ALM/VECTOR SETTING 1/2 109% D I S P L AY: 100% xxxxxx W F M / A L M / V E C T O R : P O S I T I O N : T R A N S PA R E N C Y: xxxxx...
-
Page 27: Function Button Setting
Submenu Setting Submenu Setting When VECTOR is selected TARGET Select 75 or 100. Switches the vectorscope target between 75% and 100%. Audio level Magenta (dB) OVER FOCUS SETTING Bar I USER CONFIG – FOCUS SETTING F O C U S M O D E : Yellow C O L O R : F R E Q U E N C Y:... - Page 28 When LINE SELECT is set to ON and WFM is selected, each time you press the button, the settings change in the Submenu Setting sequence WFM display activated t Line position F1 BUTTON to F7 Assigns the function to the function setting t WFM display deactivated.
-
Page 29: Scan Mode Image
menu selection control right to increase the green tone and turn left to increase the purple tone. – APERTURE Press the button to adjust the picture sharpness. Press the 1280 × 720 button to display the adjustment screen and adjust the picture sharpness. -
Page 30: Remote Menu
Submenu Setting Submenu Setting TYPE Sets the closed caption display type. SDI AUDIO SETTING Sets the audio channel when SDI • AUTO1: Select this to display signal is input. automatically 608(VBI)* • 3G/HD/SD: Selects from among when SD-SDI signal is channels CH1 to CH16, odd input, or to display channel + even channel... - Page 31 Submenu Setting Submenu Setting FORCED TALLY The tally lamp function is forcibly assigned to 7 pin and 8 pin of the PARALLEL REMOTE Selects the PARALLEL REMOTE PARALLEL REMOTE connector. connector pins for which you want Selecting ON assigns tally lamp to change the function.
-
Page 32: Key Inhibit Menu
Submenu Setting Troubleshooting CONNECTION Sets the connection of the monitor and the controller. PEER TO PEER: for one to one connection This section may help you isolate the cause of a problem LAN: for connection via a and as a result, eliminate the need to contact technical network support. -
Page 33: Specifications
General Specifications Power 100 V to 240 V AC, 0.7 A to 0.4 A, 50/60 Hz 12 V DC, 2.5 A Picture performance Power consumption Approx. 36 W (max.) Panel a-Si TFT Active Matrix LCD Inrush current Picture size (diagonal) (1) Maximum possible inrush current 228.0 mm (9 inches) at initial switch-on (Voltage... -
Page 34: Available Signal Formats
Available signal formats Note The unit is applicable to the following signal formats. Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR System Compo SD/HD HDMI DAMAGES OF ANY KIND INCLUDING, BUT site NOT LIMITED TO, COMPENSATION OR –... -
Page 35: Dimensions
Dimensions 100 (4) Front 222.4 (8 Side (When setting the stand using positions B and C for the mounting screws) 38 (1 Side 161.8 (6 13 ( 148.8 (5 130 (5 70 (2 60 (2 Unit: mm (inches) Mass: Approx. 2.0 kg (4 lb 6.5 oz) Approx. - Page 36 Sony Corporation...
