QuickSpecs
Overview

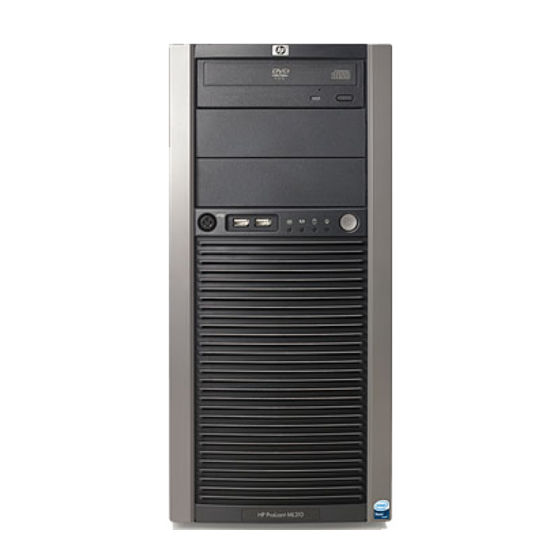

Front View:
1.
SATA DVD-ROM
2.
Removable Media Bays
3.
LED Indicators and Power Button
4.
Upfront USB Ports
5.
Four DIMM Sockets for up to 8GB DDR2 memory
6.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
7.
System Fan
8.
410W Non-Hot Plug Non-Redundant Power Supply or
430W Hot Plug Redundant Power Supplies
What's New
Quad-Core Intel® Xeon® processor X3360 (2.83GHz, 12MB L2 cache, 95 Watts, 1333MHz Front Side Bus (FSB))
Single-Core Intel® Celeron® processor 440 (2.0GHz, 512KB L2 cache, 800MHz FSB)
DA - 12858 Worldwide QuickSpecs — Version 17 — 6.10.2008
HP ProLiant ML310 Generation 5
Rear View:
1. Power cord connections for Non-Redundant Power
Supply
2. Mouse connector
3. Keyboard connector
4. Embedded Gigabit NIC / Shared iLO 2 Management Port
5. Dedicated Integrated Lights-Out 2 (iLO 2) Management
Port
6. USB 2.0 (qty 2)
7. Video Port
8. Serial Port
9. Up to Five Expansion Slots (Four PCI Express and One
PCI-X (Optional))
Page 1

Advertisement

loading

Related Manuals for HP ProLiant Generation ML310

Summary of Contents for HP ProLiant Generation ML310

  • Page 1 QuickSpecs HP ProLiant ML310 Generation 5 Overview Front View: Rear View: SATA DVD-ROM 1. Power cord connections for Non-Redundant Power Supply Removable Media Bays 2. Mouse connector LED Indicators and Power Button 3. Keyboard connector Upfront USB Ports 4. Embedded Gigabit NIC / Shared iLO 2 Management Port Four DIMM Sockets for up to 8GB DDR2 memory 5.
  • Page 2 Overview At A Glance The HP ProLiant ML310 G5 is an affordable, single processor tower server designed to provide the solid network foundation essential to fuel thriving small offices. Processing power ranging from single-core Celeron to quad-core Xeon combines with industry-leading management and essential data protection features for a secure, affordable platform that helps you run your business efficiently.

  • Page 3: Standard Features

    QuickSpecs HP ProLiant ML310 Generation 5 Standard Features NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA1-5499ENW.pdf. NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information –...
  • Page 4 The supported floppy drive can be a USB drive key, USB floppy drive, half-height internal floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO NOTE: Any Smart Array Controller or SAS HBA requires the purchase of the HP SAS Cable for the ML310 G5.
  • Page 5 NOTE: For additional product and licensing information about HP Insight Control Environment, visit: http://www.hp.com/go/ice. HP Insight Control management suites and most HP ProLiant Essentials include a one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
  • Page 6 QuickSpecs HP ProLiant ML310 Generation 5 Standard Features Server Management HP Systems Insight HP Systems Insight Manager (HP SIM) provides a unified, secure and Stand Alone Software Manager extensible standards-based environment to centrally manage servers, Product - ProLiant storage and other infrastructure devices, (both HP and non-HP) across Essentials multiple operating system platforms.
  • Page 7 SmartStart Web site at: http://www.hp.com/servers/smartstart. SmartStart version supported (minimum): SmartStart 7.51. Insight Management The Insight Management Agents should be installed on all HP servers Agents to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage.
  • Page 8 NOTE: HP ProLiant ML310 a C13 to C14 2.8M jumper cord ships standard. If customers require a local power cord, they can check the power cord matrix for the appropriate country specific sku.
  • Page 9 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
  • Page 10 Whether an SMB, or large global corporation, HP has ProLiant server support offers to help you speedily deploy and maximize system uptime.
  • Page 11 1 GB (1 x 1GB) Network Controller Embedded NC326i Gigabit Server Adapter Storage Controller HP SC40Ge SAS HBA with RAID 0, 1 in a PCIe slot Hard Drives None ship standard (up to 4 hot plug SAS or SATA 3.5" drives supported) Internal Storage SAS: 1.2TB maximum;...
  • Page 12 QuickSpecs HP ProLiant ML310 Generation 5 Models ML310T05 3075 HP Processor(s) Dual-Core Intel® Xeon® processor 3075 (2.66GHz, 4MB L2 cache, 65 SATA Watts, 1333MHz FSB) 445334-xx1 Cache Memory 4MB L2 Memory 512 MB (1 x 512 MB) Network Controller Embedded NC326i Gigabit Server Adapter...
  • Page 13 QuickSpecs HP ProLiant ML310 Generation 5 Models Country Code Key XX=00 XX=01 Australia XX=03 XX=04 Germany XX=05 France XX=29 Japan XX=37 XX=42 EURO DA - 12858 Worldwide QuickSpecs — Version 17 — 6.10.2008 Page 13...

  • Page 14: Configuration Information - Factory Integrated Models

    HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
  • Page 15 HP Smart Array P800/512MB BBWC Controller 381513-B21 NOTE: RAID 0, 1, 1+0, 5, 6. HP SAS Cable ML310 G5 460310-B21 NOTE: Any Smart Array Controller requires the purchase of the HP SAS Cable ML310 G5 (460310-B21). Modems Agere 06 PCI Hi-Speed 56K SftMd, FIO 440519-B21 NOTE: This part number must be used for factory integration.
  • Page 16 The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
  • Page 17 401222-B21 Hard Drives Serial-Attached SCSI (SAS) Hot Plug Hard Drive NOTE: SAS HBA or array controller is required. HP 300GB 3G SAS 15K 3.5" DP HDD 416127-B21 HP 300GB 3G SAS 15K 3.5" SP HDD 431944-B21 HP 146GB 3G SAS 15K 3.5" DP HDD 384854-B21 HP 146GB 3G SAS 15K 3.5"...
  • Page 18 Tape Libraries" table in the Storage section for a list of SAS HBAs with tape support. HP SAS Cable ML310 G5 460310-B21 NOTE: Any SAS HBA or Smart Array Controller requires the purchase of the HP SAS Cable ML310 G5 (460310-B21). SAS Controllers Smart Array E200 Controller...
  • Page 19 (Worldwide) http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html (Worldwide) For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect Rack-Mount Tape Drive Enclosures HP StorageWorks 1U SCSI Rack-Mount kit...
  • Page 20 HP StorageWorks D2D130 Backup System with Data Protector Express EH951A Software Kit NOTE: 3TB of Disk Storage. HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape EH952A Drive NOTE: 3TB of Disk Storage. NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html...
  • Page 21 HP StorageWorks DAT Autoloader HP StorageWorks DAT 72x10 tape autoloader AE313B HP StorageWorks 1/8 Tape Autoloader HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 Tape Autoloader AH165A HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader...
  • Page 22 ProLiant Rack Enabling Kit (RoHS Compliant) 417705-B21 NOTE: This is a Rack Enabling Kit that supports the HP ProLiant ML110 and HP ProLiant ML310 servers (system & tray occupy 6U). NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24"...
  • Page 23 Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech U4458E support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic Support Plus 24 Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support U4459E offsite, onsite at HP's discretion, 24x7 2hr response time incl.
  • Page 24 HP ProLiant ML310 G5 Memory Configuration Standard Memory All HP ProLiant ML310 G5 models ship with unbuffered, ECC PC2-6400 DDR2 SDRAM running at 800MHz. Dual-core models include a single 512 MB DIMM. Quad-core models include a single 1GB DIMM. Factory Integrated Models include the memory capacity of your choice.

  • Page 25: Drive Support

    300GB 3G SAS 15K SP Up to 4 HP SC40Ge SAS HBA with RAID 300GB 3G SAS 15K DP HP 8 Internal Port SAS HBA with RAID 146GB 3G SAS 15K SP HP Smart Array E200/128 BBWC Controller 146GB 3G SAS 15K DP...
  • Page 26 Embedded SATA with integrated SATA RAID 0,1 500GB 1.5G SATA 7.2K HP SC40Ge SAS HBA with RAID 250GB 1.5G SATA 7.2K HP 8 Internal Port SAS HBA with RAID 160GB 1.5G SATA 7.2K HP Smart Array E200/128 BBWC Controller 80GB 1.5G SATA 7.2K...
  • Page 27 HP StorageWorks SCSI External 64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2 374654-B21 Tape Automation, External DAT 72x10 Autoloader 1/8 G2 Autoloader HP U320e SCSI Host Bus Adapter AH627A MSL2024 NOTE: Recommended for MSL tape libraries. MSL4048 MSL8096 MSL6000 HP StorageWorks SAS...
  • Page 28 QuickSpecs HP ProLiant ML310 Generation 5 Storage MSL2024 MSL4048 MSL8096 HP StorageWorks Fibre External Please consult the EBS connectivity matrix at: Tape Automation, http://www.hp.com/go/ebs for detailed connectivity information. External MSL2024 MSL4048 MSL6000 HP StorageWorks D2D External Embedded Network Controller Backup Systems...

  • Page 29: Technical Specifications

    QuickSpecs HP ProLiant ML310 Generation 5 Technical Specifications System Unit Dimensions (H x W x D) 17.0 x 7.9 x 24.0 in (43.2 x 20.0 x 61.0 cm) (with bezel) Tower Weight Maximum 50 lb (22.7 kg) (approximate) (two hard drives, power...
  • Page 30 QuickSpecs HP ProLiant ML310 Generation 5 Technical Specifications Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment.
  • Page 31 QuickSpecs HP ProLiant ML310 Generation 5 Technical Specifications Access Times (typical) Random DVD-ROM < 140 ms, CD-ROM < 125 ms Full-Stroke DVD-ROM < 250 ms, CD-ROM < 210 ms Data Transfer Rate DVD-ROM 21.6 MB/sec. Max. (sustained) CD-ROM 6 MB/sec. Max.
  • Page 32 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
