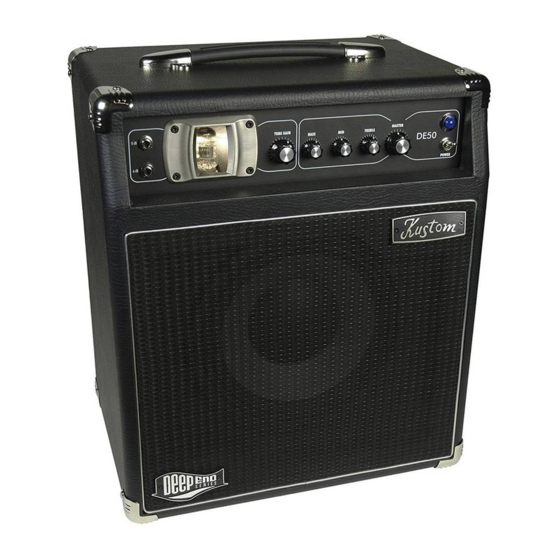

Summary of Contents for Kustom DE50
Page 1
The result is rich, dynamic tone that is perfect for a wide variety of playing styles and environments. Inside this manual you’ll find details about your Deep End® Series model. Everyone at Kustom wishes you many years of enjoyment with your new amplifier!
Page 2
FCC Statements 1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 5
5.) Mid - this passive EQ adjusts the mid-range frequency equalization of the amplifier. 6.) Treble - this passive EQ adjusts the high frequency equalization of the amplifier. 7.) Master- this controls the overall volume level of the amplifier. Note: Your DE50 features an exclusive Kustom circuit called Organic Clipping™.
Page 6
1.) External Speaker - this is a 2-conductor, 1/4-inch speaker output jack. Rating is 8 Ohms minimum. For full power, use an 8-Ohm speaker load. Higher impedance loads will result in lower power levels to the speaker. The signal path to the internal speaker is disconnected when using this jack. 2.) Headphones - this is a 3-conductor, 1/8-inch, stereo jack.
Page 7
1.) AC Power Cord Receptacle - AC power cord can be removed for easy storage and replacement if damaged. Insert the AC cord (provided) firmly into the AC receptacle. NOTE: Replace the AC power cord if protective jacket is damaged or ground pin is damaged or removed. 2.) Fuse - The fuse is located in a fuse tray just below the receptacle.
Page 8
Tube Preamp 1-12A X7 Output Power 50 Watts, RMS 8 Ohms @ 5% THD Speaker 1 X 10 Inch Kustom Deep End ® Input Impedance Dual Input 0dB: 1 Meg Ohm, - 6dB: 100K Ohm Gain 71dB (all controls @ max)
