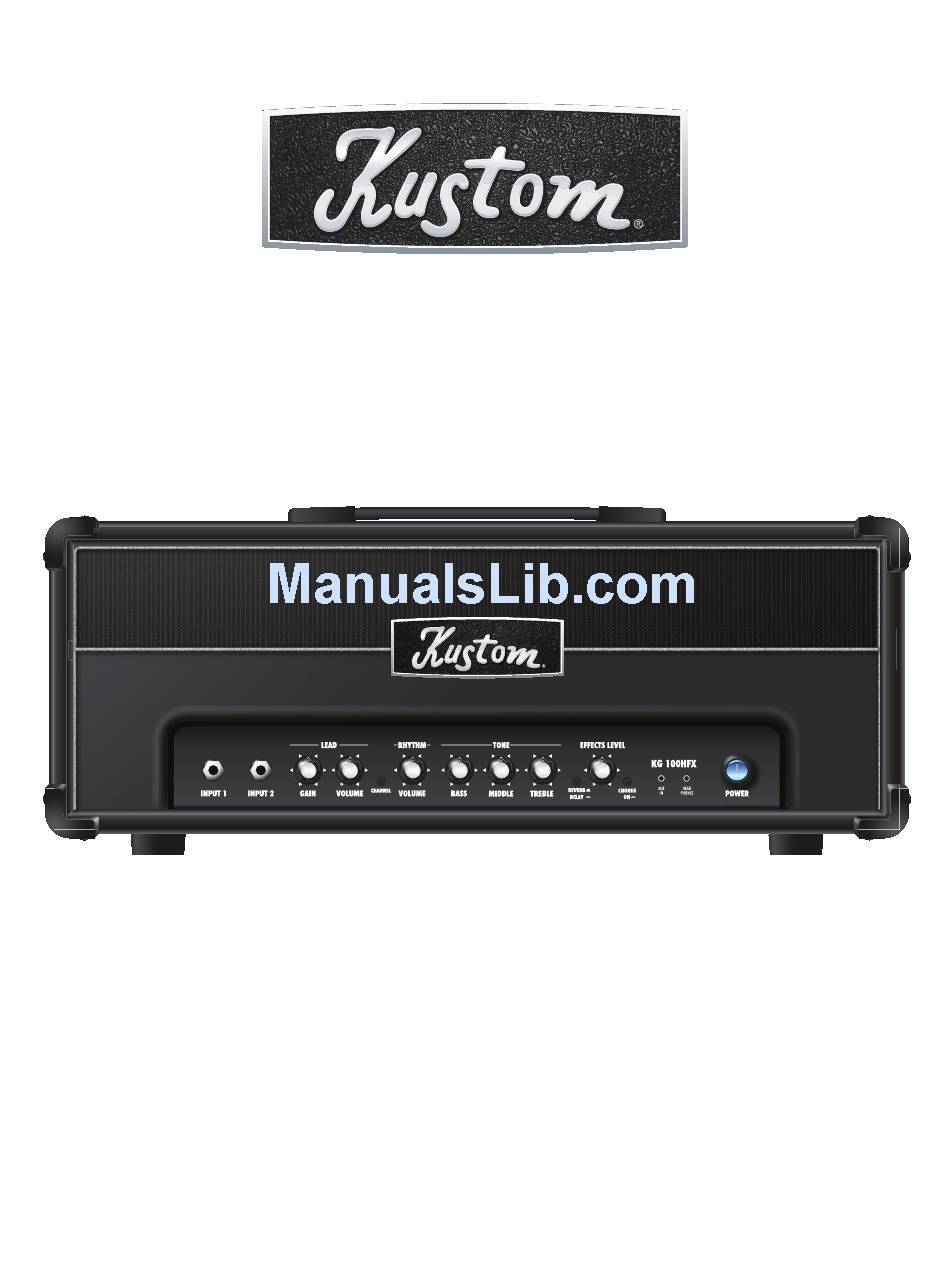

OWNER'S MANUAL
KG100HFX GUITAR AMPLIFIER
Congratulations on the purchase of your new Kustom guitar amplifier.
Your KG Model draws on decades of amp design and manufacturing
experience at Kustom. This model was built from the ground up to offer
world-class tone, useful features and reliable performance. Inside this manual,
you'll find valuable information about the amp's controls and specifications.
Being familiar with its features will help you effectively dial in different tones.
We wish you many years of enjoyment with your Kustom amplifier.
kustom.com
Advertisement
Table of Contents
Related Manuals for Kustom KG100HFX
Summary of Contents for Kustom KG100HFX
- Page 1 Congratulations on the purchase of your new Kustom guitar amplifier. Your KG Model draws on decades of amp design and manufacturing experience at Kustom. This model was built from the ground up to offer world-class tone, useful features and reliable performance. Inside this manual, you’ll find valuable information about the amp’s controls and specifications.
- Page 2 FCC Statements 1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 ENGLISH kustom.com...
- Page 4 FRENCH kustom.com...
- Page 5 KG100HFX Control Panel 13 14 1. Input 1: ¼-inch input jack that is intended for electric guitars but will accept other instruments as well. This input provides the highest gain. It is considered to be the “normal” input. 2. Input 2: This ¼-inch input jack provides 6 dB lower gain so it will allow for a cleaner sound. It can also be useful when using pedals in front of the amp since it provides more headroom.
- Page 6 KG100HFX Back Panel Speaker Output: This is a 1/4-inch speaker jack that is used to connect the KG100HFX to a speaker cabinet. Rating is 4-ohms minimum. For full power, use a 4-ohm load. (The Kustom KG412 speaker cabinet is the ideal match for the KG100HFX both in terms of impedance and tonality.)
- Page 7 KG100HFX Suggested Settings The following suggested settings will help you dial in a variety of popular tones. Keep in mind, these are starting points to get you up and running with your KG amplifier. Feel free to experiment to achieve your own signature sounds.
- Page 8 Kustom KG100HFX Specifications ® Output Power 100 Watts RMS 4 Ohms at 5% THD Input Impedance 470K Hum & Noise -56dB Residual noise, all level controls 0% (minimum) Lead Gain 96 dB Lead Gain and Volume controls full 70 dB...
- Page 9 KG100HFX Signal Flow Diagram kustom.com...
- Page 10 KG100HFX 19 November 2009 kustom.com...
- Page 12 Kustom Amplification, Inc. 3015 Kustom Drive Hebron, Kentucky USA 41048 888-4-KUSTOM (888-458-7866) All specifications are subject to change without prior notice. ©2009 Kustom...
