Chapter 0
Front Cover
Front Cover
OKI OL600/610ex(96-01-19)

Advertisement

Table of Contents
loading

Related Manuals for Oki OL600e

Summary of Contents for Oki OL600e

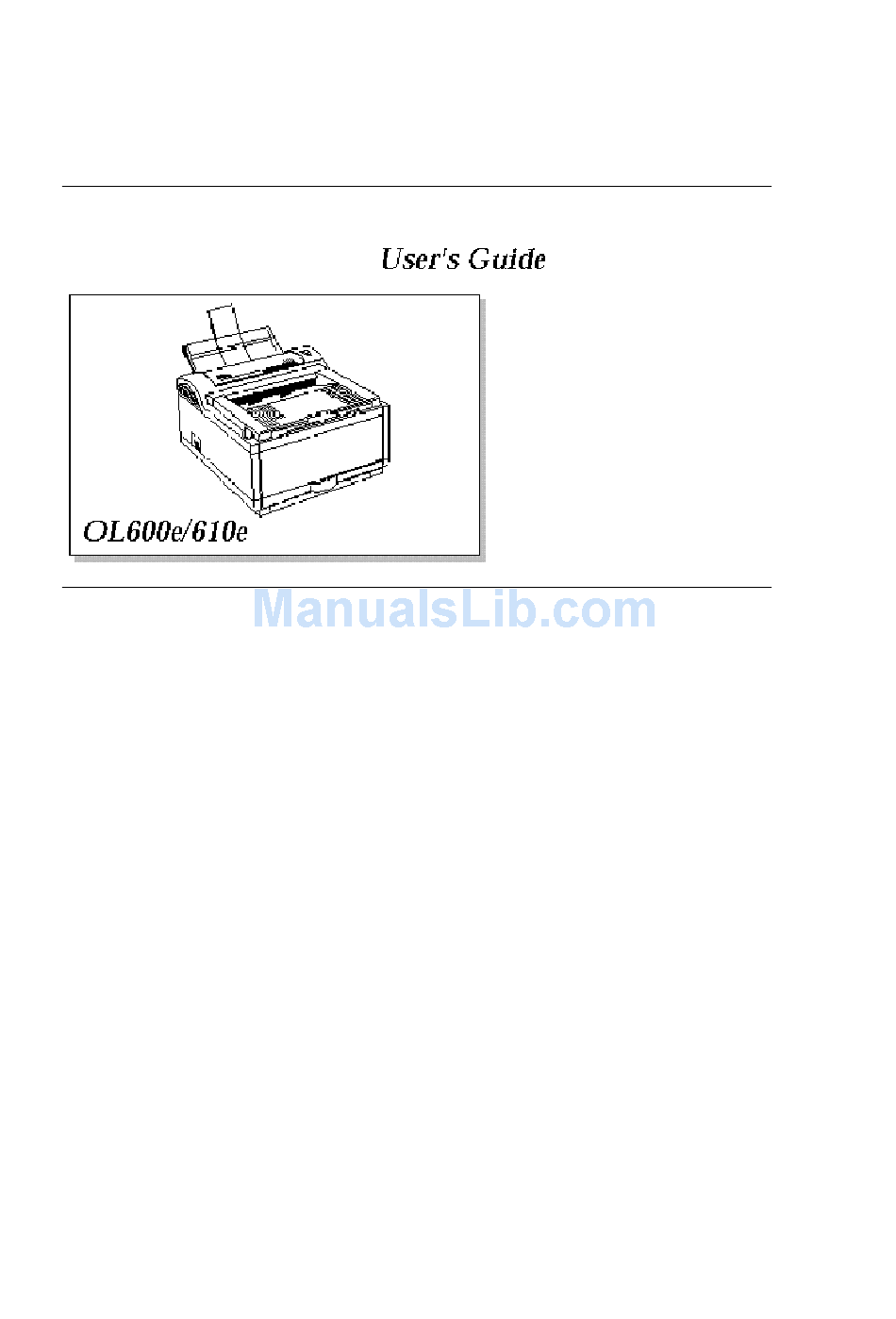

  • Page 1: Chapter 0 Front Cover

    Chapter 0 Front Cover Front Cover OKI OL600/610ex(96-01-19)
  • Page 2 Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. OKI assumes no responsibility for the results of errors beyond its control. OKI also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it.

  • Page 3: Safety Instructions

    *Safety Instructions Safety Instructions Your OKI printer has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the printer: Read the setup instructions in this handbook carefully.
  • Page 4 The printer has been dropped, or the cabinet is damaged. The printer doesnt function normally when youre following the operating instructions. OKI OL600/610ex(96-01-19)

  • Page 5: Chapter 1 Ol610E Features

    35 Intellifont ® and 10 TrueType ® Scalable Fonts plus USPS Postnet 2 MB of memory with Enhanced Memory Management, expandable to 19 MB OL600e Features: HP ® PCL ® 4.5 (HP LaserJet ® IIP+ compatible) 300 DPI plus 600 DPI Class output from Windows ®...

  • Page 6: Check The Contents

    1. OL600/610e Printer (with Image Drum Cartridge installed) 2. Software Diskettes 3. Toner Cartridge 4. Printer Handbook 5. Power Cord 6. Lightproof plastic bag (for storing image drum if printer must be shipped) If anything is missing, contact your dealer for a replacement. OKI OL600/610ex(96-01-19)

  • Page 7: Printer Components - Front View

    Printer Components - Front View Printer Components - Front View OKI OL600/610ex(96-01-19)

  • Page 8: Printer Components - Rear View

    Printer Components - Rear View Printer Components - Rear View OKI OL600/610ex(96-01-19)

  • Page 9: Printer Components - Inside View

    Printer Components - Inside View Printer Components - Inside View OKI OL600/610ex(96-01-19)
  • Page 10 Setup -- Remove the protective sheet Remove the protective sheet 1. Press and open the cover. 2. Remove the image drum. 3. Remove the protective sheet. Note: Be Careful: do not touch the Image Drum's green surface. 4. Replace the image drum. OKI OL600/610ex(96-01-19)
  • Page 11 OKI OL600/610ex(96-01-19)

  • Page 12: Installing Toner

    Installing Toner Installing Toner 1. Remove the sponge and discard. 2. Unwrap the toner cartridge. 3. Shake the toner cartridge to evenly distribute toner. 4. Remove the tape. 5. Insert the toner cartridge. OKI OL600/610ex(96-01-19)
  • Page 13 6. Push the blue lever forward. 7. Close the printer cover. OKI OL600/610ex(96-01-19)

  • Page 14: Choosing Paper

    392°F (200° C) for 0.1 second. Avoid printing on both sides of the paper for more than a few pages, or on preprinted documents that have been in a photocopier. Try paper before you buy it in quantity. OKI OL600/610ex(96-01-19)

  • Page 15: Installing Paper

    Installing Paper Installing Paper 1. Push the paper tray handle. 2. Remove the paper tray. 3. Adjust the paper guides. 4. Insert paper. 5. Re-insert the paper tray. OKI OL600/610ex(96-01-19)
  • Page 16 OKI OL600/610ex(96-01-19)
  • Page 17 - Pages are stacked in the order printed. - Exit bin holds 100 sheets (20 lb. paper) Pull the front exit extender forward. Lift out the metal support bar. Note: Do not change the direction of the paper output during printing. OKI OL600/610ex(96-01-19)

  • Page 18: Rear Paper Exit

    Pull out the rear exit extender until it locks into place. Lift out the metal support bar. To return to top exit, fold in the metal support bar and push the rear exit extender in until it clicks into place. OKI OL600/610ex(96-01-19)

  • Page 19: Manual Feed

    2. Adjust the guides. Insert a sheet of paper until the printer grips it. When using letterhead paper, insert letterhead in first face up. 3. Set your software application for manual feed and paper size, then issue print command. OKI OL600/610ex(96-01-19)

  • Page 20: Transparencies/Adhesive Labels

    Should be specifically made for laser printers or photocopiers. Must be able to withstand 200°C for 0.1 sec. Labels should cover entire carrier sheet. Carrier sheet or adhesive must not be exposed to any part of the printer. OKI OL600/610ex(96-01-19)

  • Page 21: Printing Envelopes

    1. Pull out the rear exit extender until it locks and lift out the support bar. Pull down the manual feed tray and adjust the paper guides. 2. Insert the envelopeflap down and to the left until the printer grips it. 3. Set envelope size and landscape orientation in your software, then issue the print command. OKI OL600/610ex(96-01-19)

  • Page 22: Choosing Envelopes

    Always use rear output. No windows or metal clasps. Paper no heavier than 28 lbs. Smooth even surface. No self-sealing flaps. Seams down the sides, not across the middle. Squared-off flaps that do not cover the print area. OKI OL600/610ex(96-01-19)

  • Page 23: Connecting Your Printer

    The parallel cable should support bi-directional communication and must be shielded and UL and CSA approved. 1. Plug the interface cable into the parallel socket in the printer. 2. Plug the power cord into the printer, then into a grounded outlet. 3. Switch the printer on. The Ready light comes on. OKI OL600/610ex(96-01-19)

  • Page 24: Installing Printer Software

    From Windows ® 1. Click FILE Menu on the Program Manager screen. 2. Click RUN. 3. Type a:setup in the Command Line box. 4. Click OK. Follow the on screen instructions. For more details on specific software features, click HELP. OKI OL600/610ex(96-01-19)

  • Page 25: Chapter 2 Replacing The Toner Cartridge

    Replacing the Toner Cartridge 1. Open the cover and remove the used toner cartridge. 2. Unwrap the new cartridge. 3. Shake the toner cartridge to evenly distribute toner. 4. Peel tape off the bottom. 5. Insert the toner cartridge. OKI OL600/610ex(96-01-19)
  • Page 26 6. When the cartridge is in place, push the blue lock lever forward until it stops. 7. Close the printer cover. OKI OL600/610ex(96-01-19)

  • Page 27: Toner Cartridge Life

    At 5% print density, a toner cartridge will print an average of 2,000 pages. Remember, this is only an average: actual results may vary. The first toner cartridge in your new printer has to fill the drum reservoir and saturate the developing roller with toner. It normally produces about 1,000 pages. OKI OL600/610ex(96-01-19)

  • Page 28: When To Replace The Toner Cartridge

    Replace the toner cartridge when you see the [TONER LOW] message displayed on your screen. Order Part Number 52107201. You can continue printing until print quality deteriorates. Drum and Toner are consumables and as such are subject to a 90-day warranty. OKI OL600/610ex(96-01-19)

  • Page 29: Replacing The Image Drum Cartridge

    1. Open the cover and remove the used image drum cartridge. 2. Unwrap the new Image drum cartridge and remove the protective sheet. 3. Insert the new image drum cartridge. 4. Remove the sponge and discard. 5. Install a new toner cartridge, OKI OL600/610ex(96-01-19)
  • Page 30 6. Reset the Drum Count: Enter the Printer Status Monitor. Click on the [Settings] tab. Under [Reset Item] click [Drum Count], then [Reset]. OKI OL600/610ex(96-01-19)

  • Page 31: Image Drum Cartridge Life

    18,000 pages at seven pages per job and 20,000 pages at fifteen pages per job. These numbers are approximate, since you do not print the same number of pages each time, and environmental conditions and paper type used may vary. OKI OL600/610ex(96-01-19)

  • Page 32: When To Replace The Image Drum Cartridge

    When the drum reaches 90% of its life, the Status Monitor displays [CHG DRUM]. At this point, be sure you have a new drum on hand (Part 56116801). Replace the old one as soon as the print quality becomes faint or starts to deteriorate. OKI OL600/610ex(96-01-19)

  • Page 33: Using A Cleaning Page

    Press the front of the printer to release the manual feed tray. Pull the tray down. Adjust the guides. Insert a clean sheet of 8 x 11 paper. To generate a Cleaning Page, enter the [Printer Status Monitor] and click on the [Settings] tab. Under [Print Item] click [Cleaning Page], then [Print]. OKI OL600/610ex(96-01-19)

  • Page 34: Cleaning The Led Array

    · If you see faded vertical areas or light printing down a page Wipe the LED array gently with the cleaning pad that came with your toner cartridge. You can also use a clean, soft cloth with a small amount of rubbing alcohol on it. OKI OL600/610ex(96-01-19)

  • Page 35: Chapter 3 Clearing Paper Jams - Paper Input Jam

    Slide the paper tray out of the printer. Remove the sheet that did not feed. Check the remaining sheets to make sure they're not wrinkled or stuck together. Replace the tray, then open and close the cover to clear the message. OKI OL600/610ex(96-01-19)

  • Page 36: Paper Feed Jam Or Paper Exit Jam (Top Jam)

    PAPER FEED JAM or PAPER EXIT JAM (top jam) Open the cover. Lift out the image drum. Be careful: the fuser unit at the back of the printer is hot! Remove the jammed paper. Replace the image drum. Close the cover. OKI OL600/610ex(96-01-19)

  • Page 37: Paper Exit Jam (Rear Jam)

    Lift the top cover. Pull the jammed paper out from the back of the printer. Pulling from the front may damage the printer . Remove the image drum and look to make sure the paper is cleared and no pieces are left. Replace the image drum and close the cover. OKI OL600/610ex(96-01-19)

  • Page 38: Print Quality Problems

    Dirty rollers; toner dropped inside Generate Cleaning Page. blotched print. printer or image drum problem. Contact service. Printed page is light Is toner low? Replace toner cartridge. or blurred. Is paper meant for laser printers? Use recommended paper. OKI OL600/610ex(96-01-19)
  • Page 39 Install paper print side down in tray. Moisture in paper. Improper storage. Avoid storing paper in areas of excessive temperature changes and humidity. Store paper in protective wrapping. High humidity. Recommended operating humidity: 20-80% OKI OL600/610ex(96-01-19)

  • Page 40: Software Problems

    60. Adjust software accordingly, or set LINES Per PAGE in the soft control panel to equal lines per page in your software. OKI OL600/610ex(96-01-19)

  • Page 41: Hardware Problems

    Power Save mode is set on to To eliminate warmup delay, change must 0ywarm up conserve energy. The fuser must Power Save setting in the soft before a job is heat up before you can begin printing control panel. printed. the next job. OKI OL600/610ex(96-01-19)

  • Page 42: Chapter 4 What Is A Font

    What is a Font? A font is a set of letters and other characters with a common design and style. The OL600e provides bitmapped fonts, which have a specific height and point size. In addition to bitmapped fonts the OL610e also has resident scaleable fonts, which you can print in any size from 4 points to 999.75 points (1 point =...

  • Page 43: Selecting Fonts In Your Software

    If your software has the appropriate driver, you can specify the font you want, and it will send the necessary commands to the printer. For detailed information on how to select fonts in your software package, refer to your software documentation. OKI OL600/610ex(96-01-19)
  • Page 44 Resident typefaces 600e & 610e Resident typefaces 600e & 610e OL600e Fonts These typefaces are resident in the OL600e, providing 44 bitmapped fonts: · Courier · Dutch · Swiss · Line Printer · USPS PostNet Barcodes. OL610e Fonts The OL610e provides: ·...

  • Page 45: Symbol Sets

    Each font uses symbols from one or more of these sets. Check your software documentation for information on how to select symbol sets and how to insert a symbol into your document. OKI OL600/610ex(96-01-19)

  • Page 46: Chapter 5 Getting Service And Support

    Follow the re-packing instructions on the original box before shipping your printer to one of our four Regional Service Depots. - Allow 30 days for round trip shipping repair via a depot. - Call first to schedule carry-in repairs. - Before shipping your printer, call your nearest service depot for a return authorization number. OKI OL600/610ex(96-01-19)
  • Page 47 851 Feehanville Drive Mt. Prospect, IL 60056 (708) 390-8610 x21 West 1101 Cadillac Court Milpitas, CA 95035 Attn: Field Service Dept. (408) 945-6600 x3322, 3335 Canada 2735 Matheson Blvd. East Unit 1 Mississauga, Ontario L4W4M8 (905) 602-6400 x235 OKI OL600/610ex(96-01-19)
  • Page 48 It is the responsibility of the user to obtain the required shielded cable in order to ensure compliance of this equipment with FCC regulations. Changes or modifications not expressly approved by Okidata may void your authority to operate this device. OKI OL600/610ex(96-01-19)
  • Page 49 This Okidata apparatus complies with the Class B limits for radio interference as specified in the Industry Canadian Radio Interference Regulations. Cet appareil Okidata est conforme aux normes Class B dinterference radio tel que specifier par Industrie Canada dans les Reglements dInterference Radio. OKI OL600/610ex(96-01-19)
  • Page 50 It is the responsibility of the user to obtain the required shielded cable in order to ensure compliance of this equipment with FCC regulations. Changes or modifications not expressly approved by Okidata may void your authority to operate this device. OKI OL600/610ex(96-01-19)
  • Page 51 This Okidata apparatus complies with the Class A limits for radio interference as specified in the Industry Canadian Radio Interference Regulations. Cet Okidata appareil est conforme aux normes Class A dinterference radio tel que specifier par Industrie Canada dans les Reglements dInterference Radio. OKI OL600/610ex(96-01-19)

  • Page 52: Limited Warranty

    Limited Warranty Limited Warranty OKIDATA, Division of Oki America, Inc. (OKIDATA) warrants this Printer to be free from defect in material and workmanship and will remedy any such defect according to the terms of this Limited Warranty. OKIDATA will repair (or at its option, replace) at no charge, any defective component(s) of the Printer for one (1) year from the date of purchase except for the printhead (LED imaging array), which is warranted for a period of five (5) years from date of purchase.
  • Page 53 This Limited Warranty applies to this OKIDATA printer. However, the procedure for obtaining service may vary outside the continental United States. Contact your OKIDATA dealer for such warranty service information. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. OKI OL600/610ex(96-01-19)

  • Page 54: Material Safety Data Sheet

    CAS# 67762-90-7 OSHA PEL 15.0 mg/m3 for total dust ACGIH TLV 10.0 mg/m3 for total dust Note This product is not regulated under Section 313 of SARA, Title III. Physical Data Melting Point: 110°C (230°F) Boiling Point: Not applicable OKI OL600/610ex(96-01-19)
  • Page 55 Hazardous Decomposition Products: Thermal decomposition may result in release of oxides of ca Temperature: Do not expose to temperatures above 200°C (392°F). Incompatibility: Avoid exposure to strong oxidizers. Spill Cleanup and Disposal Spill Cleanup Small Spills 1. Remove sources of ignition. OKI OL600/610ex(96-01-19)
  • Page 56 MSDS. Furthermore, vendor assumes no respon vendee or third person party proximately caused by abnormal use of the product even if reasonable procedures are followed. Additionally, vendee assumes the risk of his use of the product. May-95 OKI OL600/610ex(96-01-19)
