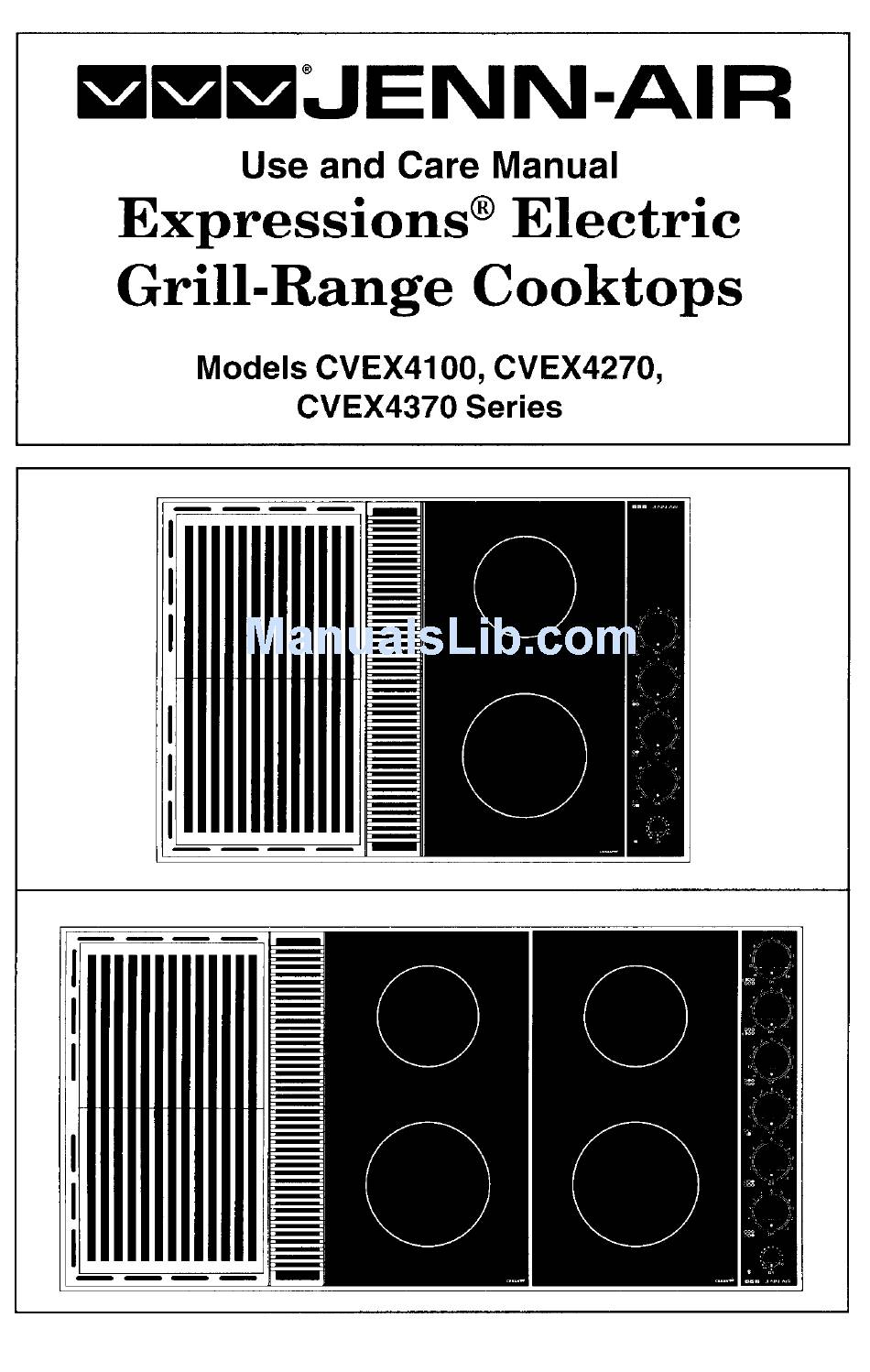

- Page 1 UUU@JENN-AIR Use and Care Manual Expressions@ Electric Grill-Range Cooktops Models CVEX4100, CVEX4270, CVEX4370 Series...
-
Page 2: Safety Precautions
Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to an authorized Jenn-Air Service Contractor. Flammable materials should not be stored near surface units. Do not use water on grease fires. Smother fire or flame or use dry chemical or foam-type extinguisher. - Page 3 18. Do not cook on glass-ceramic cooking surface if the cooktop is broken. Cleaning solutions and spillovers may penetrate the broken cooktop and create a shock hazard. Contact an authorized Jenn-Air Service Contractor. Clean glass-ceramic cooktops with caution. If wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burns.
- Page 4 Should you have any questions about using your Jenn-Air cooktop or need a use and Be sure to provide the model care manual for your cooktop cartridge, write to us.
- Page 5 Ventilation Systenb The built-in ventilation system removes cooking vapors, odors and smoke from foods prepared on the cooktop, grill and grill accessories. Regular use of this system will insure a more comfortable and less humid kitchen which is free of heavy cooking odors and fumes that normally create a frequent need for cleaning and redecorating.
-
Page 6: To Set Controls
The variable controls for the cooktop cartridges and grill element provide flexiblity in setting selection. To Set Controls 0 Since the controls are a push-turn type, they must be pushed down before turning. To set (from the OFF position), push down on control knob and turn in ejther direction for desired setting. -
Page 7: Installation
1 Installation Cooktop cartridge options include conventional coil, halogen, or radiant To Install Cartridges 1. If the grill grates, element, and/or grill liner pans are in place, remove before installing a cooktop cartridge. Clean basin pan of any grease accumulation. (See page 12 for cleaning recommendations.) 2. - Page 8 The grill accessory consists of two black grill grates, a grill element and a grill liner pan. To Install Grill 1. Before installing grill components, be certain surface controls are OFF. 2. Place the grill liner pan into an empty basin pan with the opening next to the terminal block.
- Page 9 ( Using the Grill 1 0 Before the first use, wash your new grill grates in hot soapy water, rinse and dry. Then “season” the surface by wiping on a thin coating of cooking oil. Remove excess oil by wiping again with another paper towel. This procedure should be repeated when either: a) cleaning in the dishwasher since the detergent may remove seasoning or b) anytime a sugar-based marinade (for example, barbecue sauce) is going to be...
-
Page 10: Grill Guide
1 Grill Guide / Preheat grill on Hi, 5 minutes. for best flavor Type Setting Cooking Time Procedure Steak (% - V4”) Rare 10 to 12 minutes Turn after 5 to 6 minutes. Medium 16 to 21 minutes Turn after 8 to 11 minutes. Turn after 11 to 14 minutes. - Page 11 [Grilling With your Jenn-Air grill and accessories, literally any food you’ve considered “at its best” when prepared outdoors can now be prepared indoors with less fuss and great flavor. The following suggestions are good rules to follow and will increase your enjoyment of the equipment.
-
Page 12: Cleaning The Grill
1 Cleaning the Grill 1 Be sure the grill is cool and controls are in the OFF position. Grill Grates These are made from cast aluminum and are coated with the Excalibur@ nonstick finish. 0 After the grill grates have cooled, wipe off grates with a paper towel. Wash cool grates (DO NOT IMMERSE HOT GRILL GRATES... -
Page 13: Stainless Steel Trim
The knobs on the control panel can be removed with the controls in the OFF position. Pull each knob straight from the shaft. Wash knobs in warm soapy water or dishwasher; do not use abrasive cleaners or materials. To replace each knob, match flat part of knob opening with the spring on the shaft, returning to the OFF position. - Page 14 Accessories Griddle Grill Accessory Grill Covers A set of two grill covers may Model A0330 Model A031 0 be purchased to cover Grill accessory includes Self-draining griddle second (optional) grill grill liner pan, Energy- makes many favorite accessory. Saver grill element, and foods easier fix.
-
Page 15: Cooktop Cartridges
AH151 W-White Radiant Rated for 240 volts AR1 41 B-Black AR1 41 W-White Jenn-Air’s ventilation system is designed to capture both cooking fumes and smoke from any place on the grill surface. If the system does not, these are some ducting installation... -
Page 16: If You Need Service
Refer to WARRANTY for further information of owner’s responsibilities for warranty service. 0 if the dealer or service company cannot resolve the problem, write to Jenn-Air Customer Assistance, c/o Maytag Customer Service, P.O. Box 2370, Cleveland, TN 37320-2370, 1-800-688-l 100 (U.S.
