Jenn-Air JGD3430W Specifications

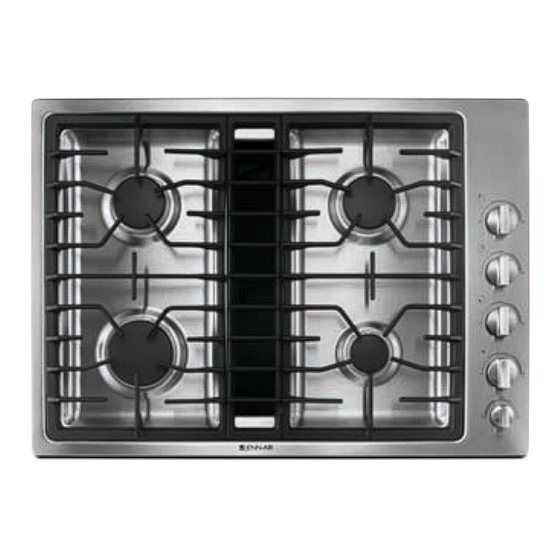

Jenn-Air 30" GAS DOWnDrAFT COOKTOP
®
Key FeATureS
JX3™ downdraft ventilation system
with 3-speed fan uses proximity
ventilation to capture smoke, steam
and odors at the cooking surface with
425 CFM.
New downdraft cooktop design
is easy to clean and features a vertically-
mounted blower system. All cooktop
components are designed to work
together for the best-in-class cooking
performance.
Optional duct-free kit (not included)
allows the downdraft cooktop to be
installed in any home – even a high-rise
or condominium. An indicator specifies
when filter needs to be changed
(one to two times per year).
JGD3430W
inDuSTry'S BeST PerFOrMinG VenTilATiOn SySTeM*

SPeCiFiCATiOnS

• 4 Sealed Burners
• Optional Duct-Free Kit (not included)
• JX3™ Downdraft Ventilation System with 3-Speed Fan
• 425 CFM Blower
• New Downdraft Cooktop Design
• 17,000 BTU Ultra-High Output Burner
• 12,500 BTU Burner
• 9,200 BTU Burner
• 5,000 BTU Burner
• Electronic Ignition and Flame-Sensing™ Re-ignition
• Infinite Burner Control Settings
• Easy-to-Clean Short Plenum
• Dishwasher-Safe Air Grill
• Dishwasher-Safe Burner Grates and Caps
• Color-Coordinating Cast Metal Knobs
• Dishwasher-Safe Knobs
• Porcelain-on-Cast-Iron Continuous Grates
• Porcelain-Enamel/Stainless Steel Surface
• Convertible to LP (kit included)
STyle OPTiOnS
Euro-Style Stainless – JGD3430WS
Black – JGD3430WB
White – JGD3430WW

OPTiOnAl ACCeSSOrieS

Duct-Free Kit – JDA7000WX
Duct-Free Filter – JDA8000WX
*Compared to hoods and downdraft cooktops.
