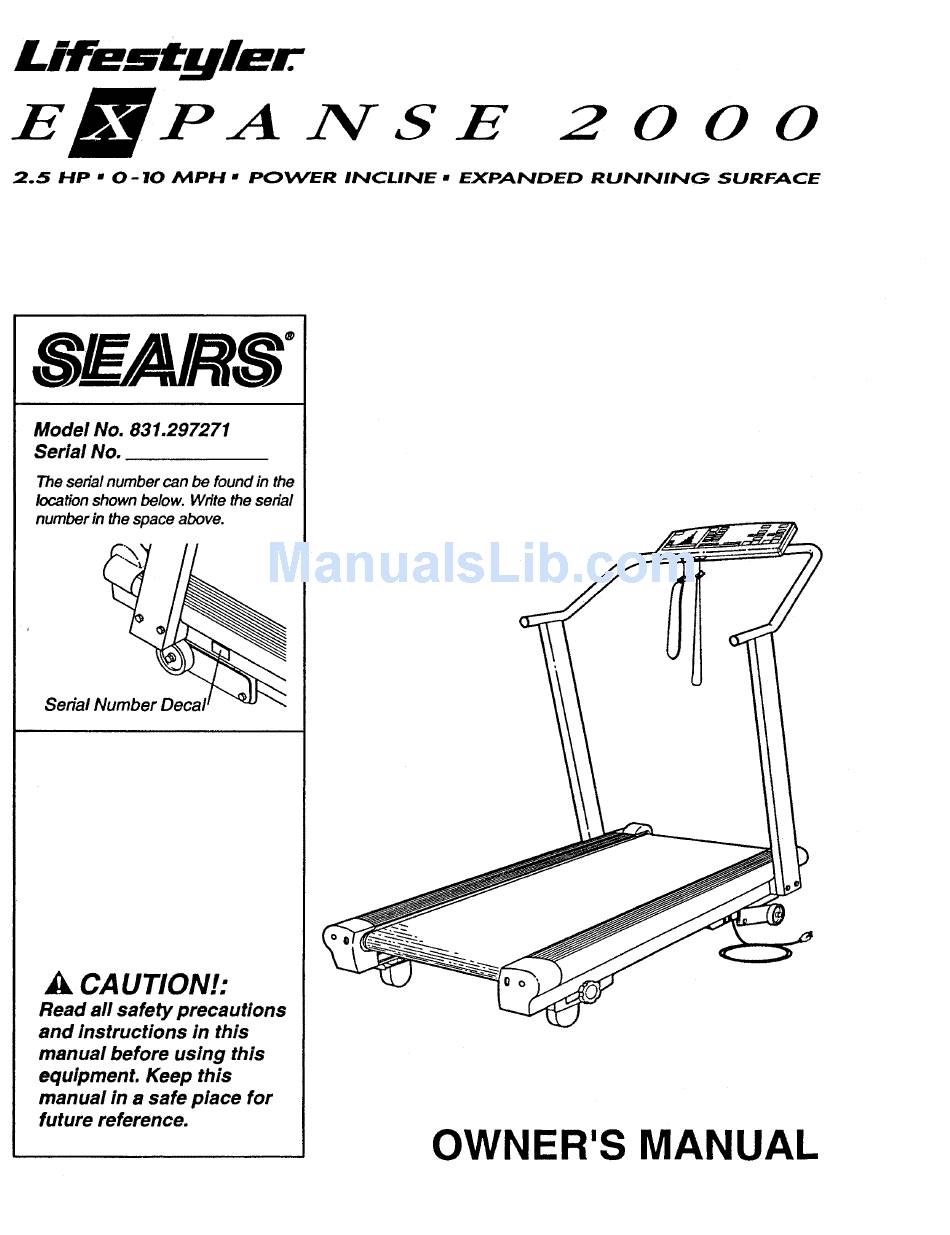

PANS_E
2000
2.5
HP
" 0"
10
MPH
" POWER
INCLINE
" EXPANDED
RUNNING
SURFACE
Model No. 831.297271
Serial No.
The serial number can be found in the
location shown below. Write the serial
number in the space above.
Serial Number
_k CAUTION!:
Read all safety precautions
and instructions
in this
manual before using this
equipment.
Keep this
manual
in a safe place for
future reference.
OWNER'S MANUAL
Advertisement
Related Manuals for LIFESTYLER Expance 2000 831.297271
Summary of Contents for LIFESTYLER Expance 2000 831.297271
- Page 1 PANS_E 2000 " 0" " POWER INCLINE " EXPANDED RUNNING SURFACE Model No. 831.297271 Serial No. The serial number can be found in the location shown below. Write the serial number in the space above. Serial Number _k CAUTION!: Read all safety precautions and instructions in this manual before using this...
- Page 2 IMPORTANT SAFETY PRECAUTIONS I WARNING: To reduce the risk of burns, fire, electric shock or Injury to persons, read the following Important safety precautions and Information before operating the treadmill. Position the treadmill on a level surface, with at least 8 feet of clearance behind the tread- mill.
- Page 3 Back Cover BEFORE YOU BEGIN Thank you for selecting the SEARS LIFESTYLER _ EXPANSE 2000 treadmill. The EXPANSE 2000 treadmill blends advanced technology with innovative design to let you enjoy an excellent form of cardio- vascular exercise in the convenience and privacy of your home. For your safety and benefit, read this manual carefully before using the treadmill.
-
Page 4: Assembly
ASSEMBLY Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed, TOOLS REQUIRED FOR ASSEMBLY: An 8" adjustable wrench (not Included). 1. Carefully raise the right Upright (3) to a vertical position. -
Page 5: Operation And Adjustment
OPERATION AND ADJUSTMENT PLUGGING IN THE POWER CORD This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. - Page 6 DIAGRAM OF THE CONSOLE The heart of the treadmill is the state-of-the-art programmable console. The console offers both manu- al and program operation, and features an array of independent LED displays to give you continuous exercise feedback. Please read these Instructions carefully before...
- Page 7 Press the SPEED increase button until the walking belt begins to move at slow speed. When the walk- ing belt begins to move, hold the handrails and step carefully onto the walking belt. Change the speed of the walking belt as desired by pressing the SPEED buttons.
- Page 8 Next, set the length of time you want the program to last by pressing the TIME buttons. The length of time will be displayed in the TIME display. Each time one of the buttons is pressed, the length of time will change by twenty seconds.
- Page 9 OPERATING THE MONITOR MODES PULSE: To use the pulse mode of the console, the pulse earclip must be plugged into the pulse jack. Attach the earclip to your left ear lobe and slide the metal clothes clip onto your collar. When your pulse is detected, the PULSE indicator...
- Page 10 TROUBLE-SHOOTING AND STORAGE Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies to your treadmill and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m.
- Page 11 If the walking belt is overtightened, treadmill performance Rear Roller may decrease and the walking belt may be permanently damaged. Remove the safety key and UNPLUG Adjustment Bolts POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn.
- Page 12 b° After the treadmill has been operated for 600 miles, the service indicator will again light. When the service indicator lights, the tension of the walking belt should be 0_ecked (see 4. c. above). In addition, a service technician should check the amp draw and the motor brushes. For service, see the back cover of the owner's manual.
- Page 13 CONDITIONING GUIDELINES The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results. kWARNING" Before beginning this or any exercise program, consult your physician. This Is especially Important for Individuals over the age of 35 or Individuals with pre-existing health problems.
-
Page 14: Part List
PART LISTmModel No. 831.297271 Rev. 12/93 Part Part Qty. Description Qty. Description 014086 Upright Washer 115051 Right Frame Rail 013485 3/8" x 4 1/2" Upright Bolt 109372 Bracket Screw 114375 Upright 012152 Switch 114005 Handrail Endcap 109371 Incline Optic Switch Bracket 114371 Handrail 102955... -
Page 15: Exploded Drawing
EXPLODED DRAWING--Model No. 831.297271 aev. 1 2/93 23 24 41 60... - Page 16 ORDERING REPLACEMENT PARTS Each TREADMILL has its own MODEL NUMBER. Always mention this MODEL NUMBER when requesting service or repair parts for your TREADMILL. All parts listed herein can be ordered through SEARS, ROEBUCK AND CO. SERVICE CENTERS most SEARS RETAIL STORES.
