FPG
OPERATING & SERVICE MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunnomatic.com
36783.0000A 05/04 ©2004 Bunn-O-Matic Corporation

Advertisement

loading

Related Manuals for Bunn FPG

Summary of Contents for Bunn FPG

  • Page 1 OPERATING & SERVICE MANUAL BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 36783.0000A 05/04 ©2004 Bunn-O-Matic Corporation...

  • Page 2: Table Of Contents

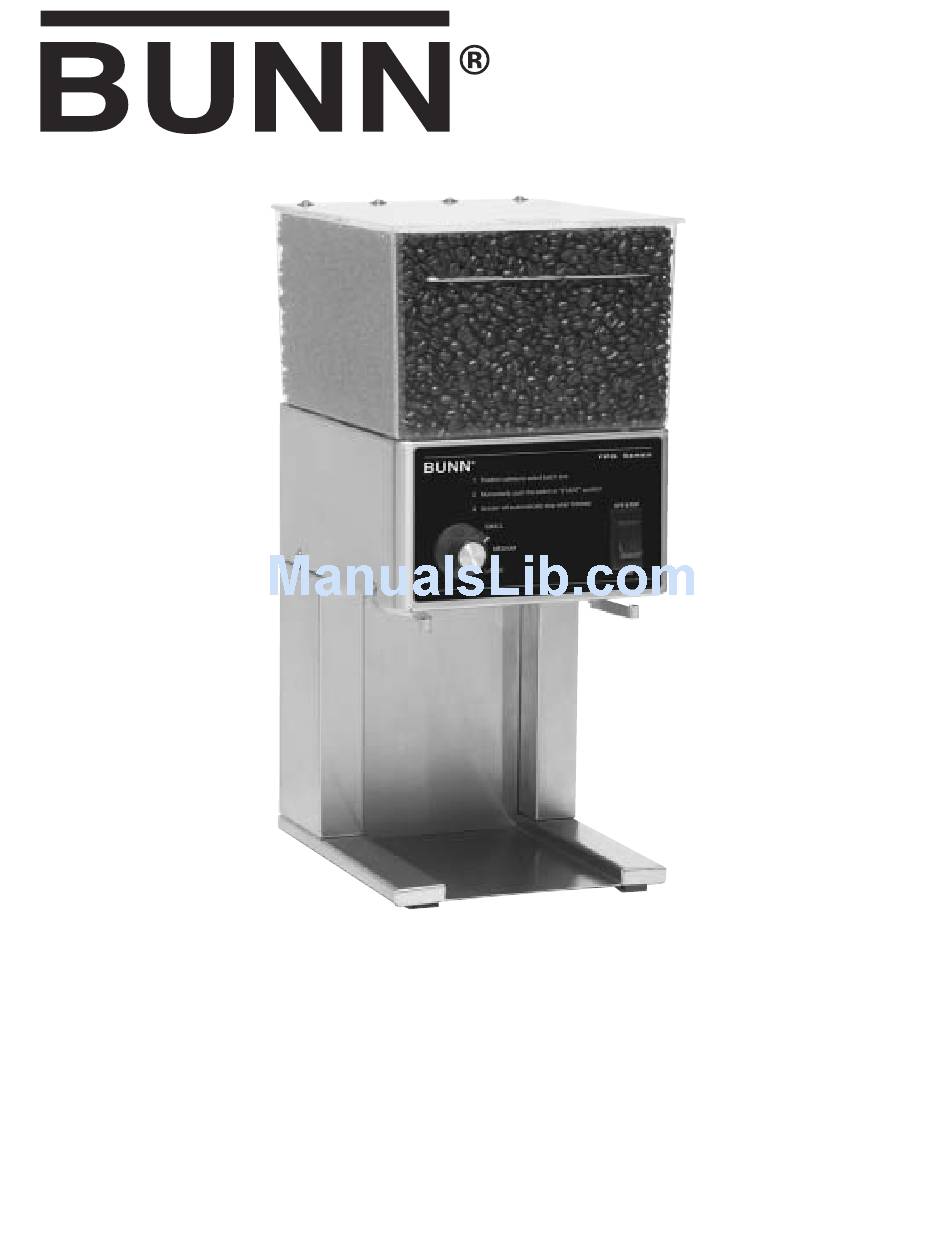

    INTRODUCTION The FPG will store up to six pounds of whole bean coffee and grind it to a preset grind and amount into an awaiting funnel and filter or French Press from most commercial drip coffee brewers. The equipment is only for indoor use on a sturdy counter or shelf.

  • Page 3: User Notices

    USER NOTICES Carefully read and follow all notices on the grinder and in this manual. They were written for your protection. All notices on the grinder are to be kept in good condition. Replace any unreadable or damaged labels #05876.0000 #20545.0000 ELECTRICAL REQUIREMENTS The grinder has an attached cordset and requires 2-wire, grounded service rated 120 volts ac, 15 amp, single...

  • Page 4: Cleaning

    The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Care should be taken not to scratch the hopper or windows with any abrasive material. Regular cleaning will keep your grinder looking new for years.

  • Page 5: Initial Set-Up

    INITIAL SET-UP/ADJUSTMENTS The grind can be set from fine to very coarse. The grind may be adjusted for use in most commercial coffee brewers. The following procedures should be used to make adjustments. NOTE - A change in the burr adjustment will also change the amount dispensed. Any adjustment to the burrs should be followed by an adjustment of the timer dials.

  • Page 6: Wiring Schematics

    WIRING SCHEMATICS SCHEMATIC WIRING DIAGRAM GREEN WHI/BLK WHI/BLK SELECT SW. WHI/BLU WHI/BLU TIMER WHI/BRN WHI/BRN WHI/BRN WHI/BRN WHI/BLU WHI/BLU MOTOR 120 VOLTS AC 2 WIRE SINGLE PHASE 60 HZ 36783 051104...
  • Page 7 SCHEMATIC WIRING DIAGRAM FPGA GREEN WHI/BLK SELECT SW. WHI/BLU TIMER WHI/BRN WHI/BRN WHI/BRN WHI/BLU WHI/BLU MOTOR 230 VOLTS AC 2 WIRE SINGLE PHASE 50/60 HZ 36783 051104...
