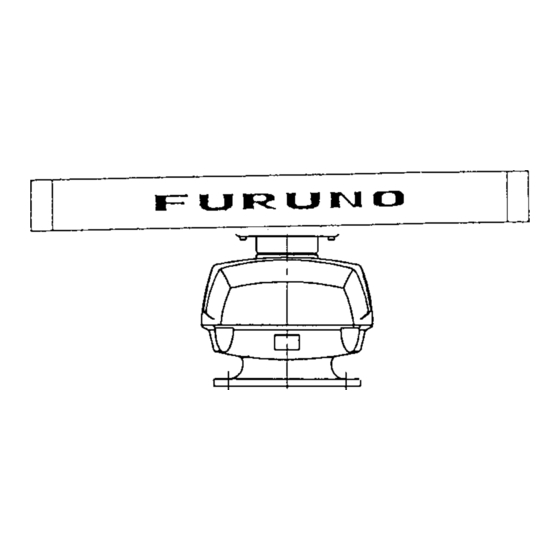

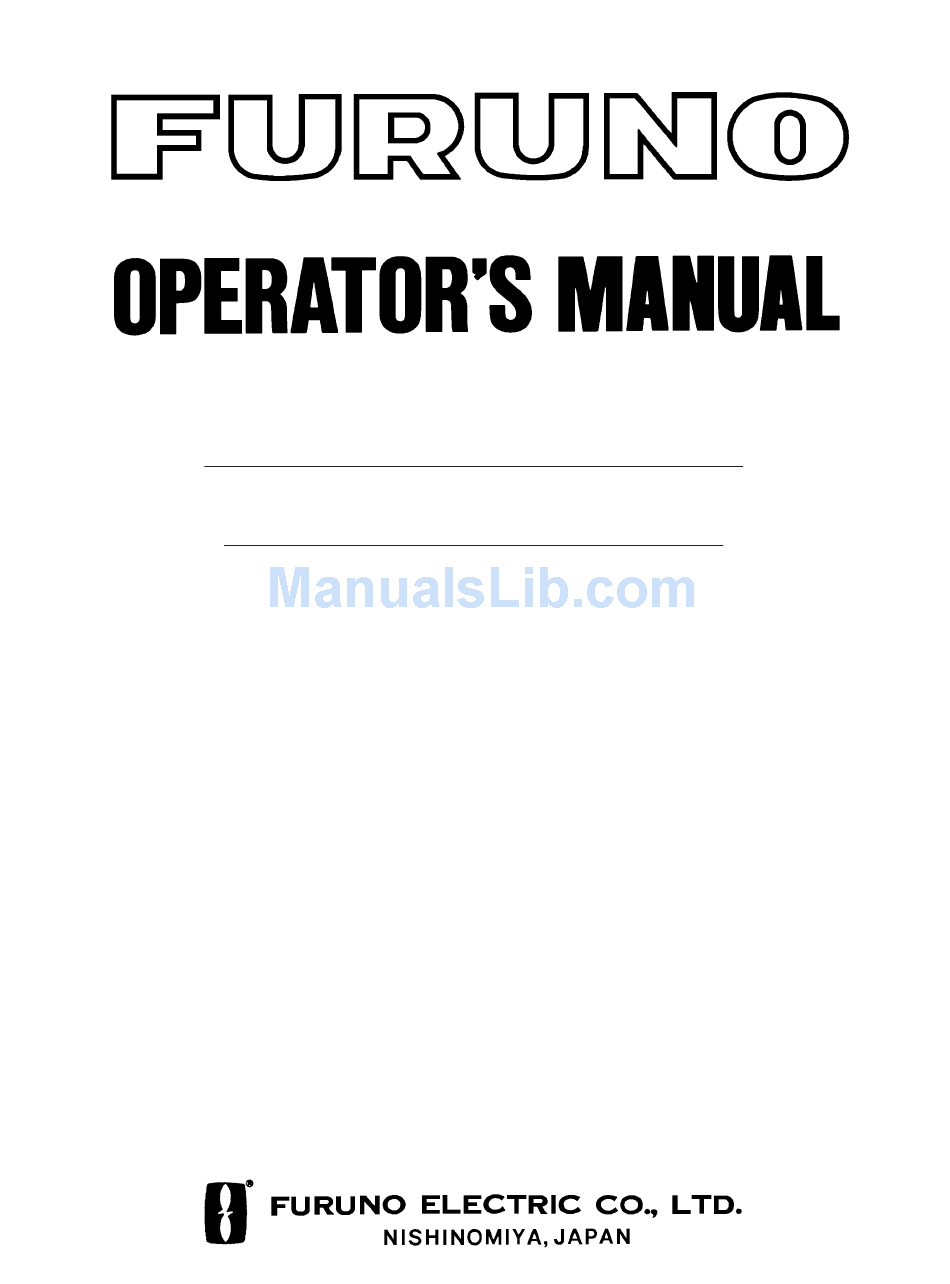

- Page 1 MARINE RADAR 1932 MARK-2/1942 MARK-2 MODEL...
- Page 3 Note: If the scanner unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of scanner revolution. This is possible—Ask your FURUNO representative or dealer to provide this feature.
- Page 4 Two warning labels are attached to the display unit and scanner unit. Do not remove these labels. If labels are peeling off or are illegible, contact a FURUNO agent or dealer. <Display Unit> WARNING Name: Warning Label (1) To avoid electrical shock, do not...
- Page 5 COMPLIANCE WITH R&TTE DIRECTIVE 1999/5/EC This radar complies with the R&TTE Directive 1999/5/EC. In accordance with Article 6-3 of this directive, FURUNO intends to put this radar on the market of the following countries in EU as well other markets.
-
Page 6: Foreword
Radar. We are confident you will see why the FURUNO name has become synony- mous with quality and reliability. For over 50 years FURUNO Electric Com- pany has enjoyed an enviable reputation for innovative and dependable marine electron- ics equipment. This dedication to excellence is furthered by our extensive global network of agents and dealers. -
Page 7: Table Of Contents
FOREWORD ... iii MENU TREE ... v TABLE OF CONTENTS BY INDICATION, MARKER ... vi SYSTEM CONFIGURATION ... vii 1. PRINCIPLE OF OPERATION 1.1 What is Radar?... 1-1 1.2 How Ships Determined Position Before Radar ... 1-1 1.3 How Radar Determines Range ... 1-1 1.4 How Radar Determines Bearing... -
Page 8: Menu Tree
MENU KEY RINGS (Off, 1, 2, 3, max) EBL OFFSET (Off, On) SHIFT (Off, On) ZOOM (Off, On) MODE (HU, CU, NU, TM) DISP DATA ECHO TRAIL (Off, On) ECHO STRTCH (Off, ES1, ES2) ARP-10 MENU OTHER MENU : Defaut settings MENU TREE 1. -
Page 9: Table Of Contents By Indication, Marker
Echo trail elapsed time (P.3-3) Heading (requires heading data) Heading marker (P.2-5) Range (P.2-3) . 125 0625 Range ring interval (P.2-3) Pulselength (P.2-3) Display mode (P.3-1) Cursor (P.2-5, 2-6) Guard zone area (P.3-5) EBL1 (P.2-6) VRM1 (P.2-5) A/C AUTO (P.2-4) AUTO EBL1 bearing (P.2-6) 345.6 R... -
Page 10: System Configuration
Scanner Unit Display Unit RDP-118 Auto Plotter ARP-10 (24 rpm only) 12 VDC: 24/32 VDC: 5A 12-32 VDC MODEL 1932 MARK-2 XN10A-RSB-0070-064 (24 rpm) XN10A-RSB-0073-064 (48 rpm) MODEL 1942 MARK-2 XN12A-RSB-0070-059 (24 rpm) XN12A-RSB-0073-059 (48 rpm) Radar Plotter RP-110 Remote Display... -
Page 11: Principle Of Operation
1. PRINCIPLE OF OPERATION 1.1 What is Radar? The term “RADAR” is an acronym meaning Radio Detection And Ranging. Although the basic principles of radar were developed dur- ing World War II, echoes as an aid to naviga- tion is not a new development. 1.2 How Ships Determined Position Before Radar Before the invention of radar, when running... - Page 12 Own ship (radar) (A) Bird's eye view of situation Targets Own ship in center (B) Radar picture of (A) Figure 1-1 How radar works Heading marker Range and bearing of a target, relative to own ship, are readable on the PPI.
-
Page 13: Basic Operation
2.1 Control Description Requires Auto Plotter ARP-10 Brief press: Displays the data of target selected with the cursor. Long press: Terminates plotting of the target selected with the cursor. Opens/closes menus. Selects EBL1/EBL2/VRM1/VRM2. Control: Adjusts sensitivity. Switch: Temporarily erases heading marker (and north marker if displayed). -
Page 14: Turning The Radar On/Off
2.2 Turning the Radar On/Off Press the [POWER] key to turn the radar on or off. The control panel lights and a timer displays the time remaining for warm up of the mag- netron (the device which produces radar pulses), counting down from 1:30 to 0:01. 2.3 Transmitting After the power is turned on and the magne- tron has warmed up, STBY (Stand-By) ap-... -
Page 15: Selecting The Range
Note1: Availability of a particular display item depends on incoming data. Note2: When Range to W aypoint reaches 0.1 nm, the WPT marker jumps to dead ahead even though a difference may exist between heading and BRG to WPT. Note3: When cross track error exceeds 1 nm on either side, the XTE mark starts blinking. -
Page 16: Adjusting The A/C Rain Control (Reducing Rain Clutter)
Adjusting the A/C SEA control The proper setting of theA/C SEA should be such that the clutter is broken up into small dots, and small targets become distinguish- able. If the control is set too low , targets will be hidden in the clutter , while if it is set too high, both sea clutter and targets will disappear from the display . -
Page 17: Erasing The Heading Marker, North Marker
2.10 Erasing the Heading Marker, North Marker The heading marker or north marker (avail- able with gyrocompass connection) may oc- casionally mask a target. To view the target, you can temporarily erase the heading marker and north marker by pressing and holding down the [GAIN (HM OFF)] control. -
Page 18: Measuring The Bearing
2.12 Measuring the Bearing There are two ways to measure the bearing to a target: by the cursor , and by the EBL (Electronic Bearing Line). Measuring bearing by cursor Operate the omnipad to bisect the target with the cursor intersection. The bearing to the target appears at the bottom of the display. -
Page 19: Offcentering The Picture
6.0 NM EBL1 origin (initial position of target) Target moved here. EBL1 70.0° R 6.0 NM bearing Figure 2-9 Predicting collision course by using the offset EBL Measuring range and bearing between two targets The procedure which follows shows how to measure the range and bearing between tar- get “A”... -
Page 20: Zoom
2.15 Zoom The zoom feature allows you to double the size of the area between your vessel and any location within the current range to take a closer look at an area of interest. 1. Select location with the cursor. 2. -
Page 21: Menu Operation
3.1 Basic Menu Operation The menu mostly contains less-often used functions which once preset do not require regular adjustment. To open or close the menu, press the [MENU] key . You can select items and options from the menu with the omnipad. -
Page 22: Magnifying Long Range Echoes (Echo Stretch)
North up North is at the top of the display and the head- ing marker moves with ship’ s heading. This mode is useful for determining ship’ s posi- tion and as a navigation monitor on a nauti- cal chart. The picture is stabilized against yaw of vessel, thereby reducing smear of target echoes. -
Page 23: Suppressing Radar Interference
Fixed time trail 1. When the elapsed time clock counts up to the trail time selected, the elapsed time display freezes. 2. The oldest portions of trails are erased so only the latest trail, equal in length to the trail time selected, is shown. 3. -
Page 24: Selecting Pulsewidth
3. Select “6. Int Reject.” 4. Select level desired by operating the omnipad. 5. Press the [ACQ/ENTER] key. 6. Press the [MENU] key to close the menu. IR1, IR2 or IR3 appears at the bottom right corner on the display when the interference rejection circuit is turned on. -
Page 25: Watchman
3. Operate the omnipad to set the cursor on point C (or D). See Figure 3-8 (3). 4. Press the [GUARD] key . The asterisk dis- appears. See Figure 3-8 (4). Asterisk blinking Guard zone to set Drag cursor here. (1) Mentally create (2) Drag cursor to the guard zone to set. -
Page 26: Displaying Navigation Data
Turning on watchman 1. Create a guard zone (usually 360 de- grees) with the guard alarm function. 2. Press the [MENU] key. 3. Select “OTHERS MENU.” 4. Press the [ACQ/ENTER] key. 5. Select “15. Watchman.” 6. Operate the omnipad to select watchman rest period;... -
Page 27: Other Menu Description
3.10 OTHER MENU Description The table below summarizes the OTHER menu. Table 3-2 OTHER MENU Description l l i r l i a l i a “ t i s “ t l l a *Note: Level 1 and 2 are same brilliance while the menu is displayed.The brilliance changes after the menu is erased. -
Page 28: Function Controls
When the scanner is installed at a close dis- TUNE tance in front of the wheelhouse the radar should be set not to transmit within that area, WATCH to prevent microwave hazard. Ask your FURUNO representative ordealer to provide OTHER this feature. MENU MARK VECTOR... -
Page 29: False Echoes
Occasionally false echoes appear on the screen at positions where there is no target. In some cases the ef f ects can be reduced or eliminated. The operator should familiarize himself or herself with the appearance and effects of these false echoes, so as not to confuse them with echoes from legitimate contacts. -
Page 30: Indirect Echoes
4.3 Indirect Echoes Indirect echoes may be returned from either a passing ship or returned from a reflecting surface on your own ship, for example, a stack. In both cases, the echo will return from a legitimate contact to the scanner by the same indirect path. -
Page 31: Sart (Search And Rescue Transponder)
4.5 SART (Search and Rescue Transponder) A Search and Rescue Transponder (SART) may be triggered by any X-Band (3 cm) ra- dar within a range of approximately 8 n.miles. Each radar pulse received causes it to trans- mit a response which is swept repetitively across the complete radar frequency band. - Page 32 This page is intentionally left blank.
-
Page 33: Maintenance & Troubleshooting
5. MAINTENANCE & TROUBLESHOOTING This chapter tells you how to keep your ra- dar in good working order. Before reviewing this chapter please read the safety informa- tion which follows. DANGER Turn off the power before performing any maintenance or troubleshooting procedure. -
Page 34: Troubleshooting
5.3 Troubleshooting Table 5-2 contains simple troubleshooting procedures which you can follow to try to re- store normal operation. If you cannot restore normal operation, do not attempt to check inside any unit of the radar system. Any re- pair work is best left to a qualified technician. Table 5-2 Troubleshooting table . -
Page 35: Self Test
5.4 Self Test The self test facility checks the keyboard, ROM and RAM for proper operation. 1. Press the [MENU] key. 2. Select “OTHER MENU”. 3. Select “23. Self Test” and press the [ACQ/ ENTER] key. The following display appears. [Self Test] Key tset: Press each key and check on-screen indication... - Page 36 This page is intentionally left blank.
-
Page 37: Operation Of Arp-10
6. OPERATION OF ARP-10 (OPTION) WARNING WARNING No one navigational aid should be relied upon for the safety of vessel and crew. The navigator has the responsibility to check all aids available to confirm position. Electronic aids are not a substitute for basic navigational principles and common sense. -
Page 38: General
6.1 General The Auto Plotter ARP-10 is an optional cir- cuit board which is accommodated in the dis- play unit of this radar (24 rpm only) radars. It requires heading data to function. The Auto Plotter permits manual or automatic acquisition and automatic tracking of up to 10 radar targets. - Page 39 3. Select “ARP-10 MENU.” 4. Press the [ACQ/ENTER] key to display the ARP menu. [ ARP MENU ] Select item by omnipad and press ENTER key. Display 2 . All Cancel 3 . Vector Ref True 4 . Vector Length 30S IM 3M 6M 15M 5 .
-
Page 40: Acquiring Targets
6.3 Acquiring Targets Manual acquisition Follow the steps below to manually acquire a target. Up to 10 targets can be manually acquired. 1. Place the cursor (+) on a target of inter- est by operating the omnipad. 2. Press the [ACQ/ENTER] key. The plot symbol changes its shape accord- ing to the status as below. -
Page 41: Displaying Target Data
Follow the steps shown below to activate the auto acquisition area. 1. Open the “ARP-10 MENU.” 2. Select “8. Auto ACQ.” 3. Select “On.” 4. Press the [ACQ/ENTER] key. 5. Press the [MENU] key to close the menu. Terminating Tracking of Targets When the Auto Plotter has acquired 10 tar- gets, no more acquisition occurs unless tar- gets are lost. -
Page 42: Mode And Length Of Vectors
6.5 Mode and Length of Vectors True or relative vector (vector mode) Target vectors are displayed relative to own ships reading (Relative) or with reference to North (True). Own ship does not have a vec- tor in relative mode. Vector length From the ARP-10 MENU, Vector Length can be set to 30 seconds, 1, 3, 6, 15 or 30 min- utes and the selected vector time is indicated... - Page 43 CPA/TCPA alarm ranges must be set up prop- erly taking into consideration the size, ton- nage, speed, turning performance and other characteristics of own ship. Follow the steps shown below to set the CP A / TCPA alarm ranges: 1. Open the “ARP-10 MENU.” 2.
- Page 44 This page is intentionally left blank.
-
Page 45: Specifications
SPECIFICATIONS OF MARINE RADAR MODEL 1932/1942 MARK-2 1. GENERAL (1) Indication System PPI Daylight display, raster scan, 8 tones in monochrome (2) Range, Pulselength (PL) & Pulse Repetition Rate (PRR) 0.125 0.25 0.08 Ps 2100 Hz MP 1200 Hz 600 Hz *550 Hz on 48 nm range or more Maximum Range;... - Page 46 Tx pulselength 0.08 μs and 0.3 μs: 25 MHz (8) Bandwidth Tx pulselength 0.8 μs: 3 MHz (9) Duplexer Circulator with diode limiter 4. DISPLAY UNIT (1) Indication System PPI Daylight display, raster scan, 8 tones in monochrome (2) Picture Tube 10 inch rectangular monochrome CRT effective display area more than 150 mm (3) Range, Range Interval, Number of Rings...
- Page 47 Water temperature: MTW>MDA Time: Cross track error: RMB>XTE>APB *1: calculate by magnetic drift. (7) Output Data NMEA0183 (Version1.5/2.0), RS-422 TLL (target data) and RSD 5. ENVIRONMENTAL CONDITION (1) Ambient Temperature Scanner Unit: -25°C to +70°C Display Unit: -15°C to +55°C (2) Relative Humidity 95 % or less at +40°C (3) Waterproofing...
-
Page 48: Index
Acquisition ... 6-4 A/C AUTO key ... 2-4 ACQ/ENTER key ... 6-2 A/C RAIN control ... 2-4 A/C SEA control ... 2-3 Auto plotter ... 6-2 Bearing measurement ... 2-6 Blind sectors ... 4-4 Brilliance ... 2-3, 3-8 BRILL key ... 2-3 Course Up ... - Page 52 Printed in Japan Printed in Japan Pub. No. Pub. No. OME-34620 OME-34620 ( ( YOSH YOSH ) ) MODEL1932/1942MARK-2 MODEL1932/1942MARK-2 FURUNO Authorized Distributor/Dealer FURUNO Authorized Distributor/Dealer FIRST EDITION : FIRST EDITION :AUG. AUG. 1998 1998 : : SEP. SEP. 27, 2006...
