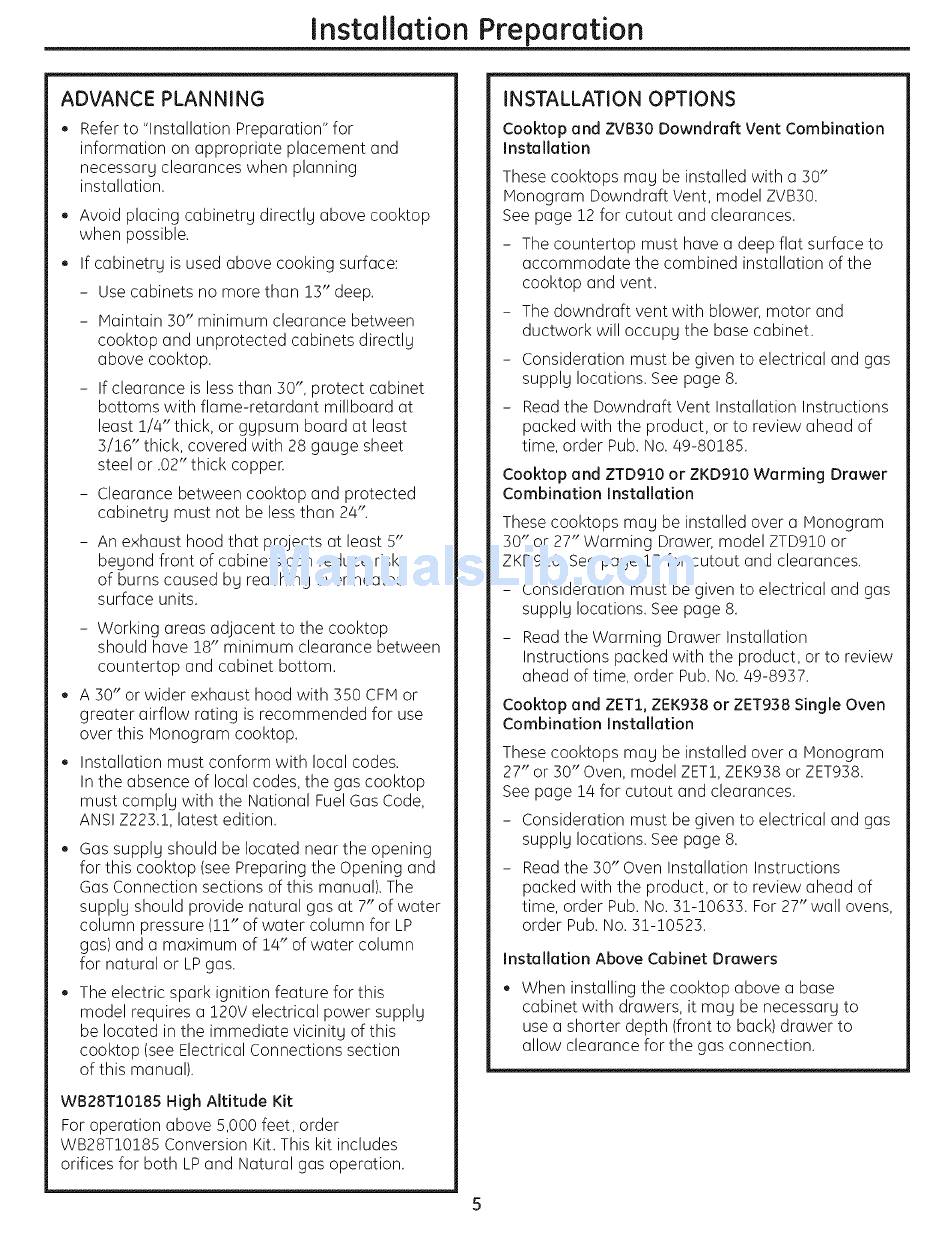

Installation Preparation
ADVANCE PLANNING
Refer to "Installation Preparation" for
information on appropriate placement and
necessarg clearances when planning
installation.
Avoid placing cabinetrg directlg above cooktop
when possible.
If cabinetrg is used above cooking surface:
- Use cabinets no more than !3" deep.
- Maintain 30" minimum clearance between
cooktop and unprotected cabinets directlg
above cooktop.
If clearance is less than 30", protect cabinet
bottoms with flame-retardant millboard at
least 1/4" thick, or ggpsum board at least
3/16" thick, covered with 28 gauge sheet
steel or .02" thick copper.
- Clearance between cooktop and protected
cabinetrg must not be less than 24".
An exhaust hood that projects at least 5"
begond front of cabinets can reduce risk
of burns caused bg reaching over heated
surface units.
- Working areas adjacent to the cooktop
should have 18" minimum clearance between
countertop and cabinet bottom.
A 30" or wider exhaust hood with 350 CFM or
greater airflow rating is recommended for use
over this Monogram cooktop.
Installation must conform with local codes.
In the absence of local codes, the gas cooktop
must complg with the National Fuel Gas Code,
ANSI Z223.!, latest edition.
Gas supplg should be located near the opening
for this cooktop (see Preparing the Opening and
Gas Connection sections of this manual). The
supplg should provide natural gas at 7" of water
column pressure (!!" of water column for LP
gas) and a maximum of 14" of water column
for natural or LP gas.
The electric spark ignition feature for this
model requires a !20V electrical power supplg
be located in the immediate vicinitg of this
cooktop (see Electrical Connections section
of this manual).
WB28T10185 High Altitude Kit
For operation above 5,000 feet, order
WB28T!0!85 Conversion Kit. This kit includes
orifices for both LP and Natural gas operation.
INSTALLATION OPTIONS
Cooktop and ZVB30 Downdraft Vent Combination
Installation
These cooktops nag be installed with a 30"
Monogram Downdraft Vent, model ZVB30.
See page 12 for cutout and clearances.
The countertop must have a deep flat surface to
accommodate the combined installation of the
cooktop and vent.
The downdraft vent with blower, motor and
ductwork will occupg the base cabinet.
Consideration must be given to electrical and gas
supplg locations. See page 8.
Read the Downdraft Vent Installation Instructions
packed with the product, or to review ahead of
time, order Pub. No. 49-80185.
Cooktop and ZTD910 or ZKD910 Warming Drawer
Combination Installation
These cooktops nag be installed over a Monogram
30" or 27" Warming Drawer, model ZTD910 or
ZKD910. See page 13 for cutout and clearances.
Consideration must be given to electrical and gas
supplg locations. See page 8.
Read the Warming Drawer Installation
Instructions packed with the product, or to review
ahead of time, order Pub. No. 49-8937.
Cooktop and ZET1, ZEK938 or ZET938 Single Oven
Combination Installation
These cooktops nag be installed over a Monogram
27" or 30" Oven, model ZET!,
ZEK938 or ZET938.
See page 14 for cutout and clearances.
Consideration must be given to electrical and gas
supplg locations. See page 8.
Read the 30" Oven Installation Instructions
packed with the product, or to review ahead of
time, order Pub. No. 31-10633. For 27"wall ovens,
order Pub. No. 31-10523.
Installation Above Cabinet Drawers
When installing the cooktop above a base
cabinet with drawers, it nag be necessarg to
use a shorter depth (front to back) drawer to
allow clearance for the gas connection.
5
