Alpine MobileHub CXA-B200NK Installation Manual

ENGLISH
Car Audio and Navigation Systems
TM
MobileHub for Nokia Handsets
CXA-B200NK

Installation Guide

Copyright ©2002 Nokia. All rights reserved.
Issue No. 1
Important Notes
The instructions contained in this installation guide are general
guidelines which apply for the installation of the MobileHub in an
automobile. However, due to the wide variety of car types and
models available on the market, this guide cannot consider the
individual technical requirements relevant for any particular
automobile. The information set out here serves solely as a general
overview.
The MobileHub may only be installed by a qualified mobile
electronics installer using the approved original Nokia and Alpine
components supplied in the kit. Please note that failure to observe
this instruction may void the warranty.
For important safety information and/or instructions on the
operation, care, and maintenance of your Alpine system or your
Nokia mobile phone, please refer to the relevant User's Guide.
Please read the basic safety guidelines set out below
before beginning any installation work. When connecting
to any other device, read its user's guide also for detailed
safety instructions. Do not connect incompatible products.
Safety First
Di sconnect t he car bat t er y bef or e begi nni ng t he
installation and make sure that it cannot be reconnected
i nadvertentl y. Do not smoke when worki ng on the car.
Make sure that there is no source of flame or fire nearby.
Take care not to cause damage to electrical cables, fuel
or brake lines, or safety equipment during installation.
R
TM
MobileHub for Nokia Handsets
TM
The MobileHub is designed to integrate your Nokia mobile phone
with your Alpine car audio system. Please note that the audio system
and mobile phone are sold separately.
Make sure not to impact the steering or braking systems
or other key systems essential for proper operation of the
car when i nstal l i ng car ki t components. Check to make
sure that depl oyment of the ai rbag i s not bl ocked or
impaired in any way.
RF signals may affect improperly installed or inadequately
shi el ded el ect r oni c syst ems i n mot or vehi cl es, f or
exampl e, el ectroni c fuel i nj ecti on systems, el ectroni c
anti -ski d (anti -l ock) braki ng systems, el ectroni c speed
control systems, or ai rbag systems. Check wi th the
manufacturer of the vehi cl e of any equi pment that has
been added.
The MobileHub may only be used in vehicles with a 12V,
negative ground electrical system. Failure to observe this
requirement will result in damage to the car's electronics.
Operating your MobileHub while the car engine is off may
drain the car battery.
Road Safety comes fi rst. Do not use a handhel d phone
while driving.
Swi tch off phone where prohi bi ted. Do not swi tch the
phone on when wireless phone use is prohibited or when
it may cause interference or danger.
Swi tch off when refuel i ng. Do not use your wi rel ess
phone at a refuel i ng poi nt. Do not use i t near fuel or
chemicals.
The Mobi l eHub al l ows you t o conduct hands- f r ee
conversations on your Nokia mobile phone. You can
choose to operate your Nokia mobile phone using the
phone' s key pad or via the car audio system' s controls.
Since menu text can be shown on the display of the car
radio system, this allows you to secure the mobile phone
holder in any convenient location inside the vehicle.
Technical Requirements
Alpine Head units Supported
The MobileHub is designed for operation with MobileHub-
ready Alpine Ai-Net car audio systems. If you are using the
CDA-7998 or CDA-7897, you will be able to utilize a full
range of MobileHub features. Please see your car audio
system's owner's manual for details.
Nokia Mobile Phones Supported
The MobileHub may be used with the following mobile
phones:
Europe
Nokia 5110, Nokia 5130
Nokia 6110, Nokia 6130, Nokia 6130i, Nokia 6150
Nokia 6210
Nokia 6310
Americas
Nokia 6310i

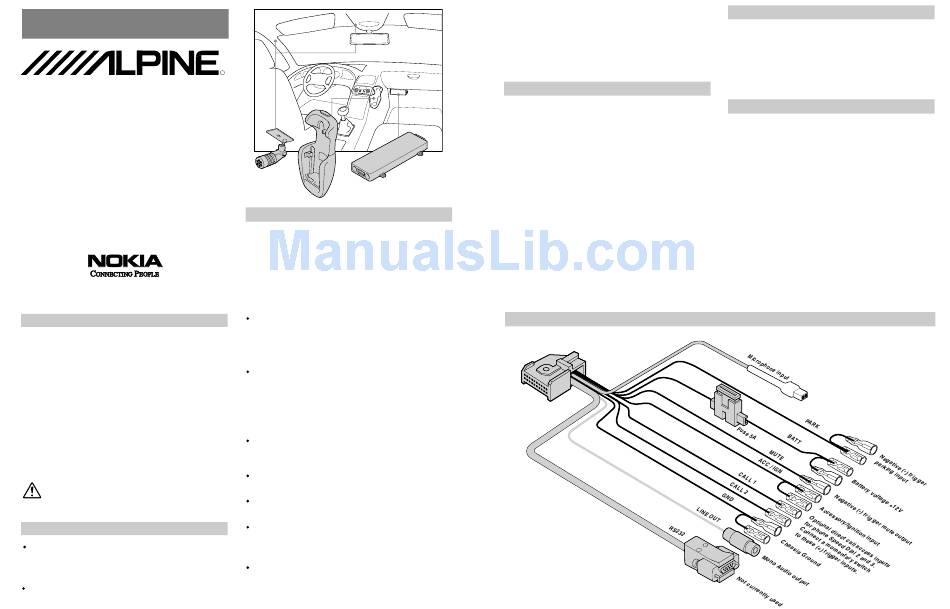

Wiring Diagram
Wiring
The wiring diagram below shows the function of each of the
cables. When laying the cables, take care to position them
so that they are located as far as possible from the
electronics systems installed in your car in order to avoid
electromagnetic interference. Make sure that the cables are
not subjected to mechanical wear and tear (for example, not
laid under car seats or over sharp edges).
Connecting diagram
Wire Function
PARK
Negative (-) trigger parking
brake input
BA TT
Battery Voltage +12V
MUTE
Negative (-) trigger mute output
ACC / IGN
Accessory/Ignition input
CALL 1, 2
Optional direct call access inputs
for phone Speed Dial 2 and 3.
Connect a momentary switch to
these positive (+) trigger inputs.
See your Nokia phone User's
Guide for details on
programming the phone's speed
dial feature.
GND
Chassis Ground
LINE OUT
Mono Audio output
MIC
Microphone Input
RS 232
Not currently used.
