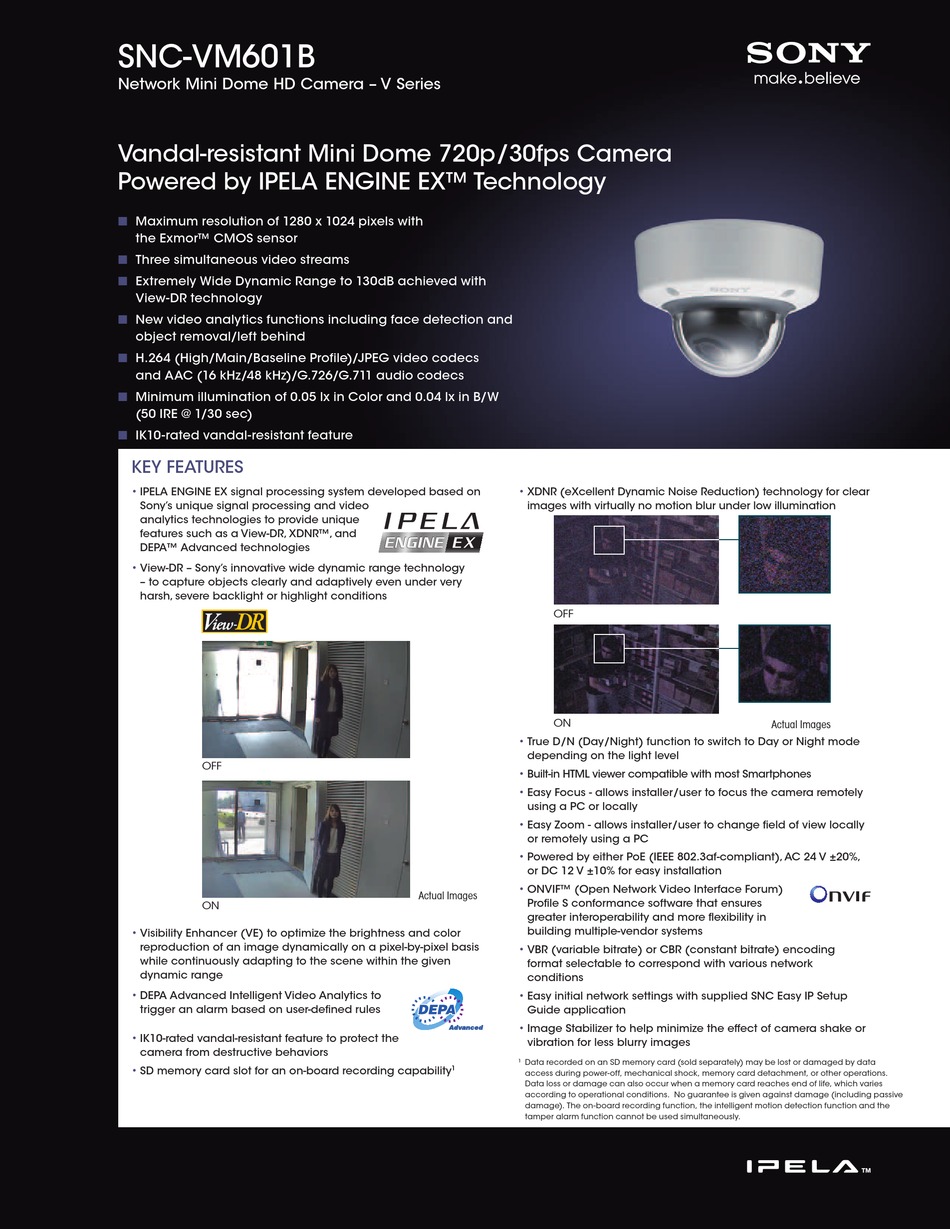

SNC-VM601B
Network Mini Dome HD Camera – V Series
Vandal-resistant Mini Dome 720p/30fps Camera
Powered by IPELA ENGINE EX™ Technology
Maximum resolution of 1280 x 1024 pixels with
n
the Exmor™ CMOS sensor
Three simultaneous video streams
n
Extremely Wide Dynamic Range to 130dB achieved with
n
View-DR technology
New video analytics functions including face detection and
n
object removal/left behind
H.264 (High/Main/Baseline Profile)/JPEG video codecs
n
and AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
Minimum illumination of 0.05 lx in Color and 0.04 lx in B/W
n
(50 IRE @ 1/30 sec)
IK10-rated vandal-resistant feature
n
KEy FEATuRES
•
IPELA ENGINE EX signal processing system developed based on
Sony's unique signal processing and video
analytics technologies to provide unique
features such as a View-DR, XDNR™, and
DEPA™ Advanced technologies
•
View-DR – Sony's innovative wide dynamic range technology
– to capture objects clearly and adaptively even under very
harsh, severe backlight or highlight conditions
OFF
ON
•
Visibility Enhancer (VE) to optimize the brightness and color
reproduction of an image dynamically on a pixel-by-pixel basis
while continuously adapting to the scene within the given
dynamic range
•
DEPA Advanced Intelligent Video Analytics to
trigger an alarm based on user-defined rules
•
IK10-rated vandal-resistant feature to protect the
camera from destructive behaviors
•
SD memory card slot for an on-board recording capability
•
XDNR (eXcellent Dynamic Noise Reduction) technology for clear
images with virtually no motion blur under low illumination
OFF
ON
•
True D/N (Day/Night) function to switch to Day or Night mode
depending on the light level
•
Built-in HTML viewer compatible with most Smartphones
•
Easy Focus - allows installer/user to focus the camera remotely
using a PC or locally
•
Easy Zoom - allows installer/user to change field of view locally
or remotely using a PC
•
Powered by either PoE (IEEE 802.3af-compliant), AC 24 V ±20%,
or DC 12 V ±10% for easy installation
•
ONVIF™ (Open Network Video Interface Forum)
Actual Images
Profile S conformance software that ensures
greater interoperability and more flexibility in
building multiple-vendor systems
•
VBR (variable bitrate) or CBR (constant bitrate) encoding
format selectable to correspond with various network
conditions
•
Easy initial network settings with supplied SNC Easy IP Setup
Guide application
•
Image Stabilizer to help minimize the effect of camera shake or
vibration for less blurry images
Data recorded on an SD memory card (sold separately) may be lost or damaged by data
1
1
access during power-off, mechanical shock, memory card detachment, or other operations.
Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including passive
damage). The on-board recording function, the intelligent motion detection function and the
tamper alarm function cannot be used simultaneously.
Actual Images
