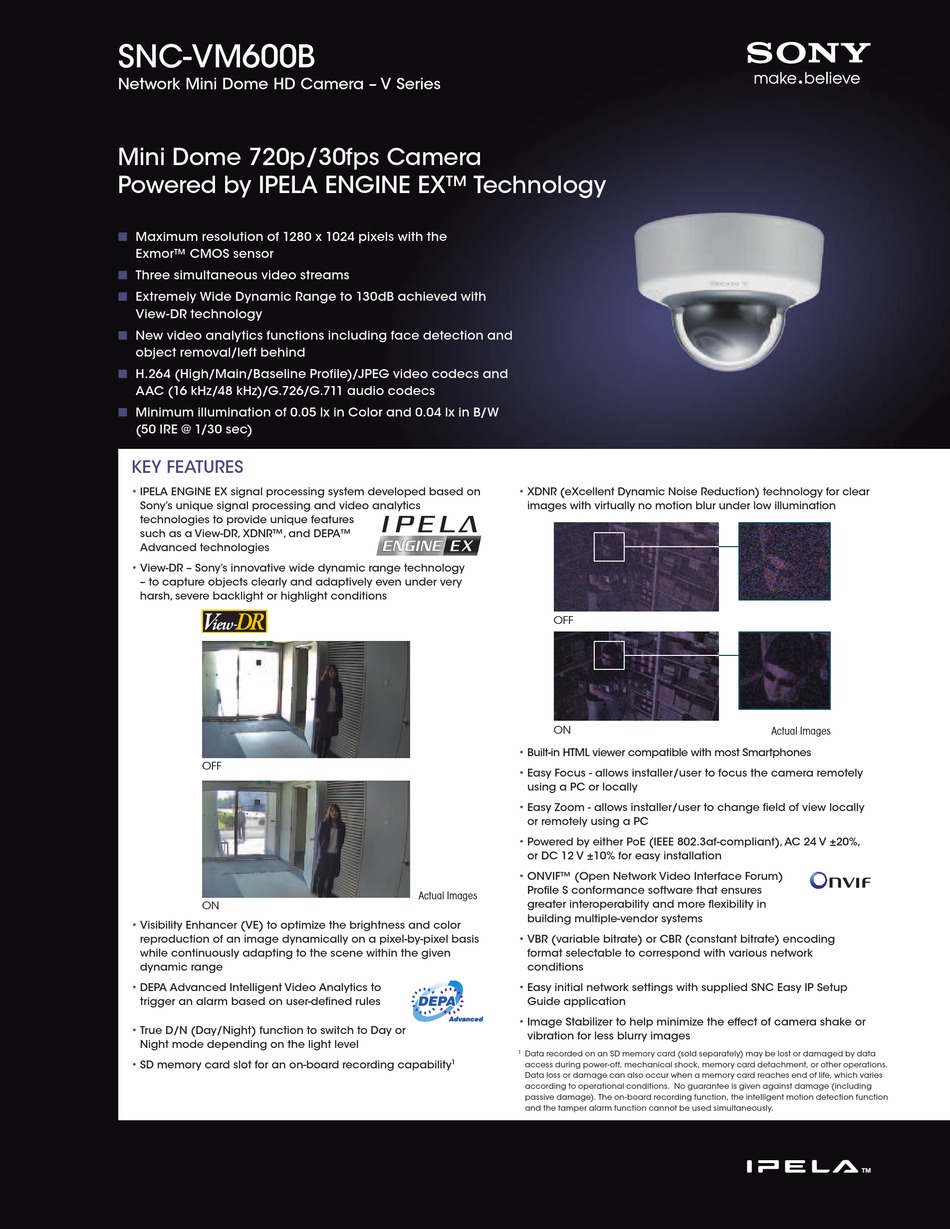

Sony Ipela SNC-VM600B Specification Sheet

SNC-VM600B
Network Mini Dome HD Camera – V Series
Mini Dome 720p/30fps Camera
Powered by IPELA ENGINE EX™ Technology
Maximum resolution of 1280 x 1024 pixels with the
n
Exmor™ CMOS sensor
Three simultaneous video streams
n
Extremely Wide Dynamic Range to 130dB achieved with
n
View-DR technology
New video analytics functions including face detection and
n
object removal/left behind
H.264 (High/Main/Baseline Profile)/JPEG video codecs and
n
AAC (16 kHz/48 kHz)/G.726/G.711 audio codecs
Minimum illumination of 0.05 lx in Color and 0.04 lx in B/W
n
(50 IRE @ 1/30 sec)
KEy FEATuRES
• IPELA ENGINE EX signal processing system developed based on
Sony's unique signal processing and video analytics
technologies to provide unique features
such as a View-DR, XDNR™, and DEPA™
Advanced technologies
• View-DR – Sony's innovative wide dynamic range technology
– to capture objects clearly and adaptively even under very
harsh, severe backlight or highlight conditions
OFF
ON
• Visibility Enhancer (VE) to optimize the brightness and color
reproduction of an image dynamically on a pixel-by-pixel basis
while continuously adapting to the scene within the given
dynamic range
• DEPA Advanced Intelligent Video Analytics to
trigger an alarm based on user-defined rules
• True D/N (Day/Night) function to switch to Day or
Night mode depending on the light level
• SD memory card slot for an on-board recording capability
• XDNR (eXcellent Dynamic Noise Reduction) technology for clear
images with virtually no motion blur under low illumination
OFF
ON
• Built-in HTML viewer compatible with most Smartphones
• Easy Focus - allows installer/user to focus the camera remotely
using a PC or locally
• Easy Zoom - allows installer/user to change field of view locally
or remotely using a PC
• Powered by either PoE (IEEE 802.3af-compliant), AC 24 V ±20%,
or DC 12 V ±10% for easy installation
• ONVIF™ (Open Network Video Interface Forum)
Profile S conformance software that ensures
Actual Images
greater interoperability and more flexibility in
building multiple-vendor systems
• VBR (variable bitrate) or CBR (constant bitrate) encoding
format selectable to correspond with various network
conditions
• Easy initial network settings with supplied SNC Easy IP Setup
Guide application
• Image Stabilizer to help minimize the effect of camera shake or
vibration for less blurry images
1 Data recorded on an SD memory card (sold separately) may be lost or damaged by data
1
access during power-off, mechanical shock, memory card detachment, or other operations.
Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including
passive damage). The on-board recording function, the intelligent motion detection function
and the tamper alarm function cannot be used simultaneously.
Actual Images
