Summary of Contents for Whirlpool GSC25C4EYY

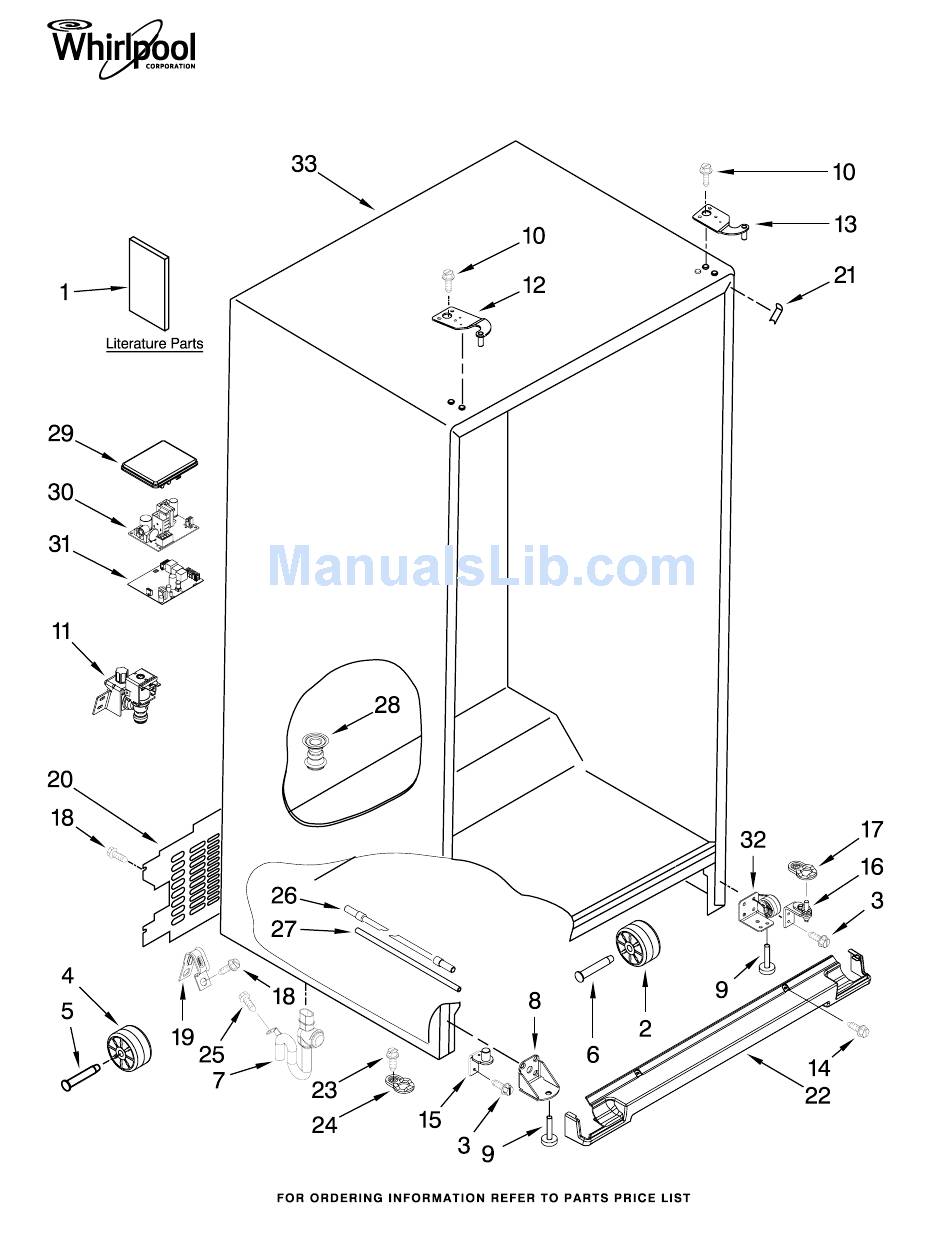

- Page 1 CABINET PARTS REFRIGERATOR For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) 4−12 Litho In U.S.A. (wam) (psw) Part No. W10386501 Rev. B...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 14 W10142283 Screw Grille Literature Parts Bottom Hinge (FC) W10257231 White W10168325 Use & Care Guide W10249940 White W10336413 Service & Wiring W10257232 Black W10249941 Black Sheet... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10260988 Escutcheon, Meat Pan Control 3 W10260989 Slide, Meat Pan Control 4 W10322031 Air Diffuser Assembly 5 W10300475 Air Diffuser Cover C3680314 Switch Rocker Arm... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10290870 Shelf, Snack Pan 2 W10290876 Cover, Assy 3 W10256809 Snack Pan (Includes 4 & 5) 4 W10278139 Roller 5 W10257246 Axle, Roller 6 W10256812 Crisper Pan (Includes 4 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 6 FREEZER LINER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2 W10290890 Cover Assy 3 W10393383 Shelf, Glass Upper 4 W10280386 Thermistor 5 W10393382 Shelf, Glass Lower 6 W10322533 Pan, Freezer Upper (Includes 7 &...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10353207 Ice Bin Assy 2 W10286610 Ice Bin 3 W10258552 Latch, Assy 2220458 Coupling, Lower 5 W10258544 Drive Shaft 2198607 Spring, Coupling 7 W10293211 Mounting Plate Assembly 2198628 Seal...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 10 REFRIGERATOR DOOR PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item 5) W10261181 White W10372830 Black W10372832 Mono Stainless 2 W10336573 Door Compartment Assembly 3 W10296816 Screw 4 W10335219 Door Bin, Shallow Door Gasket, Magnetic W10247884 Mist Beige...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 12 FREEZER DOOR PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes Item 8 And Dispenser Front Parts) W10399708 White W10399709 Black W10399710 Mono Stainless Handle W10268056 White W10268057 Black W10311213 Stainless/Satina 2200086 Thimble−Top 4 W10296804 Screw 5 W10170540 Stud, Handle 6 W10335217 Door Bin...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 14 DISPENSER FRONT PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2 W10276209 Grate, Drip Tray 3 W10174827 Bracket, Ice Door 4 W10339578 Chute, Door 5 W10205978 Motor, Ice Door 6 W10353566 Ice Door Assembly (Includes Items 3, 5, 7, &...
-
Page 15: Unit Parts
UNIT PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 16 UNIT PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10271541 Connector, 5/16 2161324 Clamp Grommet (4) 12825802 Fan, Blade 2188874 Fan, Motor 10835903 Production 3 W10240365 Condenser 19 W10251469 Tray, Evaporator 10835901 Service Assembly 20 W10223361 Heat Shield...
-
Page 17: Icemaker Parts
ICEMAKER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) W10386501... - Page 18 ICEMAKER PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10237915 Bracket, Valve 628379 Clip, Fuse 3 W10238092 Water Tube 489478 Screw 5 W10258562 Filter Valve Asm 6 W10001240 Screw 7 W10251088 Cover 8 W10141625 Screw (2) 9 W10251081 Mold &...
-
Page 19: Air Flow Parts
AIR FLOW PARTS For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10251462 Fan Scroll 2 W10260421 Retainer, Fan Motor 3 W10260388 Air Duct, Upper 4 W10260437 Bi−Metal, Defrost 5 W10260384 Air Duct Freezer 489290 Screw 2315549 Fan Motor 2169142 Fan Blade 9 W10240370 Gasket, Evaporator... - Page 20 OPTIONAL PARTS (NOT INCLUDED) For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00 (White) (Black) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 799344 White 350942 Primer, White 4392900 Biscuit 350939 Black 8171358 Graphite...
