Instruction Manual
Electrolux Major Appliances
P08F0096.eps P08D0475.eps P08C0889.eps P08S0408.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FCRS201RFB0
Series
Commercial
Color
stainless
Volts
115
Owner's Guide 297068700
Market
North America
Energy Guide 297086200
Publication No.
5995463881
06/03/22
(EN/SERVICE/MLR)
365
Copyright

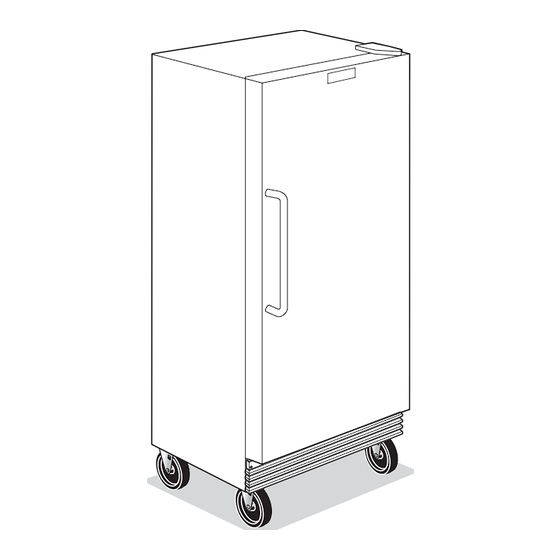

REFRIGERATOR
Model No.
FCRS201RFB
©
2006 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire FCRS201 - 19.5 cu.ft. Refrigerator
Summary of Contents for Frigidaire FCRS201 - 19.5 cu.ft. Refrigerator
- Page 1 Product No. FCRS201RFB0 Series Commercial Color stainless Volts Owner's Guide 297068700 Market North America Energy Guide 297086200 REFRIGERATOR Model No. Electrolux Major Appliances FCRS201RFB P08F0096.eps P08D0475.eps P08C0889.eps P08S0408.eps North & Latin America P.O. BOX 212378 AUGUSTA, GA 30917 Publication No. 5995463881 06/03/22 (EN/SERVICE/MLR)
- Page 2 Publication No: 5995463881 FCRS201RFB0 DOOR 03/06...
- Page 3 FCRS201RFB0 Publication No: 5995463881 DOOR POS. NO PART NO. DESCRIPTION 216522318 Gasket-door, black 297071000 Panel-inner door, refr 216450101 Panel-outer door 297073400 Nameplate, Commercial, stainless 5303311368 Washer, flat 216714100 Handle-door 216335400 Bearing-hinge 216403701 Plug-button, hole filler, door base 5303161215 Screw, ph truss head, 8-18AB x 0.500 5303302760 Screw, round head sems, 10-32 x 0.375 216923003...
- Page 4 Publication No: 5995463881 FCRS201RFB0 CABINET 03/06...
- Page 5 FCRS201RFB0 Publication No: 5995463881 CABINET POS. NO PART NO. DESCRIPTION 216325600 Fan Blade 216604100 Breaker Kit w/corners 216603300 Breaker Kit w/corners, 32", top or bottom 216999400 Tubing- heater, formed 216933701 Bracket, drain pan, w/hole, (2) 10A* 216917100 Screw, 8-18x.625, flat sems, (2), bracket 13 # 216934100 Motor, fan, 115 V...
- Page 6 Publication No: 5995463881 FCRS201RFB0 CABINET 03/06...
- Page 7 FCRS201RFB0 Publication No: 5995463881 CABINET POS. NO PART NO. DESCRIPTION 216486800 Support, evaporator mtg 216605200 Shelf-standard 216658400 Bolt, caster, 5/16 sq. neck, front, (8) 297084400 Bolt, castor, 5/16" 18x1.625, rear 216658102 Support-casters, black 297078600 Plate-spacer 297070200 Dial, thermometer 297096100 Screw, #6-20X.375 AB, stainless, thermo dial 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2) 216504500...
- Page 8 Publication No: 5995463881 FCRS201RFB0 SYSTEM 03/06...
- Page 9 FCRS201RFB0 Publication No: 5995463881 SYSTEM POS. NO PART NO. DESCRIPTION 5300083897 Condenser 5303313652 Cap, protective, condenser 5308000110 Strap-evap/heater, aluminum, (2) 216938600 Drier-filter 297069200 Harness-main 216987800 Adapter-harness 216730700 Heater-defrost 15 # 297052900 Evaporator 216424200 Heat Exchanger 216727600 Insulator-evap, styrofoam 216727700 Insulator-evap, styrofoam 216872200 Thermostat, defrost 216970300...
