24v drive, reCeiPT PriNTer MiCrO UNiT
2" HiGH SPeed THerMaL PriNTer
FTP-627USL401/402
■
Overview
The FTP-627 USL Series are 24V driven high-speed printers
with a ultra low profile auto cutter and long life.
The FTP-627 USL Series can be used for a variety of applica-
tions, such as POS terminals, ticket vending machines, label
printers, banking terminals, and measurement and medical
equipment.
■
HiGHLiGHTS
•
Ultra low profile
Height 108 mm, width 100 mm, depth 94 mm
•
High speed printing
It can print at 100 mm/s (800 dotlines/s) maximum by using
Fujitsu's unique head drive control.
•
Windows® 2000/XP, Linux and OPOS drivers
•
Auto Cutter
Long life and high reliable guilotine with dedicated motor.
•
Easy paper loading
Our lever platen release mechanism allows a
wide paper route, so 60 mm diameter paper can be easily
inserted.
•
Multifunctional die-cast frame
Wide operating temperature range, long continuous
printing, high ESD absorbtion and discharge of static
electricity vibration and shock resistant.
•
Barcodes
Prints standard, extended and 2-D types
•
RoHS compliant
FTP-627USL401/402

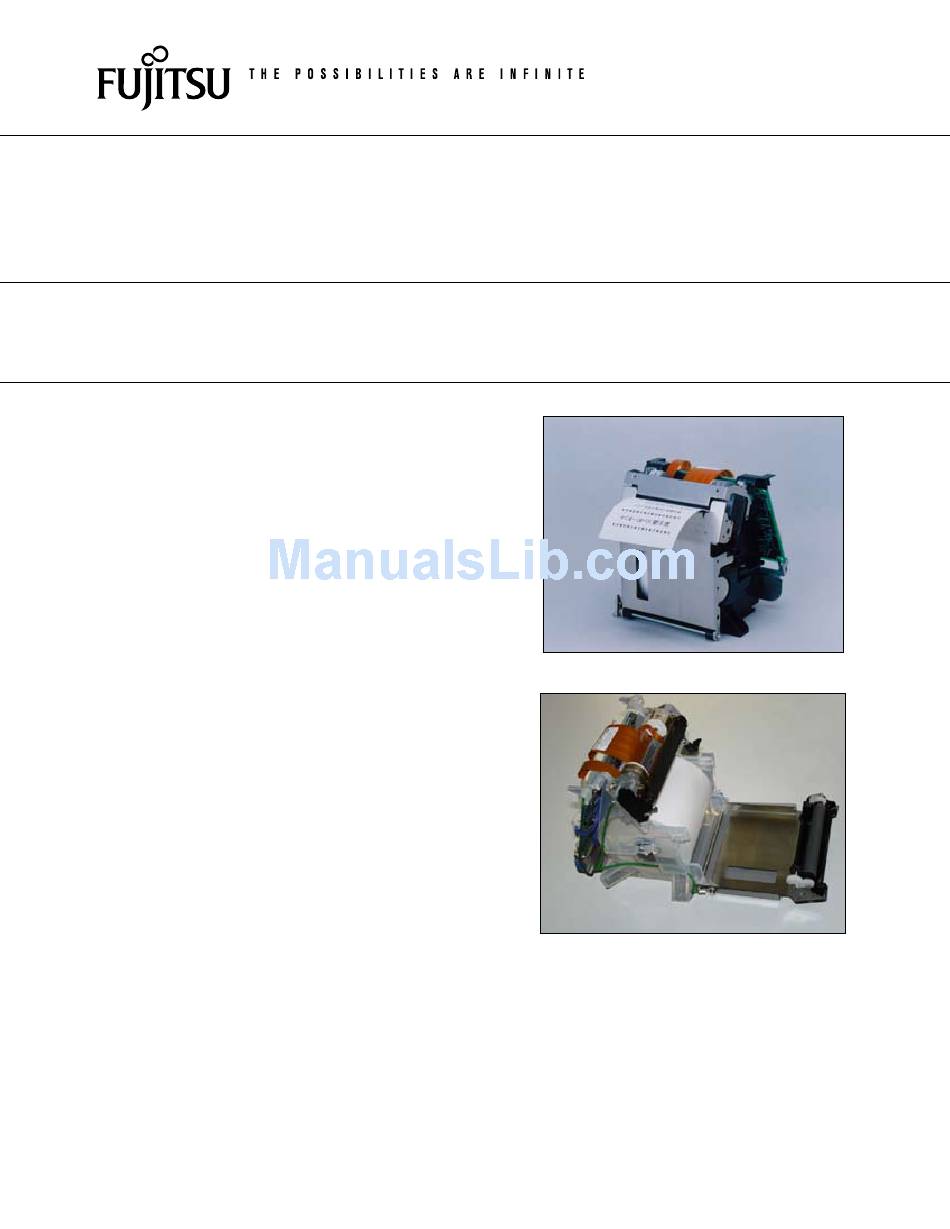

FTP-627USL401 platen/cutter closed
FTP-627USL401 platen/cutter open
Advertisement
Related Manuals for Fujitsu FTP-627USL401
Summary of Contents for Fujitsu FTP-627USL401
- Page 1 Ultra low profile Height 108 mm, width 100 mm, depth 94 mm • High speed printing It can print at 100 mm/s (800 dotlines/s) maximum by using Fujitsu's unique head drive control. • Windows® 2000/XP, Linux and OPOS drivers • Auto Cutter Long life and high reliable guilotine with dedicated motor.
-
Page 2: Part Numbers
Paper thickness Printing Speed Character types Character, dimensions (W×H), number of columns Barcodes Standard Extended Printing mode FTP-627USL401/402 Part Number FTP-627USL401 (USB interface) FTP-627USL402 (Serial interface) FTP-627USL410 (USB/Serial) FTP-628Y302 FTP-629Y301 FTP-629Y401 FTP-629Y601 Specifications FTP-627USL401/402 Thermal-line dot method 432 dots/line 0.125 mm (8 dots/mm)—Dot density 0.125 mm (8 dots/mm)—Line feed pitch... - Page 3 Paper out/mark detection Platen release Recommended thermal sensitive paper *+5˚C to +40˚C printing density assurance range. FTP-627USL401/402 Specification Conforms to USB/Serial 24 VDC average current, 0.5A (0.9A peak) (print ratio: 12.5%, print speed 100mm/sec.) 24 VDC ±5%, 0.9 A maximum 24 VDC ±5%, 1.1 A maximum...
- Page 4 CN7 Near end sensor connector CN9 Logic power connector CN0 Head/motor connector Note: *1: Option *2: Depends on P/N FTP-627USL401/402 y t i Functions Connection for serial interface Connection for USB interface Connection for paper cutter Connection for operation panel...
-
Page 5: Printer Mechanism
Hook depth 6 *3 Note: 1. The cable size and FPC are not included in this drawing. 2. Do not mount anything in the shaded area except the printer. 3. Connect to the body with 2 screws at 2 hooks. - Page 6 ESC K+n ESC L ESC Q+n+!+j ESC R+n ESC S ESC T+n ESC V+n FTP-627USL401/402 Contents Moves print position to the next tab. Line feed. Feeds forms (new page). Data printing in page printing mode. Sets reverse printing. Resets reverse printing.
- Page 7 FS 9+n FS C+n FS E+n FS S+n+n1+n2 FS W+n FS r+n* GS ! + n FTP-627USL401/402 Contents Page printing mode printing area setting. Setting the turning time of the motor excitation. Program download. Relative position setting. Positional alignment. Sets internal processing.
- Page 8 [d(1,i)} ~ {[pi][d(i,1)]~[d(i,j)} [00]16 GS k+m+k1+k2+k3+k4+k5+d1~dn GS k+m+k1+k2+k3+k4+k5+k6+d1~dn GS w+n GS C+C+n1+n2+m+fn+b+d1~dn : These commands are valid with FTP-627DSL600 series. FTP-627USL401/402 Contents Vertical absolute position specification in page printing mode. Registered bit image definition. Registered bit image printing. Registered bit image definition.
- Page 9 Fujitsu Components America or its affiliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our products Fujitsu Components America, Inc. or its affiliates reserve the right to change specifications/datasheets without prior notice.
