Sharp R-307KW Service Manual page 31

Pin
Upper Oven
Upper
Hinge
Oven Hinge
Slit choke of
door panel
Lower
Oven Hinge
Lower Oven
Hinge
Pin

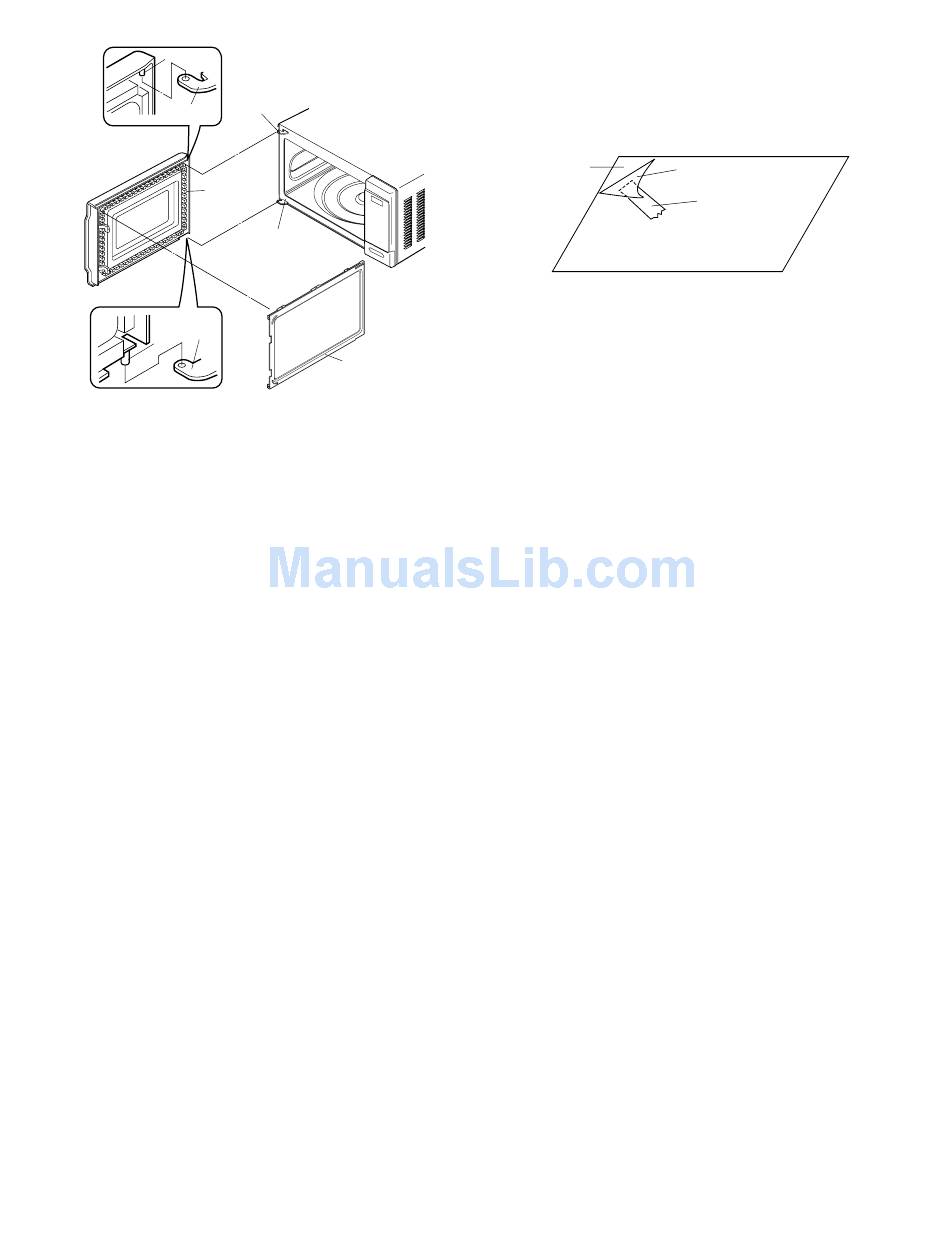

Figure C-6. Door Replacement
4. SEALER FILM
1. Put the adhesive tape on the backing film of the sealer film as
shown in Fig. C-7
2. Tear the backing film by pulling the adhesive tape.
3. Put the pasted side of the sealer film on the door panel
Sealer film
Choke Cover
11 – 7
Backing film
Adhesive tape
Figure C-7. Sealer film
R307KW
