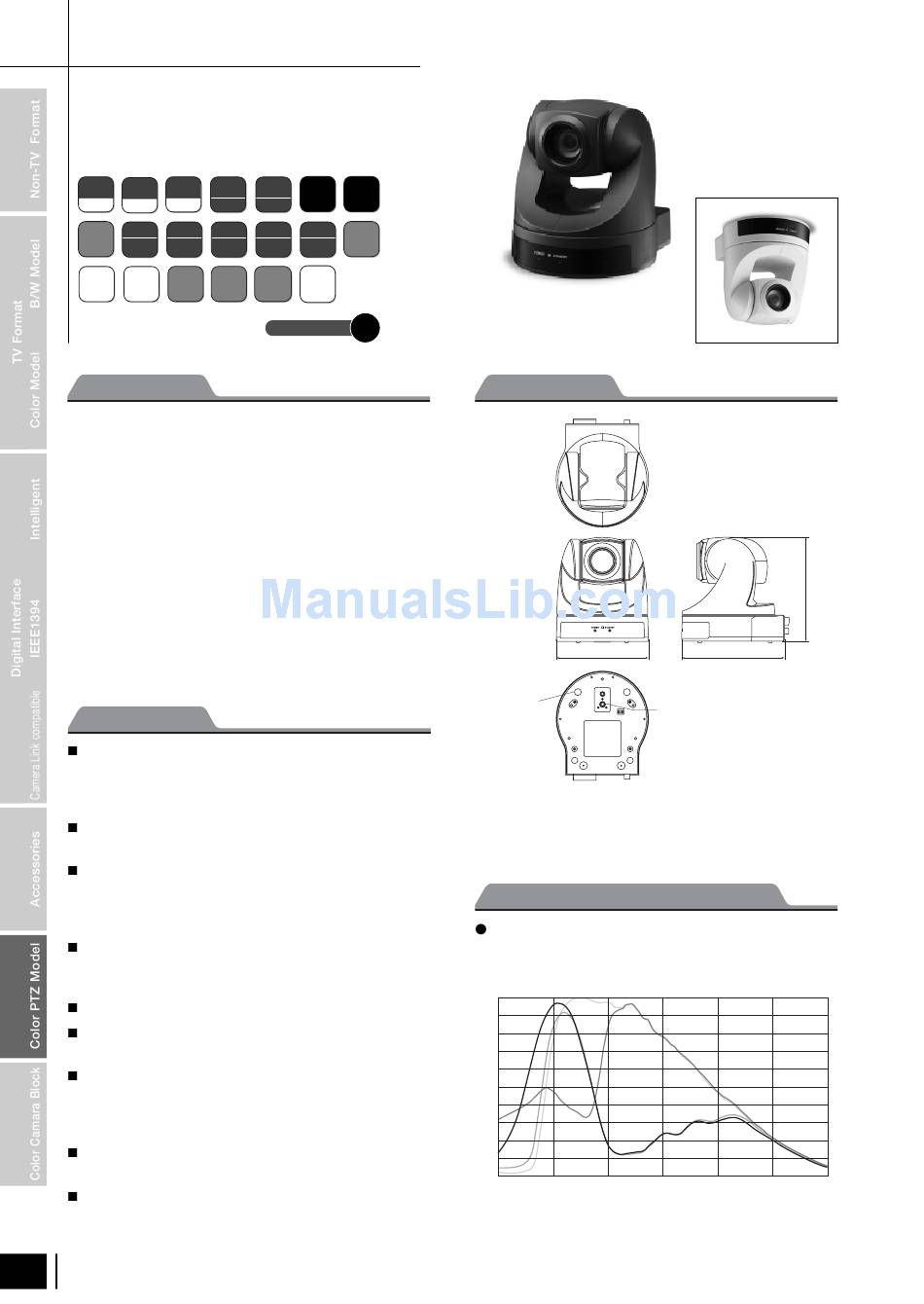

Sony EVID 70 - EVI D70 CCTV Camera Dimensions

Communication Color Video Camera
EVI-D70, D70P
EVI-D70/W, D70P/W
Auto
Zoom
1/4
Type
18
Focus
X
CCD Lens
Lens
* * *
ATW AUTO
CCD
White White
Iris
Balance Balance
E-Zoom
Horizontal Vertical
12
Flip Flip X
* For RS-232C control
Outline
The EVI-D70, EVI-D70P, EVI-D70/W, EVI-D70P/W is a
high-performance, high-sensitivity color video camera for
day/night use, and is equipped with a wide range pan/tilter in
one package, making it ideal for full-scale remote monitoring
applications. With a high-sensitivity Exview HAD CCD
and auto ICR function, this camera can provide sharp
images whether day or night. The newly developed wide
range pan/tilter allows a wide imaging range, and the
built-in vertical flip function enables you to choose whether
to mount the unit on the ceiling or in a standard position.
The camera can also be used in combination with conversion
lenses. Precise control is possible using the included
remote commander or VISCA commands, and customized
settings that support a variety of system demands can be
made, allowing you to optimize your operations.
Features
An EXview HAD CCD provides 380,000 (EVI-D70,
EVI-D70/W)/410,000 (EVI-D70P, EVI-D70P/W) effective
picture elements (pixels) enabling high-resolution
imaging with this camera.
The use of VISCA commands allows you to control the
camera from a computer.
High-speed, wide angle PAN and TILT functions and
Image Flip (turning the displayed image upside down)
allow the unit to be mounted on the ceiling, broadening
the range of uses for this versatile camera.
With the addition of external RS-232C communication,
RS-422 and VISCA commands provide the ability to
remotely control this camera from greater distances.
The lens offers an18x optical zoom feature.
Use of a newly developed digital signal processor (DSP)
improves the image quality of the digital zoom feature.
An IR (infrared) cut filter can be physically removed.
In addition, it can be switched on and off automatically,
providing the best image quality for a wide range of
subjects, from high resolution to brightly lit.
Up to six combinations of camera position and settings
can be retained in memory and called up when needed.
A multi-function Remote Commander is also provided.
* Exview HAD CCD TM and VISCA are trademarks of Sony Corporation
104
EVI-D70, EVI-D70P, EVI-D70/W, EVI-D70P/W
(Black Model)
*
Long Normal
VBS Y/C
Exposure Shutter
Output Output
* * *
PTZ
One-Push Fixed Manual
Pan/Tilt/
White White White
Zoom
Balance Balance Balance
RS232C RS422C
Power
Control Control
Save
P112
Connection Diagram
(White Model)
Dimensions
TM
¿5
depth 5
Unit: mm
Spectral Sensitivity Characteristics
EVI-D70, EVI-D70P, EVI-D70/W, EVI-D70P/W
(Typical Values)
Relative sensitivity
1
0.9
Cy G
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
400 500
132 144
Tripod screw
/
1 -20UNC
4
depth 6.5
Ye
Mg
600 700 800
Wavelength (nm)
900 1000
