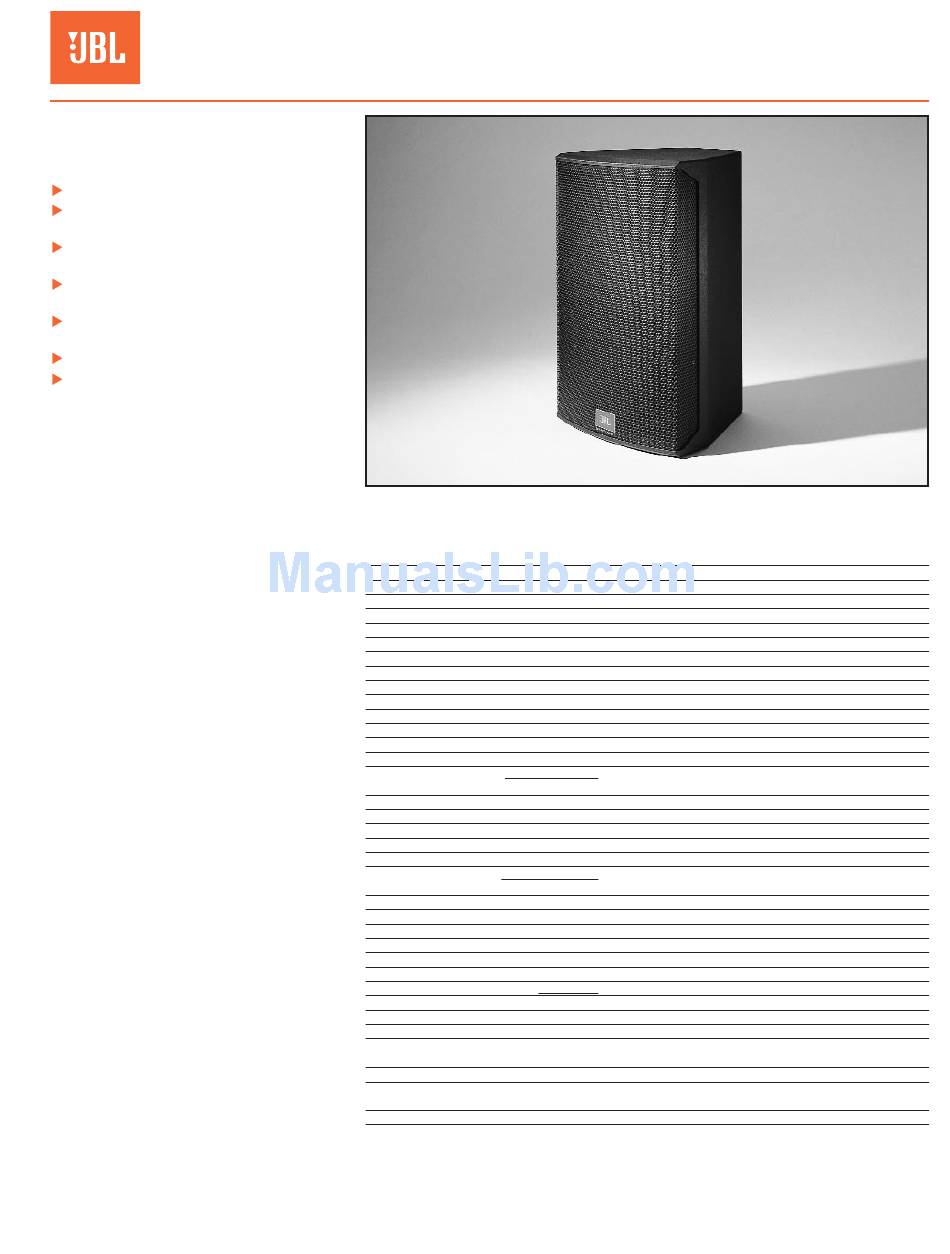

JBL SP215-9 Specifications

Sound Power Series

Key Features:

VGC (Vented Gap Cooled TM
Opt Apt HF horn with 1.5" exit
compression driver
Trapezoidal enclosure for easy cluster
arrangements
DuraFlex finish, tough, weather resistant
and paintable
Internal tamper resistant Bi-Amped/Passive
selector
12 Suspension points (M10 Thread)
Advanced Network Topologies for smooth
power response and stable amplifier
loading

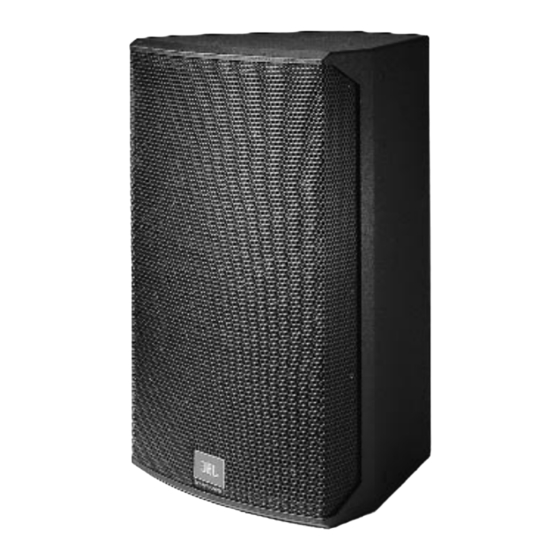

The model SP215-9 is a true, full range
system that provides unprecedented bandwidth
and maximum SPL in a single system package.
With nominal 90° coverage pattern, systems
can be splayed together for additional
coverage and/or SPL requirements. The
powerful 15" VGC (Vented Gap Cooled
transducer provides powerful transient bass.
The proven Optimized Aperture
coupled to a 2447J, 1.5" exit compression
driver delivers a precise, clear and controlled
high frequency response.
The SP215-9 is equipped with a passive
crossover that can be switched to bi-amplified
use via an easily accessible internal tamper
resistant selector. Bi-amplified mode, utilizing
the DSC260 digital controller for crossover,
signal alignment, and equalization functions,
provides optimum system performance.
The SP215-9 is part of the JBL Sound
Power Series, a family of modular loudspeaker
systems designed for fixed installation
applications ranging from speech reinforcement
to large scale music productions. All models
are fitted with suspension points that accept
M10 threads. The enclosures are finished with
a hard wearing, weather resistant, textured
finish DuraFlex. Premium 13 ply wood and
an 18 gauge steel, foam-backed grille enable
Sound Power systems to comply with
environment test specifications.
Components:
The SP215-9 utilizes one of JBL's finest
cone transducers, the 2226H. The 15" 2226H
is part of JBL's family of Vented Gap Cooled
woofers and carries an AES power rating of
600 watts with minimal power compression.
The cone has been treated for weather
resistance.
The 38mm (1.5 in) exit 2447J large format
compression driver is coupled to an Optimized
Aperture Bi-Radial ® horn providing smooth
even coverage. The Optimized Aperture horn
provides lower throat distortion than its earlier
predecessors while extending frequency
response to nearly 20 kHz.
SP215-9
) LF transducer
Specifications:
) LF
TM
System:
HF horn
TM
Transducers:
Physical:
1 Measured on axis in the far field with 1 watt (2.83 V RMS, 8 ohms) input and referenced to 1 meter distance using the
inverse square law. Listed sound pressure represents an average from 300 Hz to 16 kHz.
2 IEC Spectrum for 2 hours with +6 dB crest factor.
3 Recommended Amplifier is a power capability value that should be taken as a guide.
JBL continually engages in research related to product improvement. New materials, production methods, and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this
reason, any current JBL product may differ in some respect from its published description, but will always equal or
exceed the original design specifications unless otherwise stated.
Freq. Range (-10 dB): 33 Hz - 20 kHz
Freq. Response (-3 dB): 42 Hz - 18 kHz
Horz. Coverage Angle (-6 dB): 95° averaged 500 Hz to 16 kHz
Vert. Coverage Angle (-6 dB): 60° averaged 500 Hz to 16 kHz
Directivity Factor (Q): 10.0 averaged 500 Hz to 16 kHz
Directivity Index (DI): 10.0 averaged 500 Hz to 16 kHz
System Sensitivity 1 : 97 dB, 1 W @ 1 m (3.3 ft)
Rated Maximum SPL: 131 dB, @ 1 m (3.3 ft)
System Nominal Impedance: 8 Ohms
System Input Power Rating 2 : 600 W, IEC; 2400 W Peak
Recommended Amplifier 3 : 800 W
Recommended Controller: DSC260
Passive Crossover: 1.2 kHz
Low Frequency: 2226H, 380 mm (15 in) dia., 100 mm (4 in)
Nominal Impedance: 8 Ohms
Input Power Rating: 600 W, AES; 2400 W Peak
Sensitivity 1 : 97 dB, 1 W, @ 1 m (3.3 ft)
Calculated Maximum SPL: 131 dB, @ 1 m (3.3 ft)
Recommended Amplifier : 800 W
3
High Frequency: 2447J; 100 mm (4") diaphragm and voice coil dia.,
Nominal Impedance: 16 Ohms
Input Power Rating: 75 W, AES; 300 W Peak
Sensitivity 1 : 111 dB, 1 W, @ 1 m (3.3 ft)
Calculated Maximum SPL: 136 dB, @ 1 m (3.3 ft)
Recommended Amplifier 3 : 200 W
Enclosure: Trapezoidal, 22.5° side angles, birch plywood
Environmental Specifications: Mil-Std 810, IPX4 per IEC 529
Suspension Attachment: 12 points; accepts M10 threaded hardware
Finish: Black DuraFlex coating
Grille: Black powder coated zinc treated 18 gauge
Input Connectors: 2 x NL4 Neutrik Speakon connectors
Dimensions: 737 mm x 451 mm x 451 mm (29.00 in x 17.75 in
Net Weight: 38.1 kg (84 lbs.)
Two-Way Full Range
Loudspeaker System For

Permanent Installation

edgewound ribbon voice coil
76 mm (1.5") throat dia.
perforated steel grille with foam backing
x 17.75 in)
