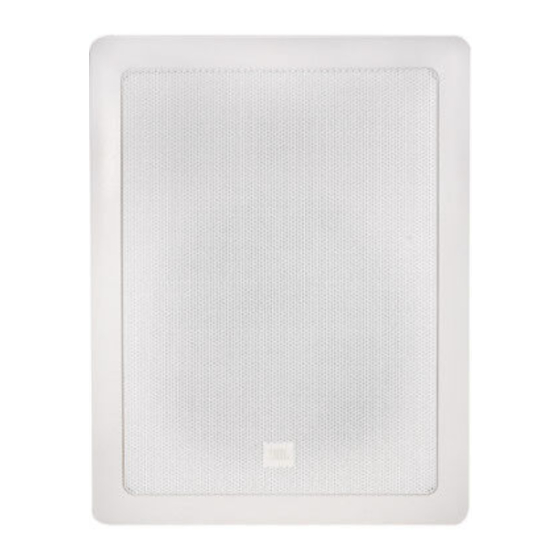

JBL SoundPoint SP8 Series Technical Manual

Technical Manual
SP8
SoundPoint
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance
Max Amp Power
•
Frequency Response
•
• Sensitivity
• Crossover Frequency
SYSTEM COMPONENTS:
• Grille, Gray
• Low-Frequency Transducer 8" (203mm) Titanium-laminate
DC Resistance
High-Frequency Transducer 1" (25mm) Titanium-laminate
•
• DC Resistance
• Crossover Network
PACKAGING
14
15
13
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
All manuals and user guides at all-guides.com
®
Series
8 Ohms
100 Watts*
30Hz – 20kHz (–10dB)
89dB (2.83V @ 1 meter)
2,400Hz
590-0104
cone w/rubber surround
330-0207
5.4 Ohms ±10%
dome, w/swivel mount
300-0136
7.4 Ohms ±10%
340-0230
Legend on Page 2
19
12
11
AURAL SWEEP TEST SPECIFICATIONS:
System Aural Sweep Test
•
L.F. Aural Sweep Test
•
• H.F. Aural Sweep Test
PHYSICAL SPECIFICATIONS:
Plate Size (W x H)
•
Mounting Cutout Size
•
(W x H)
• Mounting Depth
• Weight
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
CROSSOVER NETWORK
340-0230
+
+
SP8 SCHEMATIC
C1
4uF
250V
0.5mH
L2
0.6mH 0.6mH
C2
20uF
100V
6.0V Input 30Hz to 20kHz
5.0V Input 30Hz to 3kHz
2.83V Input 1kHz to 20kHz
10-1/8" x 13-1/8" (257mm x 333mm)
8-7/8" x 11-13/16"
(225mm x 300mm)
4" (102mm)
12 lb/5.4kg (sold in pairs)
LOW-FREQUENCY
TRANSDUCER
330-0207
GRN
+
BLK
BLK
+
YEL
HIGH-FREQUENCY
TRANSDUCER
330-0136
R1
BLK
.110
6.0 ohms
L1
5 watts
YEL
.110
L3
GRN
.250
C3
25uF
100V
R2
7.5 ohms
10 watts
BLK
.205
Rev 4 6/07
