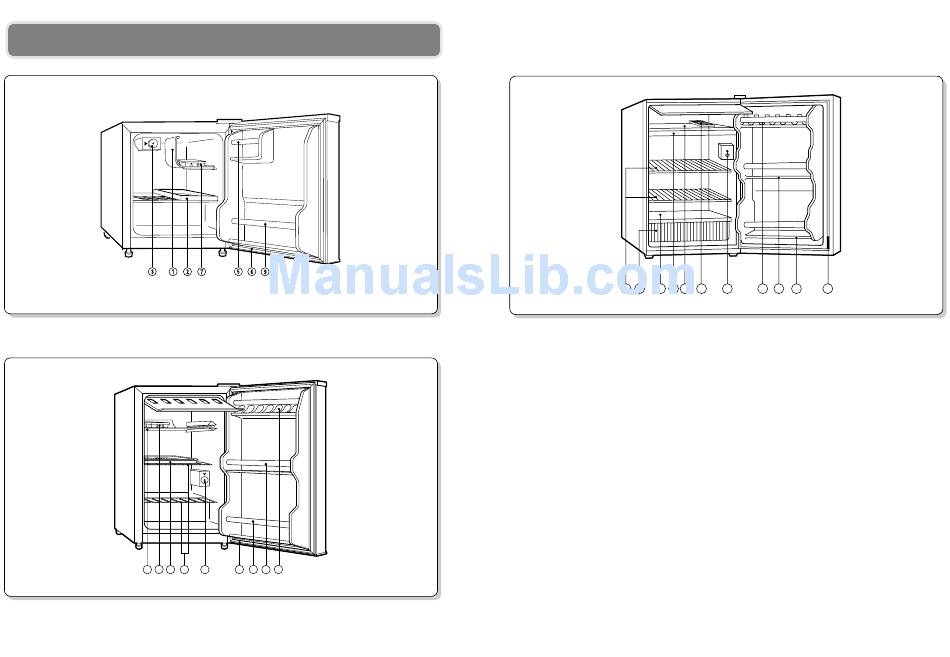

NAMES OF THE PARTS

FR-063R

FR-093R

7 2 4

FR-146R

FR-156R

4 10

11 2 1

1. EVAPORATOR

The heart of the refrigerator.

It evaporates the refrigerant fluid and thereby absorbs heat from the surrounding. Made of pure

aluminum.

2. DRAIN PAN (Use of Defrost Only)

Discards the water that drips of the evaporator when defrosting.

3. CONTROL BOX :

Regulates the operation of the motor and controls the inside temperature of the refrigerator.

4. SHELF

Has full width and can slide out.

5. RACK For butter, eggs, and small size goods.

6. MAGNETIC DOOR SEALS

Keeps the refrigerator virtually airtight all along the edge, but is nevertheless easy to open.

7. ICE CUBE TRAY Ice cubes are easy to remove from the tray.

8. USABLE RACK for cans or jars.

9. BOTTLE RACK for bottles, cans or jars.

10. CRISPER

for vegetables and fruits.

11. SLIDE OUT CRISPER COVER.

Table of Contents

Page 1: Names Of The Parts
NAMES OF THE PARTS FR-063R FR-146R FR-156R 4 10 11 2 1 1. EVAPORATOR The heart of the refrigerator. It evaporates the refrigerant fluid and thereby absorbs heat from the surrounding. Made of pure FR-093R aluminum. 2. DRAIN PAN (Use of Defrost Only) Discards the water that drips of the evaporator when defrosting.
Page 2: How To Operate
HOW TO OPERATE HOW TO CLEAN Starting your new Refrigerator Cleaners: The cleaners noted below are available. Never use harsh, abrasive cleaners, heavy- duty cleaners, or solvents on any surface. 1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a Exterior: Wipe with damp, sudsy cloth, rinse and dry.
Page 3: Changing The Reversible Door
WHAT TO DO... CHANGING THE REVERSIBLE DOOR This refrigerator has been built with the door hinges on the right. 1. When out of operating for a long time: If you wish to change the opening direction, follow the instruction below: Remove the power supply cord.
Page 4 Model No. Be sure washer is in place. FR-063R / FR-093R / FR-146R / FR-156R 10. While holding the door in the closed position, secure the top hinge at the left side using the two screws previously removed at the beginning in step 2.

Fr-093r Fr-146rFr-156r
