Nikon Coolpix 4500 Mounting Instructions

Mounting a Coolpix 4500 onto a Microscope Reference Sheet
Please refer to the Coolpix 4500 User's Manual for page numbers indicated below.
Mounting the Coolpix 4500 to a microscope trinocular photo tube or beamsplitter
1. With the camera power off, open the card-slot cover and make sure
a CompactFlash
See p.12
the camera.
2. Carefully thread the MDC-A Relay Lens onto the camera's lens.
Likewise, thread the C-mount onto the MDC-Relay Lens securely.
Note that over-tightening the adapter may damage threads of both
adapter and apparatus.
3. Attach the C-mount adapter onto the microscope's trinocular or
beamsplitter port. Secure the C-mount into place.
4. Swivel the LCD screen to the desired viewing position and angle.
Note: The EH-52 AC Adapter is recommended to eliminate battery consumption.
Mounting the Coolpix 4500 into a microscope eyepiece tube
1. With the camera power off, open the card-slot cover and make sure
a CompactFlash
See p.12
the camera.
2. Remove the cover ring from the relay lens by loosening the three
setscrews.
3. Attach the MDC-A relay lens to the camera lens.
Note that over-tightening the adapter may damage threads of both
adapter and apparatus.
4. Remove an eyepiece from the microscope and insert the MDC-A
adapter as replacement.
5. Swivel the LCD screen to the desired viewing position and angle.
Note: The EH-52 AC Adapter is recommended to eliminate battery consumption.
*
This reference sheet is to be used in addition to the Coolpix 4500 User's Manual
TM
Card or IBM Microdrive
TM
Card or IBM Microdrive
®
is properly inserted into
®
is properly inserted into

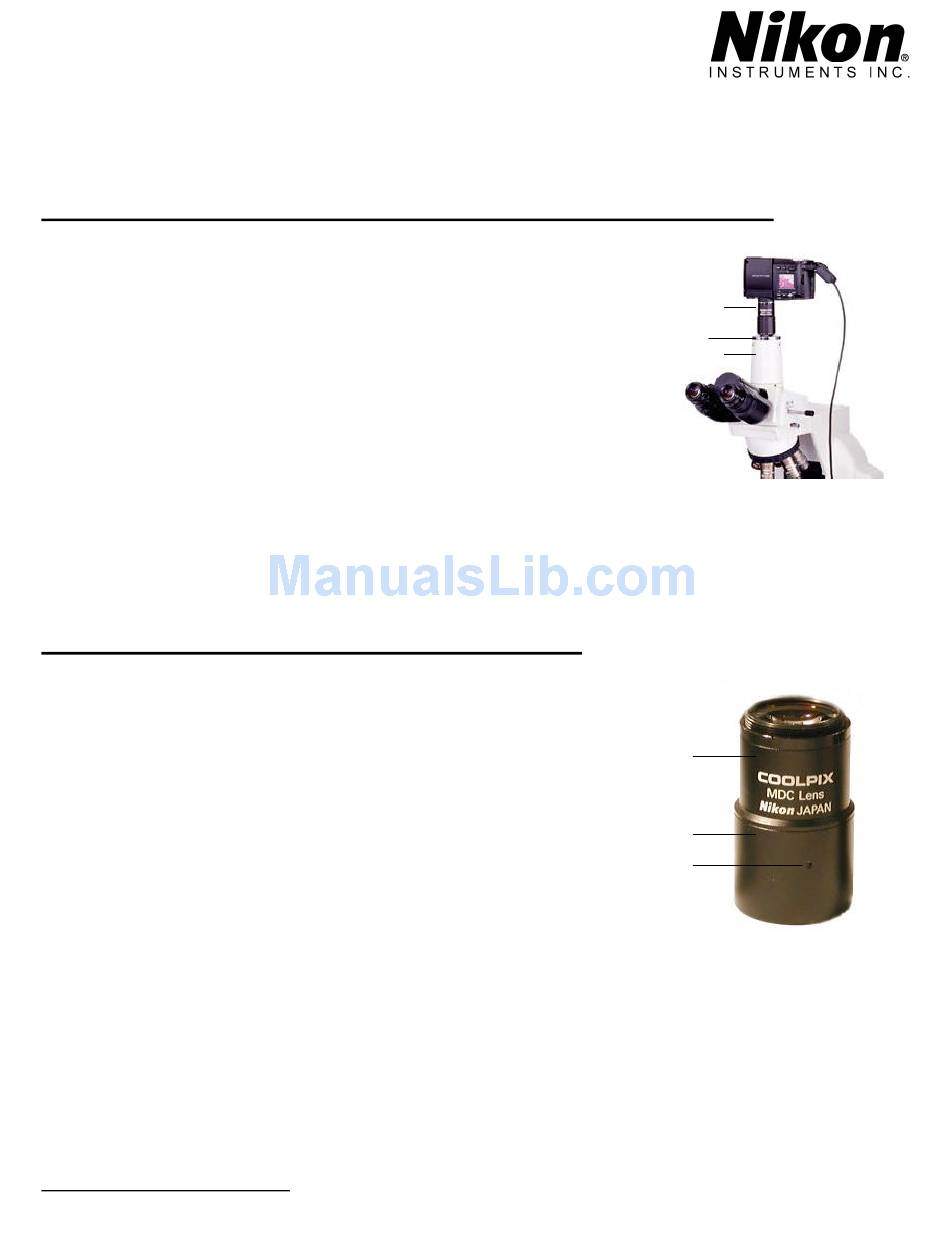

MDC- A Relay Lens
*
MDC- A Relay Lens
C-Mount
Photo Tube
Cover Ring
Setscrew (x3)
