Chapter 7
Implementing the VSAM eWay Sample Projects
Binding the eWay Components
7.6.6
The final step in creating a Connectivity Map is binding the eWay components together.
Steps required to bind eWay components together:
1
Double-click a Connectivity Map—in this example cmDelete—in the Project
Explorer tree. The cmDelete Connectivity Map appears in the Enterprise Designers
canvas.
2
Drag and drop the jcdDelete Collaboration from the Project Explorer to the
jcdDelete Service. The Service icon "gears" change from red to green.
3
Double-click the jcdDelete Service. The jcdDelete Binding dialog box appears.
4
Map the input FileClient (under Implemented Services) to the FileClientIN (File)
External Application. To do this, click on FileSender in the jcdDelete Binding
dialog box, and drag the cursor to the FileClientIN External Application in the
Connectivity Map. A link is now visible between FileClientIN and jcdDelete.
5
From the bpDelete Binding dialog box, map otdVSAM_1 (under Invoked Services)
to the eaVSAMOUT External Application.
6
From the jcdDelete Binding dialog box, map FileClient_1 to the FileClientOUT
External Application, as seen in Figure 60.
VSAM eWay Adapter User's Guide
Building and Deploying the prjVSAM_JCD Sample Project

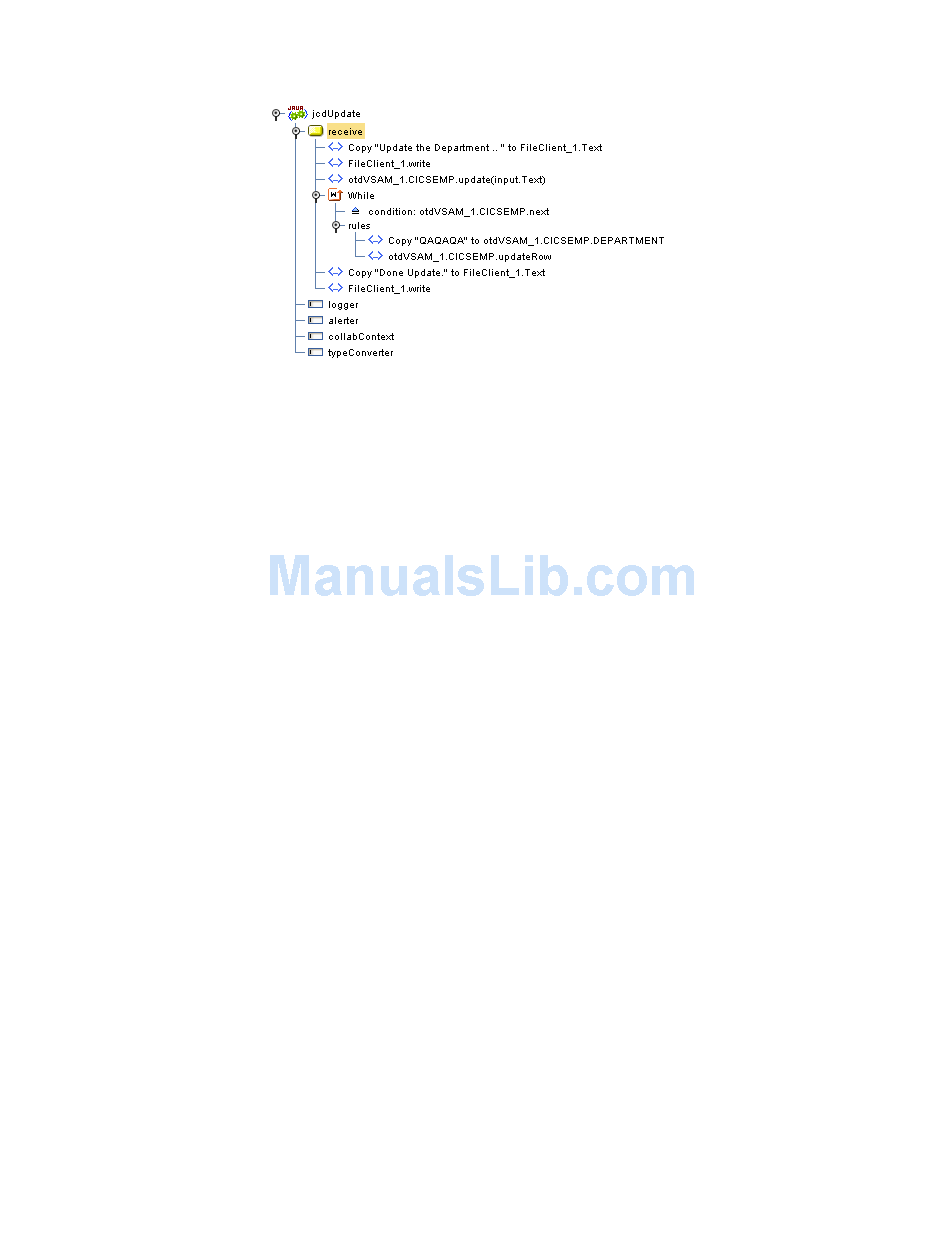

Figure 59 jcdUpdate
105
Section 7.6
