Circuit Diagram; Specifications - Yamaha RBX270F Service Manual

RBX270/270F

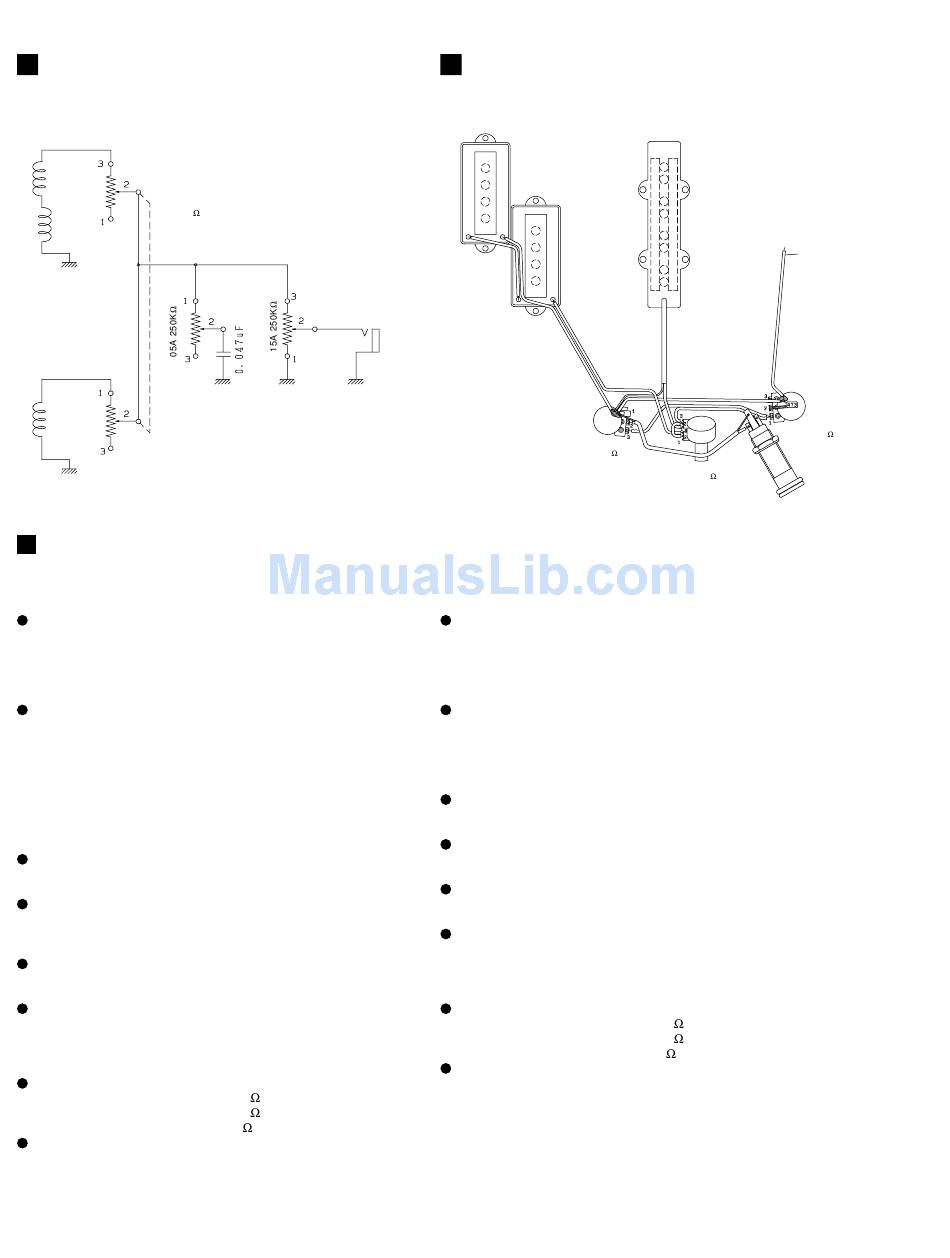

CIRCUIT DIAGRAM

FRONT PICKUP
BALANCER
1Z 250K X 2
MASTER TONE
REAR PICKUP

SPECIFICATIONS

RBX270
STANDARD SPECIFICA TIONS
Scale Length .............................. 863.6mm
Body-Neck Construction ......... Bolt On
Length ........................................ 1118mm
Width ......................................... 327mm
Net Weight ................................ 3.3kg
COLOR
Body
BL .......................................... Black
MGR ...................................... Mist Green
MRB ...................................... Mist Raspberry
MPP ...................................... Mist purple
YNS-O ................................... Yellow Natural Satin
RM ......................................... Red Metallic
Neck
NS .......................................... Natural Satin
BODY
Material ...................................... Alder
Body Depth ............................... 41mm
FINGERBOARD
Material ...................................... Rose
Fingerboard Width ................... 0-F 40.0 mm, 12-F 56.4 mm
No. of Frets ................................ 24
NECK
Material ...................................... Maple
Neck Thickness ........................ 1-F 21.0 mm, 12-F 24.4 mm
PAR TS
Hardware ................................... Chrome Plated
Nut .............................................. Urea
Bridge ........................................ Vintage Type: YP-02
Strings ........................................ Korea
CONTROLS
Volume ....................................... 15A 250K x 1
Tone ........................................... 05A 250K x 1
Balance ...................................... 1Z 250K x 1
PICKUPS
Front .......................................... Single Coil Split Type
Rear ............................................ Single Coil
Magnet
Front/Rear .............................. Ferrite
4
Upper side
MASTER VOLUME
OUTPUT JACK
BPPJ-01
WIRING
FRONT PICKUP
(S)
Upper side
WH
(N)
WH
BL
MASTER VOLUME
15A 250K
RBX270F
STANDARD SPECIFICA TIONS
Scale Length .............................. 863.6mm
Body-Neck Construction ......... Bolt On
Length ........................................ 1118mm
Width ......................................... 327mm
Net Weight ................................ 3.3 kg
COLOR
Body
BL .......................................... Black
MGR ...................................... Mist Green
Neck
NS .......................................... Natural Satin
BODY
Material ...................................... Alder
Body Depth ............................... 41mm
FINGERBOARD
Material ...................................... Rose
Fingerboard Width ................... 0-F 40.0 mm, 12-F 56.4 mm
NECK
Material ...................................... Maple
Neck Thickness ........................ 1-F 21.0 mm, 12-F 24.4 mm
PAR TS
Hardware ................................... Chrome Plated
Nut .............................................. Urea
Bridge ........................................ Vintage Type: YP-02
Strings ........................................ Korea
CONTROLS
Volume ....................................... 15A 250K x 1
Tone ........................................... 05A 250K x 1
Balance ...................................... 1Z 250K x 1
PICKUPS
Front .......................................... Single Coil Split Type
Rear ............................................ Single Coil
Magnet
Front/Rear .............................. Ferrite
REAR PICKUP
to bridge ground
BL
YE
BL
RE
RE
MASTER TONE
05A 250K
RE
RE
BALANCER
1Z 250K X 2
OUTPUT JACK
