Instructions for Installation
BEDIENUNGSANLEITUNG
10 BEDIENUNGSANLEITUNG
BEDIENUNGSANLEITUNG
BEDIENUNGSANLEITUNG
10
BEDIENUNGSANLEITUNG
10
9
8
7
6
5

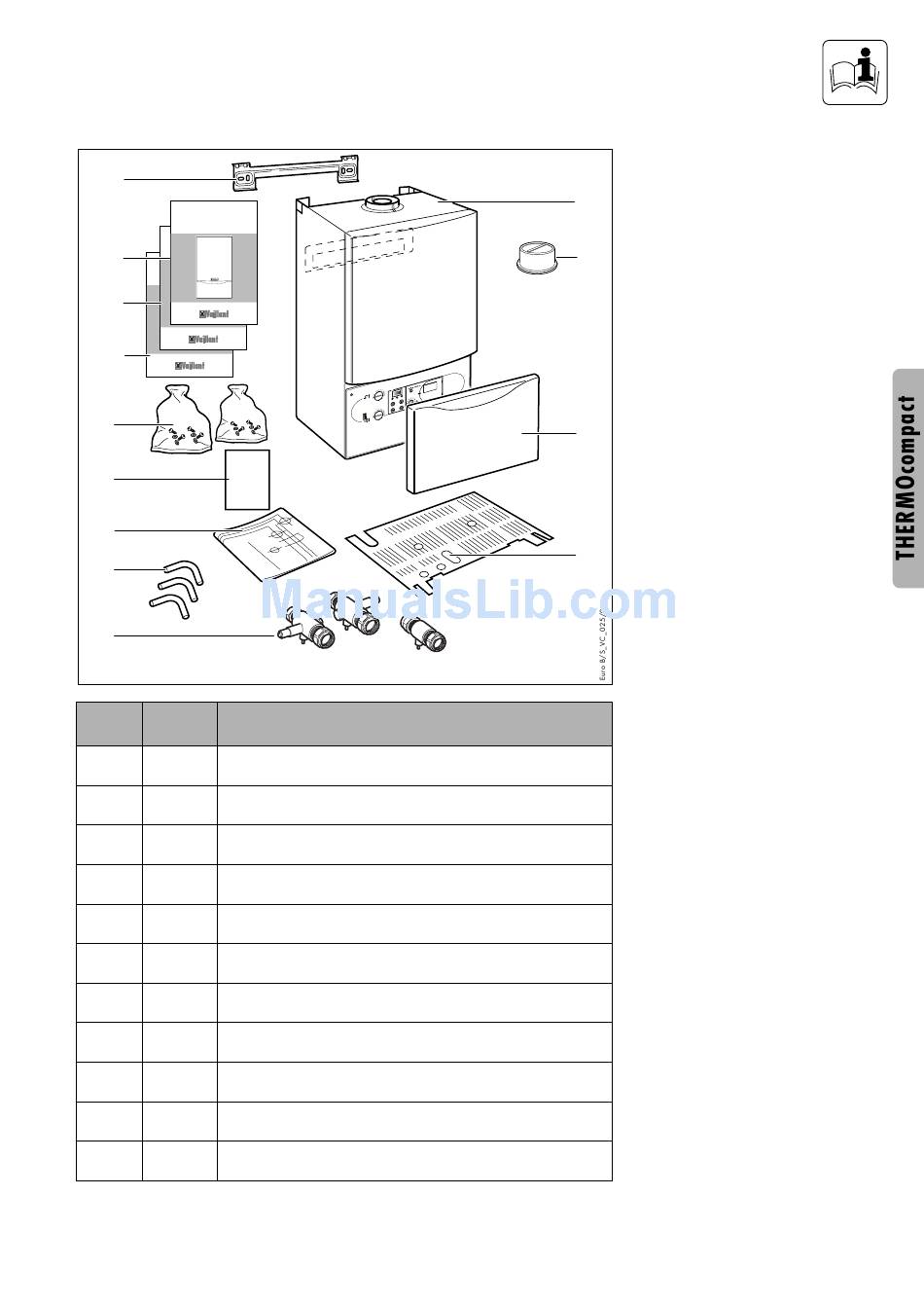

Fig. L.2: Items supplied with unit (THERMOcompact)
Item Quantity Description
1 1 Boiler
2 1 Flue restriction ring
3 1 Controls cover door
4 1 Lower cover plate (packed in bottom packaging)
5 3

Flow and return service value, gas service valve

6 3 Copper tails for gas and water pipework
7 1 Template
8 2 Guarantee Card and Benchmark log book
Installation and connection accessories and
9 1
PRV packages
Installation and Servicing, Users and Flue Installation
10 3
Instructions
11 1 Hanging bracket
Table L.2: Items supplied with unit (THERMOcompact)
o
C
VRC -VC
I
o
C
0
* for THERMOcompact 624/628 only
LIST OF CONTENTS
Contents included with
boiler (THERMOcompact)
1
Ensure that all contents are included
before commencing installation.
2
3
4
DO NOT remove the boiler from the
polystrene base at this stage.
5
