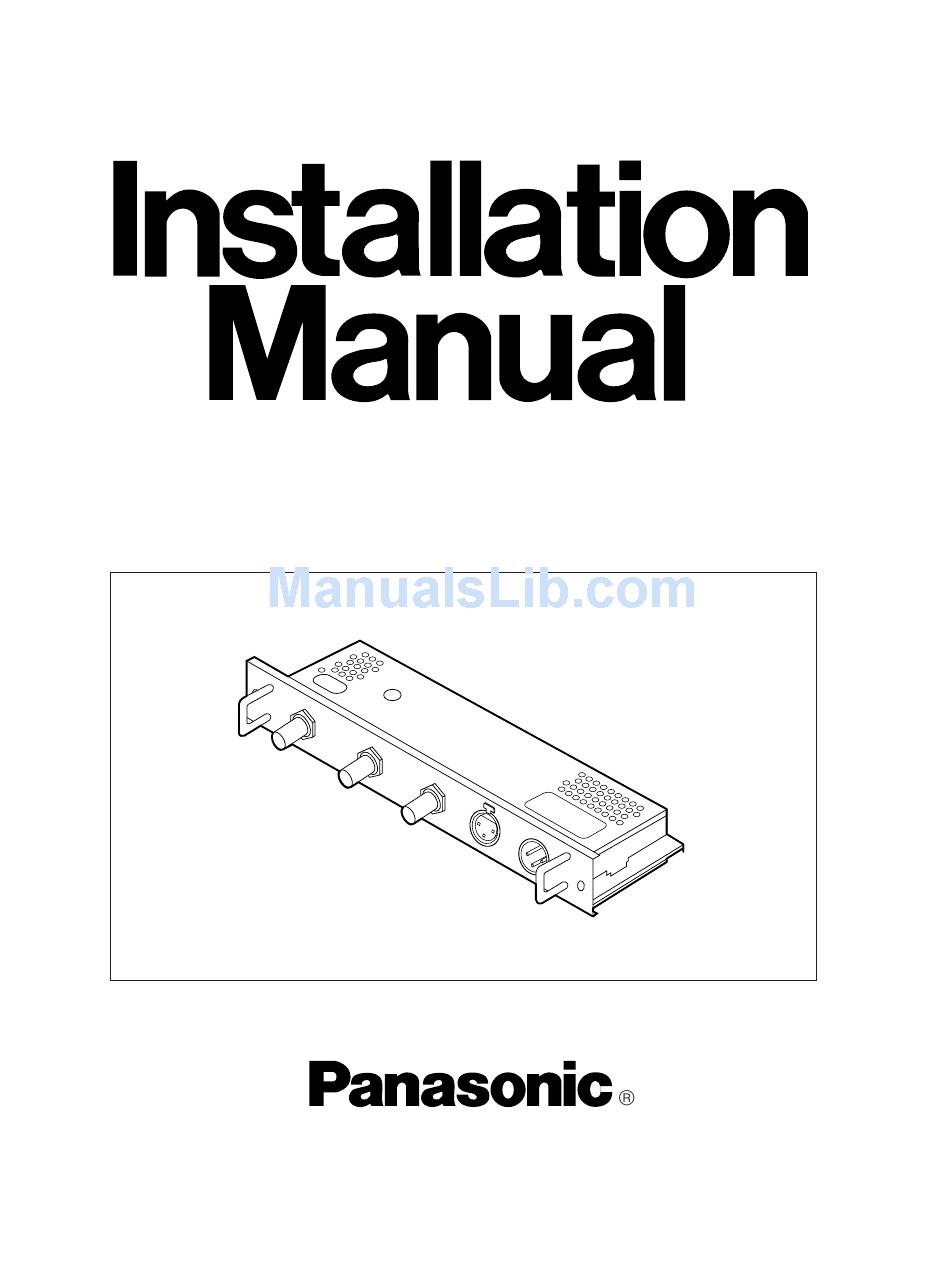

- Page 1 Nonlinear Editing System Digital I/F Board AY-PB2002 Before attempting to connect or operate this product, please read these instructions completely...
- Page 2 FEATURES • Audio/Video Digital Signal Editing is possible by installing this board to the nonlinear AV workstation unit (AY-NE2000). • The video digital signals comply with the SMPTE259M standards, and the audio digital signals comply with the AES/EBU standards. BOARD SETUP PRECAUTIONS •...
- Page 3 2. Remove the cover panel with removing 2 screws. 4. Install the Digital I/F Board into the bottom of the unit securely. Guide rail Guide rail Digital I/F Board 3. Fit the Digital I/F Board into the place where the cover panel was Board side removed.
