Safety precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

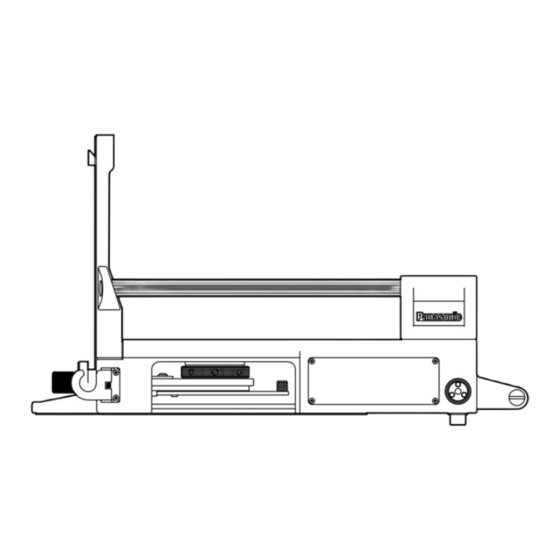

Specifications ................11 Overview The model AK-HBU931P is a build-up unit which is designed for use with the AK-HC931P multi-format camera. When installed in the multi-format camera, it enables a large lens to be mounted, thus yielding the same range of operations as that afforded by a larger camera.
Controls and their functions Front Panel 1 Lens guide The 2/3z box-type lens is attached by hooking it onto this guide. Align the guide pin of the lens with the center groove, and attach. 2 Lens anchoring knob This is rotated clockwise to anchor the lens. 3 Lens connector Lens connector (57-20360 made by DDK) Pin No.
Page 5
Controls and their functions Bottom Panel 7 Screw hole for mounting tripod (3/8-16UNC) This is used to attach the unit to a tripod or other accessory. Right Side Panel 8 Hook for securing cable The optical fiber cable from the CCU is fastened to this hook.
Page 6
Controls and their functions Left Side Panel BREAKER OUT(200VA) MAIN ALARM RESET 12OV 80Hz > < ? : Cable clamp This is used to clamp the optical fiber cable from the CCU. ; Optical fiber connector OPT FIBER connector (EDW.3K.93C.CLC made by LEMO) Pin No.
Page 7
Controls and their functions ; 4:3 MARKER switch This is the 4:3 marker ON/OFF switch. When the 4:3 marker is ON, the brightness modulation can be set to ON or OFF. < 4:3 brightness modulation level control This is used to vary the brightness modulation level outside the 4:3 marker.
Mounting methods Mounting the lens U-shaped groove Lens guide Lens#Release Lens#Lock Lens clamper Lens lock knob Loosen the lens lock knob and turn the lens clamper counterclockwise until it is horizontal. Align the guide pin at the center in the upper part of the lens back with the U-shaped groove in the front panel, and mount the lens onto the camera by fitting it onto the lens guide.
C A M S T B Y S AV E H I G H T E S T P R S T USER SEL Multi-format camera (AK-HC931P) Build-up unit (AK-HBU931P) 8z LCD viewfinder (AK-HVF931P) SD CARD Cable Cable CABLE TALLY/CALL OPEN SHORT...
External dimension drawings 23-1/15z (585 mm) VF POWER FRONT CENTER CURSOR TALLY MARKER ON/OFF RET A RET B USER SEL VF MARKER VF DETAIL MONI SEL H–POSI V–POSI WIDTH HEIGHT FILTER MENU SELECT LOCAL x0.8 12-5/8z (320 mm)
Specifications Power supply: AC 220 V (supplied from CCU) Power consumption: 8 W (main unit only) 1indicates safety information. Switch functions: AC OUT reset, viewfinder power, front tally ON/OFF, CENTER marker, CURSOR, cursor memory 1, cursor memory 2, 4:3 MARKER, ND filter selection, LOCAL, CC filter selection, menu ON/OFF, menu JOG, RET A switch, RET B switch, user, VF DETAIL, MONITOR output selection, P in P function ON/OFF, P in P position selection...
Page 12
UNIT COMPANY OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA Executive Office: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621 Southeast Region: 1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-6835 Central Region:...
