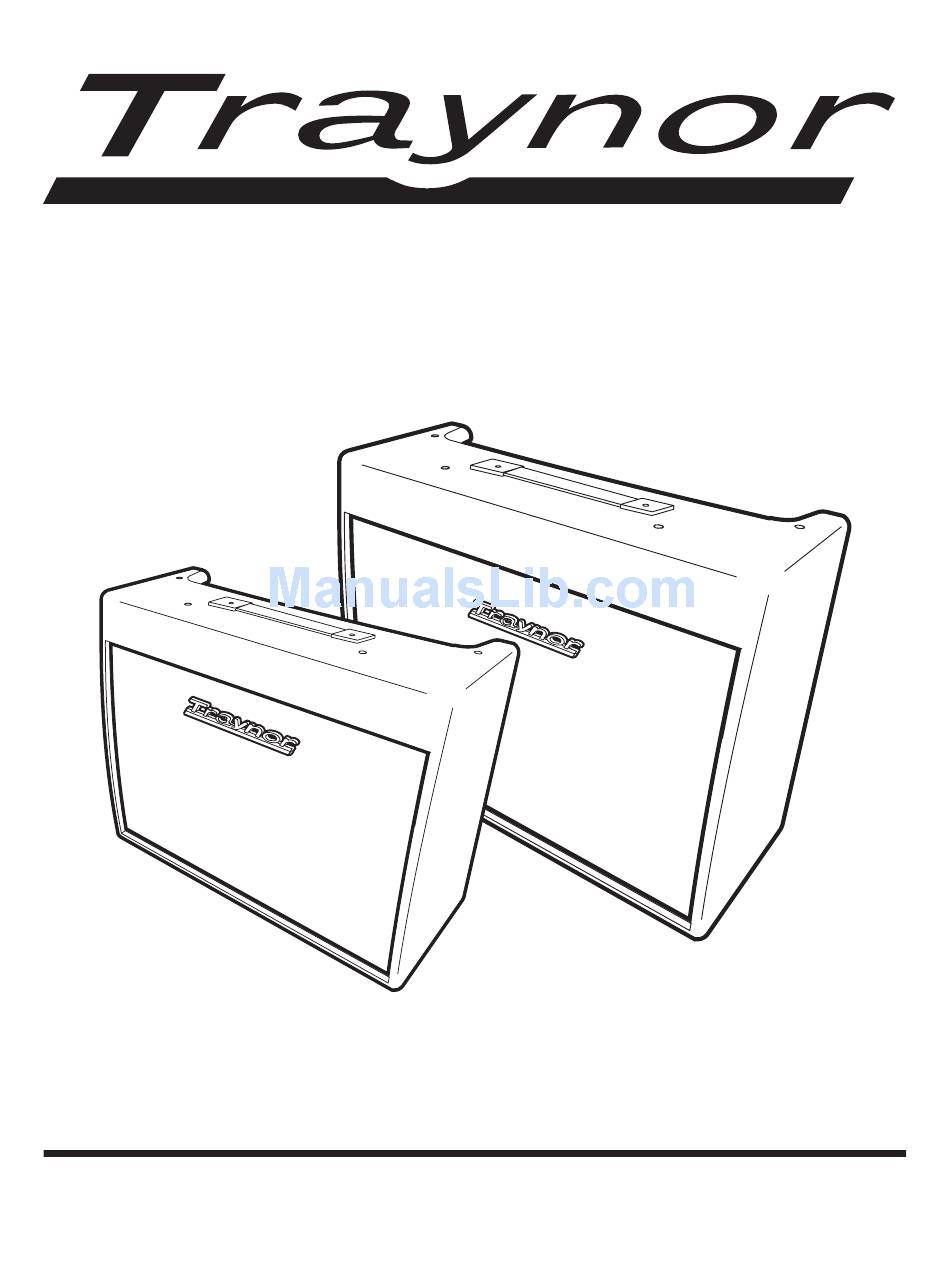

- Page 1 MODEL TYPE: YS1003 Custom Valve YCV80 A L L T U B E G U I T A R A M P L I F I E R...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.
- Page 3 The Traynor YCV80 / YCV80Q Introduction The Traynor YCV80/YCV80Q are professional all-tube guitar combos. They draw on the rich tradition of Traynor guitar amplifiers and combine the best of vintage design with modern principles, manufacturing techniques, and technology. Features • 100% Designed and Manufactured in North America.
-
Page 4: Chassis Layout
SAME TYPE FUSE AND RATING DISCONNECT POWER 12AX7 12AX7 12AX7 ATTENTION: UTILISER UN FUSIBLE DE BEFORE SERVICING! RECHANGE DE MEME TYPE ET CALIBRE DEBRANCHER L’APPEREIL AVANT D’ENLEVER LES COUVERCLES! TRAYNOR YCV80 POWER Send Return FUSE Footswitch 5881 5881 5881 5881... -
Page 5: Master Controls
Boost Switch A boost circuit is provided to help achieve ‘a-bit-more’ overdrive for leads. The boost can be selected via the front panel switch or through the supplied footswitch pedal. A Red LED illuminates to indicate when the boost is active. Channel 1 Tone Controls The Treble, Bass, and Middle tone controls are to help you shape your sound. - Page 6 The Loop-Thru jack is a “send” and “return” all in one jack. As a patch point it puts the connected effects in series with the preamp and power amp sections of the YCV80/80Q. To connect an effect here, use a “Y Insert” cable configured as follows; ¼-inch stereo (TRS) male to two ¼-inch mono male jacks.
- Page 7 Specifications Type YCV80 Tube Guitar Amplifier Cabinet Program Power (Watts) 80 Cabinet Impedance (ohms) YCV80 = 4, YCV80Q = 8 Minimum Impedance (ohms) Speaker Configuration - LF (Size / Power) YCV80 = 2 x 12 inch Celestion 70/80 YCV80Q = 4 x 10 inch Celestion Input Channels 2 Channel 1 - inputs 1/4 inch phone Channel 1 - controls Gain, Volume,Treble, Mid, Bass...
- Page 8 Traynor YCV80 / YCV80Q Introduction Le Traynor YCV80/YCV80Q est un amplificateur professionnel à lampe pour guitare. Il s’inspire d’une riche tradition d’amplificateur pour guitare Traynor et combine les éléments les plus convoités des designs classiques et modernes avec les nouvelles technologies de fabrication.
-
Page 9: Panneau Arrière
SAME TYPE FUSE AND RATING DISCONNECT POWER 12AX7 12AX7 12AX7 ATTENTION: UTILISER UN FUSIBLE DE BEFORE SERVICING! RECHANGE DE MEME TYPE ET CALIBRE DEBRANCHER L’APPEREIL AVANT D’ENLEVER LES COUVERCLES! TRAYNOR YCV80 POWER Send Return FUSE Footswitch 5881 5881 5881 5881... - Page 10 Commutateur “Boost” Un circuit de survoltage est inclut pour vous permettre d’obtenir un son plus saturé. Il peut être activé par le commutateur du panneau de contrôle ou par le commutateur au pied fournit avec l’appareil. Quand le circuit de survoltage est actif, une DEL Rouge s’illumine. Contrôle de Tonalité...
- Page 11 La prise Loop-Thru agit comme prise d'envoi et de retour. Ce point de raccordement met l'effet branché en série entre la section de préamplificateur et celle de l'amplificateur de puissance du YCV80/80Q. Pour brancher un appareil d'effet à cette prise, utilisez un câble de raccordement type "Y Insert"...
- Page 12 Specifications Type Amplificateur à lampe YCV80Q Puissance Nominale de l’enceinte (Watts) Impédance de l’enceinte (ohms) YCV80 = 4, YCV80Q = 8 Impédance minumum (ohms) Configuration de haut-parleur- YCV80 = 2 x 12 Celestion 70/80 YCV80Q = 4 x 10 pouces Celestion Graves(Dimension / Puissance) Canaux d’entrées Canal 1 - entrées...
- Page 13 YCV80 SUGGESTED SETTINGS...
- Page 15 SETTINGS USER YCV80...
- Page 16 YCV80 USER SETTINGS...
- Page 17 Hello Yes, you are unpacking me correctly This unit was intentionally packed this way to help the tubes stay seated during shipping thank-you Yorkville staff...
-
Page 19: Two Year Warranty
Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge. - Page 20 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-YCV80-YCV80Q-00-3v3 • April 12/2011...
