Summary of Contents for Traynor DYNABASS 400

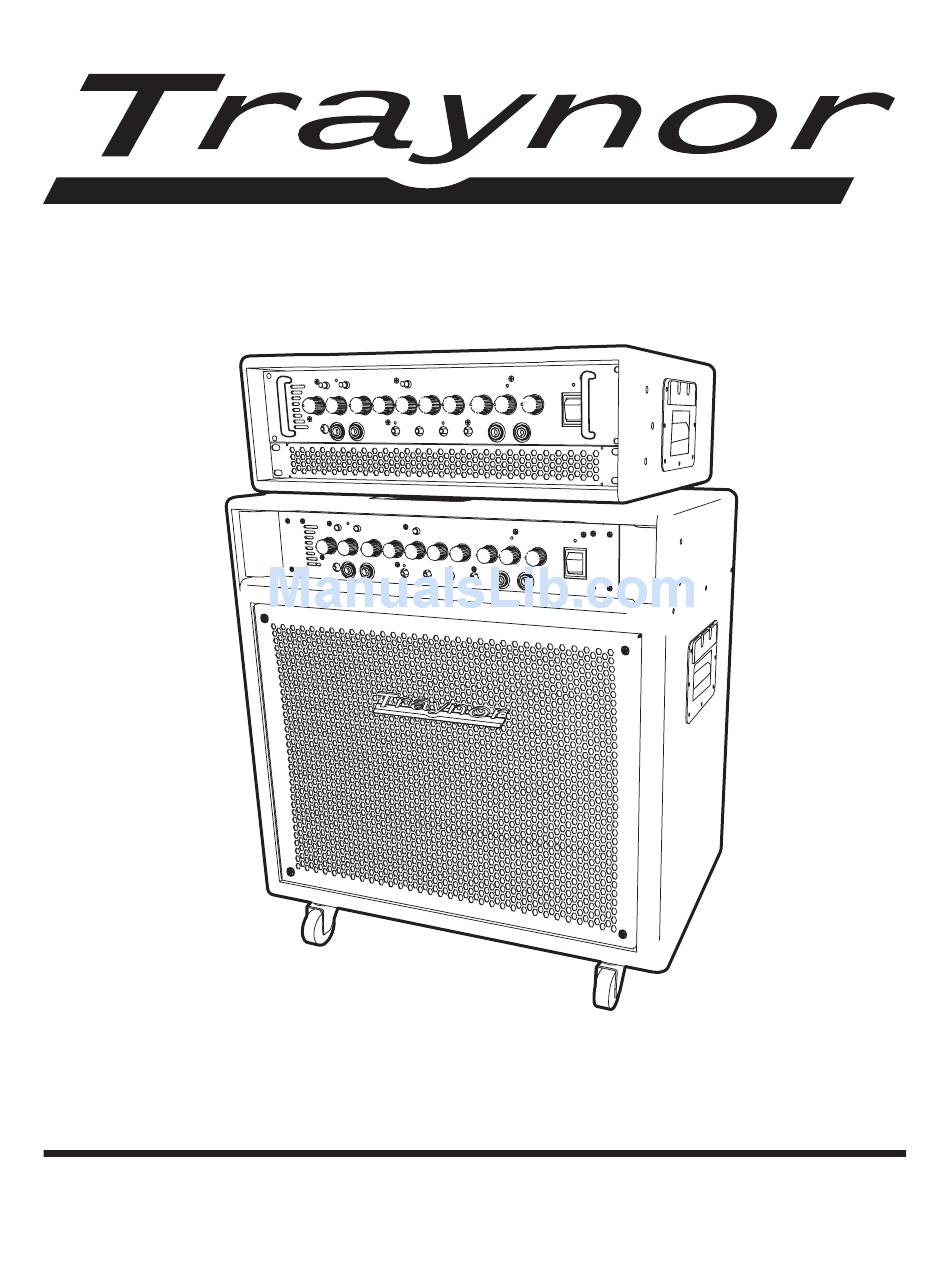

- Page 1 MODEL TYPE: YS1027 Dyn aB ass 400 B a s s G u i t a r a m p l i f i e r...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, The exclamation point within an equilatereal within an equilateral triangle, is intended to alert triangle is intended to alert the user to the the user to the presence of uninsulated presence of important operating and “dangerous voltage”...
- Page 3 EFX Loop DynaBass 400/400T/400H Thank you for choosing the DynaBass 400. You’ll discover this advanced bass amplifier has the potential to deliver a wide sonic spectrum perfect for your particular performance needs. Best of all, it has the ability to sound “right” with a minimum amount of knob twirling.
- Page 4 Compressor Distortion Freq 400 Hz Gain MASTER 1.5k Bass Low-Mid Hi-Mid Treble Scoop Effects Power Boost Inputs Footswitch Tuner Post-EQ Tube DynaBass Tip: Pre-EQ Dist. 400H Solid-State Ring: Pre-amp Mute Line Out Distortion Limiter Effects Lift Z1003 / 1v1 DESIGNED AND MANUFACTURED BY YORKVILLE SOUND TORONTO, CANADA SPEAKON...
- Page 5 1. Preamp Select Switch Depending on your preference, choose either solid-state or tube gain input for the preamp. 2. 0dB / Passive and -6dB / Active Inputs We suggest the following: use the 0dB/Passive input for bass guitars with passive electronics, like single-coil and humbucking pickups;...
- Page 6 6. Tone Controls Each tone control permits a wide range of adjustment. The five overlapping controls cover the entire audio spectrum. Each tone control permits a wide range of sonic adjustment. The Bass adjusts the level of the low frequency range, Low Mid the next range up, Hi Mid covers higher notes and middle harmonics and the Treble control regulates the upper harmonic range.
- Page 7 XLR output. 17. Amp In ¼-inch Jack The balanced Amp In jack is located on the rear panel of the DynaBass 400. The Amp In jack provides a direct path to the DynaBass 400’s power amplifier, bypassing the preamp. The Master control still controls the overall output level.
- Page 8 (tweeter active). You be the judge of what sound you prefer! 21. AC Power Receptacle The DynaBass 400 is equipped with a standard grounded IEC power receptacle. Only use the supplied removable power cord or one that uses a minimum of 16 gauge wire.
- Page 9 EFX Loop DynaBass 400/400T/400H Merci d’avoir choisi le DynaBass 400. Vous découvrirez que cet amplificateur pour guitare basse a la capacité de couvrir une gamme sonore étendue qui s’avèrera parfaite pour vos besoins uniques. De plus, il vous permettra l’obtention du son parfait avec un minimum d’ajustement.
- Page 10 Compressor Distortion Freq 400 Hz Gain MASTER 1.5k Bass Low-Mid Hi-Mid Treble Scoop Effects Power Boost Inputs Footswitch Tuner Post-EQ Tube DynaBass Tip: Pre-EQ Dist. 400H Solid-State Ring: Pre -amp Mute Line Out Distortion Limiter Effects Lift Z1003 / 1v1 DESIGNED AND MANUFACTURED BY YORKVILLE SOUND TORONTO, CANADA...
- Page 11 1. Sélecteur de Préamplificateur Selon vos préférences, vous pouvez choisir le mode de gain d’entrée à semi-conducteur ou à lampe pour le préamplificateur. 2. Entrées 0dB / Passive et -6dB / Active Nos suggestions : Utilisez l’entrée 0dB pour les guitares basses avec circuit électronique passif normal, comme sur les basses dotées de micro à...
- Page 12 Le contrôle Drive Mix devient actif quand le mode Distor tion a été activé. Ce contrôle mélange une sonorité claire sous-jacente en dessous du son saturé. Lorsque réglé à la position Dry, sens anti-horaire, le signal clair domine le mélange, sans signal saturé. Quand vous tournez le contrôle dans le sens horaire, vers la région Wet, le signal saturé...
- Page 13 XLR. 17. Prise Amp In ¼ de Pouce L’entrée symétrique Amp In est située au panneau arrière du DynaBass 400. La prise Amp In offre un chemin direct à la section d’amplificateur de puissance du dynabass 400, contournant...
- Page 14 Plusieurs DynaBass 400 peuvent être raccordés ensemble en utilisant le signal à la prise de sortie ligne symétrique XLR du premier DYNABASS 400 pour acheminer le signal à la prise d’entrée ligne sur le DynaBass 400 additionnel.
- Page 15 DynaBass 400 combo: 15-inch / 250 W DynaBass 400T combo: 2 x 10-inch / 200 Watts each DynaBass 400 combo: 3.5-inch Tweeter / 50 Watts Speaker Configuration - HF (Size / Power) DynaBass 400T combo: 3.5-inch Tweeter / 50 Watts...
- Page 16 DynaBass 400 User Settings...
- Page 17 Settings User DynaBass...
- Page 18 DynaBass 400 User Settings...
- Page 19 Settings User DynaBass...
- Page 21 Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.
- Page 22 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Novv 20/2008 • Manual-Owners-DynaBass400-400T-400H-00-1v6...
