Summary of Contents for Pyle PLND35

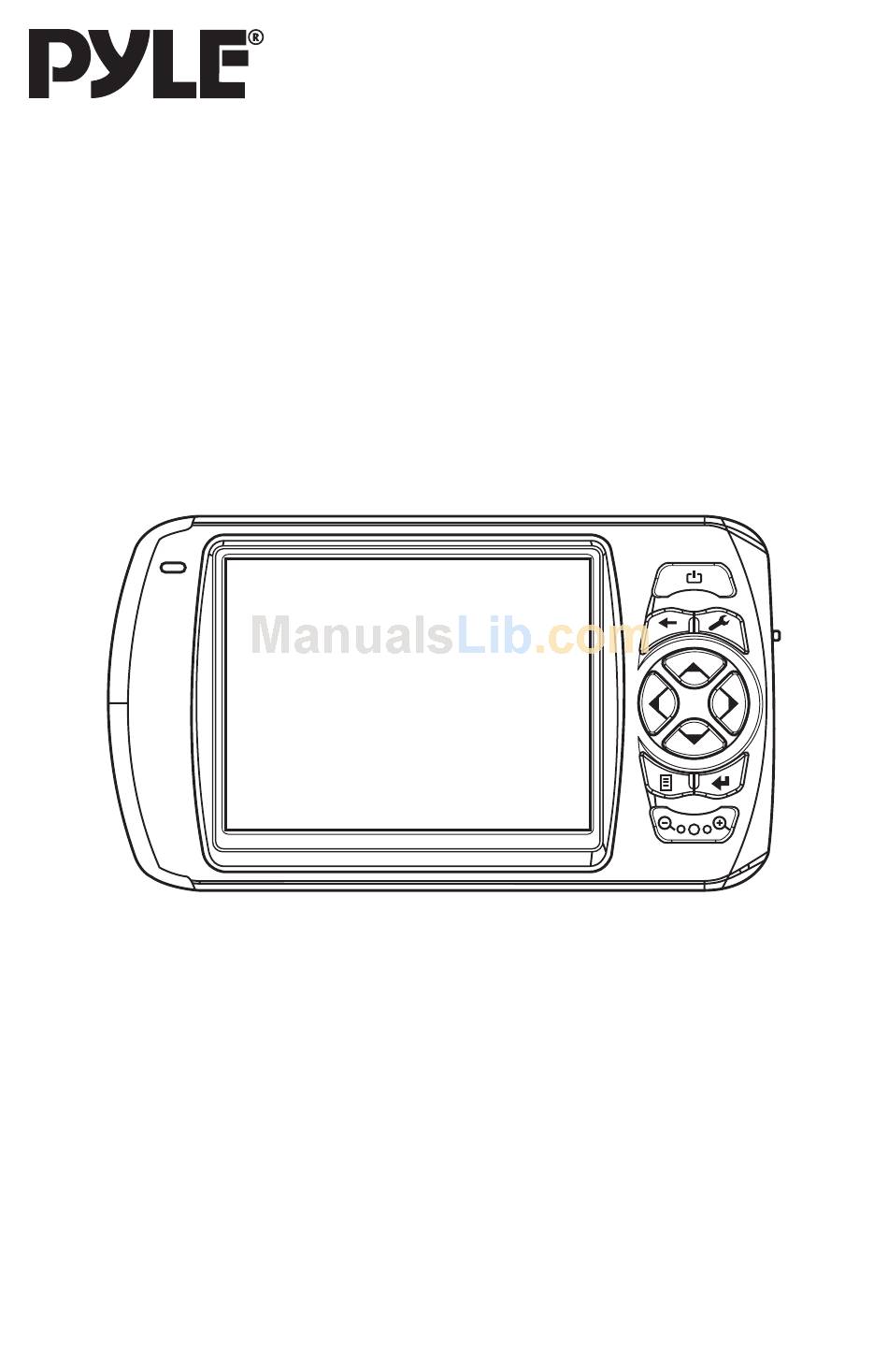

- Page 1 PLND35 OPERATION MANUAL www.pyleaudio.com...
-
Page 2: Table Of Contents
Front View ...9 Back View ...10 Bottom View...11 Left View ...11 Right View ...11 GPS (Global Positioning System)...12 Memory Card Quick Installation...12 Starting Navigation...12 Software Installation On Your PC...13 Contents of Navigation CDs ...13 Installing Microsoft ActiveSync...13 PLND35 Operation manual... -
Page 3: Safety Information
• Warning: Danger of explosion if rechargeable batteries are not charged properly. Only replace with the same type of battery or a similar type recommended by the manufacturer. SAFETY INFORMATION PLND35 Operation manual... - Page 4 • Arrange cables so that no-one can tread on them or trip over them. • Do not place any items on the cable. WARNING When the unit is not in use for a long time, please recharge the battery every other time, otherwise the battery’s lifetime would be shortened. PLND35 Operation manual...
-
Page 5: Installation
2. Pull the card out without touching the contacts. 3. Store the memory card in the packing or in another safe location. • Memory cards are very fragile. Take care not to dirty the contacts and not to force the card. INSTALLATION PLND35 Operation manual... - Page 6 • Take care that the cable does not impede any safety components. • The display of your navigation system may show “light re-flexions”. Please take care of not being “blinded” during operation. • Take care that the cable does not impede any safety components. PLND35 Operation manual...
- Page 7 3. Place the navigation system into the car holder by placing it initially in the lower noses and then pressing it down gently until the holder clicks in. Suction Suction Flexible Holder INSTALLATION PLND35 Operation manual...
- Page 8 2. Insert the power adapter (2) now into the cigarette lighter socket and ensure, that it will not lose contact while driving. This could cause a malfunction. • Hint: Remove the power adapter from the cigarette lighter socket when ending a trip or when parking the car for a extended period of time. PLND35 Operation manual...
-
Page 9: Views
Press it to enter into the selected item. Press it to enter into the main menu. Display the output of your appliance. Tap the screen with the stylus to select menu commands or enter information. Button to zoom out. Button to zoom in. VIEWS PLND35 Operation manual... -
Page 10: Back View
VIEWS Back View 11. Stylus 12. Loudspeaker 13. GPS Antenna PLND35 Operation manual Take the pen out of its compartment in order to use it, and replace it after use. The pointer pen is required for operating the touch screen. -
Page 11: Bottom View
Knob to adjust the voice and visual prompts’ volume level when in navigation status. Accepts an optional SD (Secure Digital) or MMC (Multi Media Card) Card for removable storage. Connects to a pair of stereo headphones. Connection to external power supply. VIEWS PLND35 Operation manual... -
Page 12: Gps (Global Positioning System)
Even when GPs signal reception is indicated the navigation could be imprecise. In all future instances it will take about 30-60 seconds until a correct GPS-signal is available, sufficient “sight” of the satellite is a prerequisite. PLND35 Operation manual... -
Page 13: Software Installation On Your Pc
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive). GPS (Global Positioning System) PLND35 Operation manual...
