Summary of Contents for Pyle PLND42

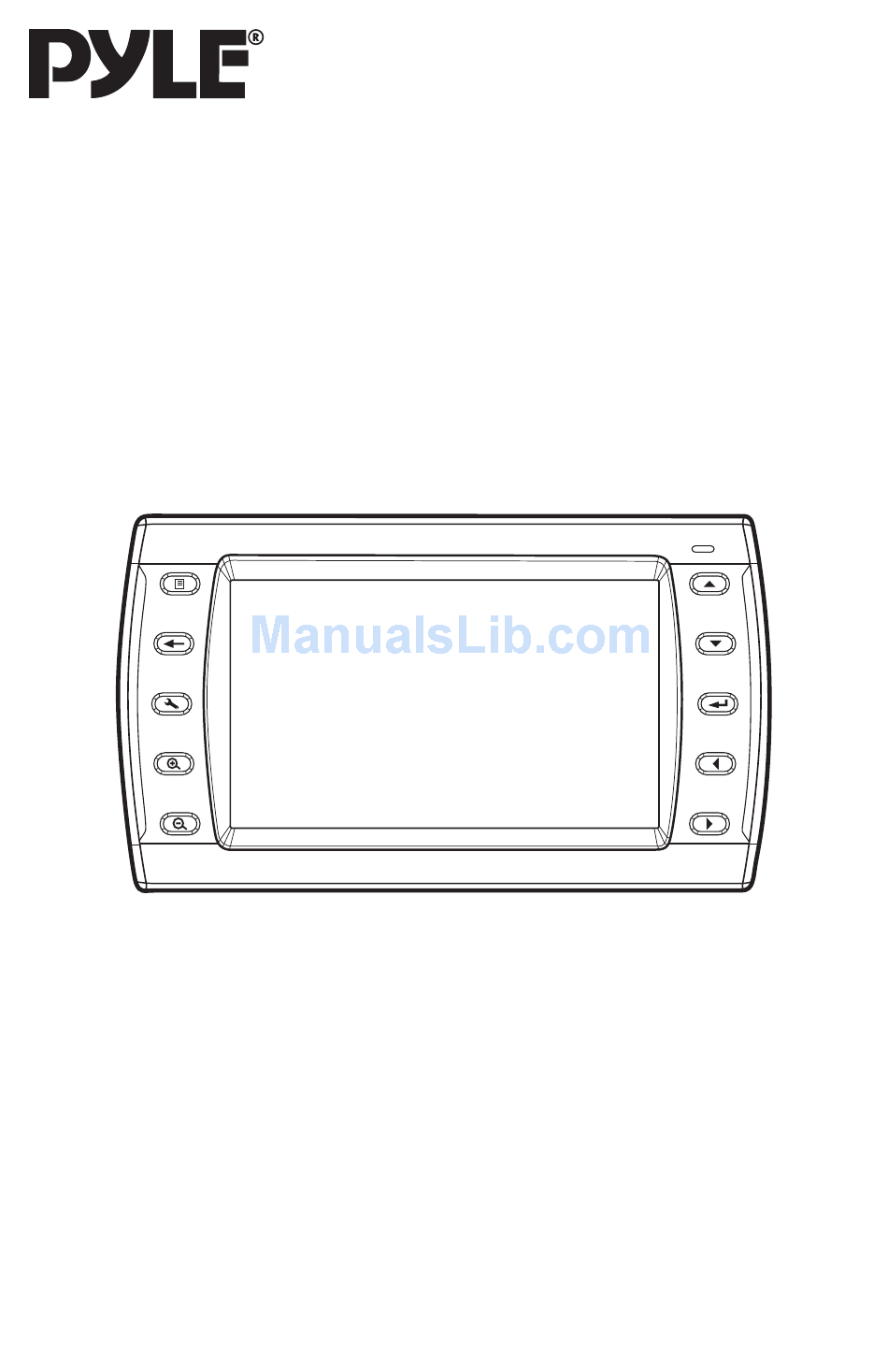

- Page 1 PLND42 OPERATION MANUAL www.pyleaudio.com...
-
Page 2: Table Of Contents
Back View ...10 Bottom View...11 Left View ...11 Right View ...11 GPS (Global Positioning System) ...12 Memory Card Quick Installation ...12 Starting Navigation ...12 Software Installation On Your PC...13 Contents of Navigation CDs ...13 Installing Microsoft ActiveSync...13 PLND42 Operation manual... -
Page 3: Safety Information
• Warning: Danger of explosion if rechargeable batteries are not charged properly. Only replace with the same type of battery or a similar type recommended by the manufacturer. Never open the rechargeable battery. Do not throw the rechargeable battery into fire. SAFETY INFORMATION PLND42 Operation manual... - Page 4 • Arrange cables so that no-one can tread on them or trip over them. • Do not place any items on the cable. WARNING When the unit is not in use for a long time, please recharge the battery every other time, otherwise the battery’s lifetime would be shortened. PLND42 Operation manual...
-
Page 5: Installation
2. Pull the card out without touching the contacts. 3. Store the memory card in the packing or in another safe location. • Memory cards are very fragile. Take care not to dirty the contacts and not to force the card. INSTALLATION PLND42 Operation manual... - Page 6 • Plan routes before you leave. If you want to play a new route while on the road stop driving. • In order to receive the GPS signal correctly, metal objects may not hinder reception. Attach the navigation system onto the inside of the windscreen or near the windscreen with the sucker.
- Page 7 5. Place the navigation system into the car holder by placing it initially in the lower noses and then pressing it down gently until the holder clicks in. Connecting The Navigation System In The Car Suction Suction Flexible Holder INSTALLATION PLND42 Operation manual...
- Page 8 This could cause a malfunction. • Hint: Remove the power adapter from the cigarette lighter socket when ending a trip or when parking the car for a extended period of time. Otherwise the car PLND42 Operation manual...
-
Page 9: Views
6. Zoom out Button Button to zoom out the window. 7. Enter Button Press it to enter into the selected item. 8. Navigation-pad Moves up/ down/ left/ right by pushing the corresponding area of the pad. VIEWS PLND42 Operation manual... -
Page 10: Back View
10. Stylus Take the pen out of its compartment in order to use it, and replace it after use. The pointer pen is required for operating the touch screen. 11. Loudspeaker Plays back language statements and warnings. PLND42 Operation manual... -
Page 11: Bottom View
Connects to a pair of stereo headphones. Connection to external power supply. Interface for connecting to a PC by means of the ActiveSync Cable (for data matching) Accepts an optional SD (Secure Digital) or MMC (Multi Media Card) Card for removable storage. VIEWS PLND42 Operation manual... -
Page 12: Gps (Global Positioning System)
• Note: Please note that your appliance is preset to not shut down automatically after a few minutes without activity. You can Change this preset in the Settings mode. • If the GPS receiver has not been active for some hours, it must orientate itself again. This process may take a while. -
Page 13: Software Installation On Your Pc
Note: The GPS-receiver will require some minutes for initialization when deployed for the first time. Even when GPS signal reception is indicated the navigation could be imprecise. In all future instances it will take about 30-60 seconds until a correct GPS-signal is available, sufficient “sight” of the satellite is a prerequisite.
