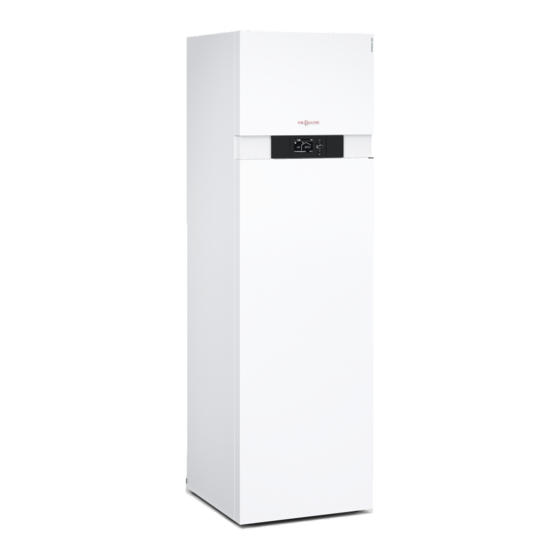

Viessmann VITOCAL 222-G Technical Manual

Compact heat pump 5.9 to 10.3 kw

Hide thumbs Also See for VITOCAL 222-G:

User manual (236 pages)

Installation and service instructions manual (132 pages)

Installation and service instructions for contractors (92 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Viessmann VITOCAL 222-G

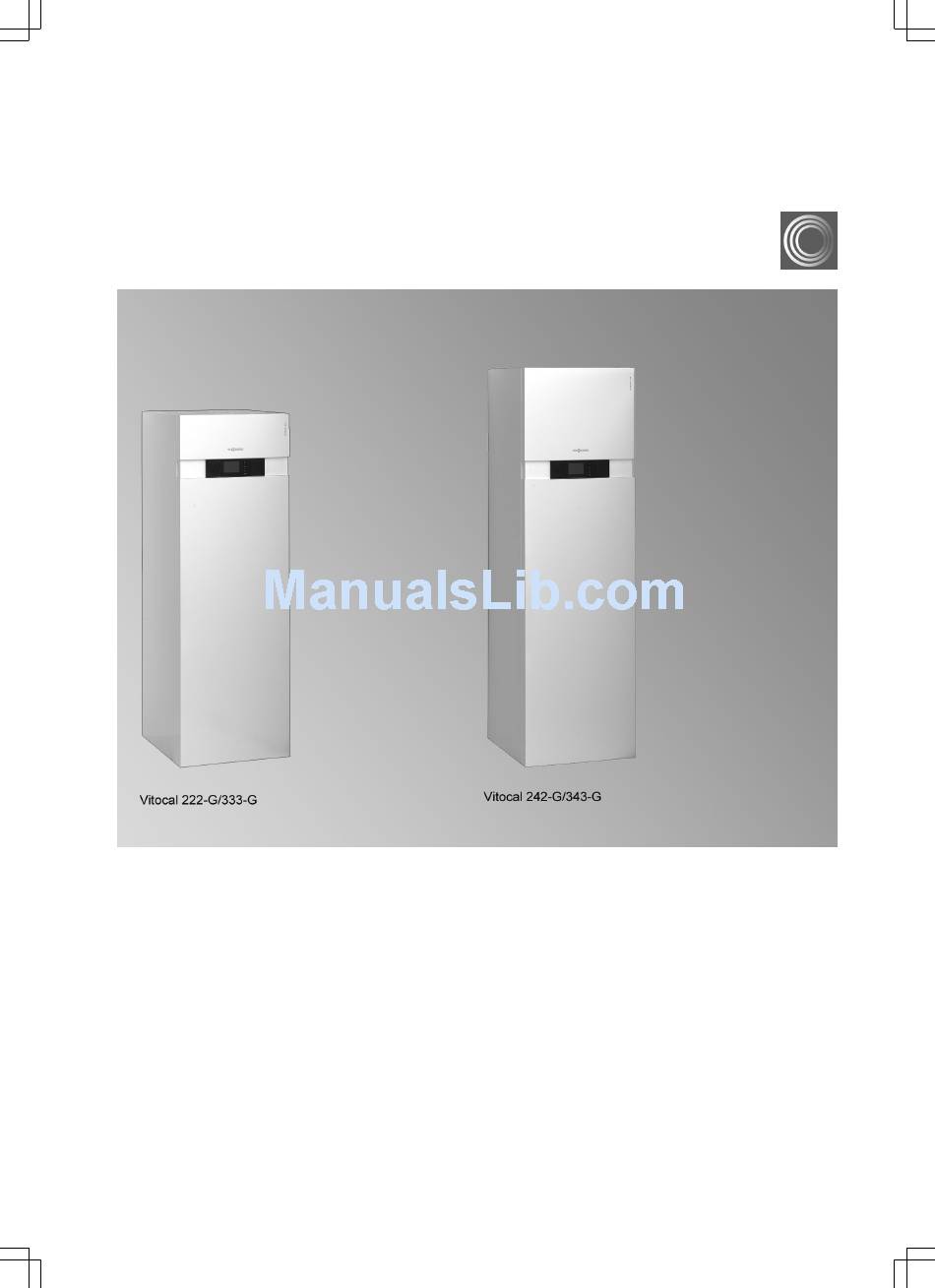

Page 1 VITOCAL 242-G for natural cooling VITOCAL 343-G Compact heat pump ■ As per Vitocal 222-G, additionally prepared for utilisation of solar energy Compact heat pump DHW cylinder with 220 litre capacity As per Vitocal 333-G, additionally prepared for utilisation of ■...
Page 2: Table Of Contents
4. 1 Product description ....................17 4. 2 Specification ......................18 ■ Specification ......................18 ■ Dimensions ......................21 Vitocal 222-G/242-G output dia- 5. 1 400 V appliances ...................... 22 grams 5. 2 230 V appliances ...................... 25 Vitocal 222-G/242-G pump curves 6.
Page 3 Index (cont.) 11. 6 Cooling ........................47 ■ NC-Box ......................... 47 ■ Fan convectors Vitoclima 200-C ................48 11. 7 Additional accessories ....................51 ■ Platform for unfinished floors ................51 ■ Drain outlet kit ....................... 51 ■ Casing panels (side) ..................... 51 ■...
Page 4 ■ LON connecting cable for data exchange between control units ......84 ■ Extension of the connecting cable ................ 84 ■ Terminator ......................84 ■ Three-phase monitor (only Vitocal 222-G/242-G) ..........84 Appendix 14. 1 Regulations and Directives ..................84 14.
Page 5: Principles 1. 1 Heat Yield
Principles 1.1 Heat yield Thermal flux Ground Primary Cooling Heating circuit circuit system well (brine) circuit The ground as a heat source Water as a heat source (well circuit) Flat-plate collectors or geothermal probes extract heat from the The water circulating in the well circuit transfers the heat to the primary ground.
Page 6: Operating Modes
Drilling contractors certified according to the DVGW Code of Practice Under standard hydro geological conditions, an average extraction W 120 should be engaged to carry out the drilling work. Viessmann capacity of 50 W/m probe length can be assumed for geothermal probe recommends the work to be carried out by the geothermal energy systems (according to VDI 4640).
Page 7: Drying Buildings (Higher Heat Demand)
Principles (cont.) Cover ratio in mono-energetic operation Cover ratio of dual mode operation 90 100 Heat pump proportion of the maximum Heat pump proportion of maximum output (DIN EN 12831) in % output (DIN EN 12831) in % Cover ratio of the heat pump in % of the annual heat load (heating only) Cover ratio of the heat pump in % of the annual heat load (heating only) of a standardised domestic building, subject to the heat pump heating of a standardised domestic building, subject to the heat pump heating...
Page 8: Coefficient Of Performance And Seasonal Performance Factor
Principles (cont.) Screed drying In water/water heat pumps, it is generally sufficient to increase the Top covers (such as tiles, parquet etc.) permit only minor residual pump rate to cover the higher heat demand. moisture in the screed prior to their application. Screed drying also requires a higher heat demand.
Page 9: Noise Development
Principles (cont.) Natural cooling is possible with the following systems: Temperature in °C ■ Underfloor heating systems on the surface of the ground ■ Fan convectors ■ Chilled ceilings 1 May 1 Nov. ■ Concrete core tempering 1 Feb. 1 Aug. The ambient air can only be dehumidified in conjunction with the nat- ural cooling function if fan convectors are connected (condensate drain required).
Page 10: Sound Power Level And Sound Pressure Level
Principles (cont.) Structure-borne noise, liquid-borne noise Mechanical vibrations present in equipment, such as machine and building components as well as in liquids, are transmitted through them and radiated out by them at different points as airborne noise. Airborne noise Sound sources (equipment in which vibrations are present) create mechanical vibrations in the air that propagate in wave form and are audible to the human ear at different levels.
Page 11: Propagation Of Sound In Buildings
Principles (cont.) Propagation of sound in buildings In buildings, sound generally results from the transmission of structure- borne noise via the floors and walls. The sound emissions from light wells frequently not only lead to disturbances around the building but also inside the owner's property.
Page 12: Product Overview 2. 1 Product Features/Standard Delivery
Product overview 2.1 Product features/standard delivery Function Vitocal 222-G 242-G 333-G 333-G NC 343-G Optional operation with geothermal º º º º º probe Optional operation with geothermal col- º º º º º lector Instantaneous heating water heater Accessories Accessories Accessories Accessories...
Page 13: Vitocal 222-G 3. 1 Product Description
Vitocal 222-G 3.1 Product description A Hermetically sealed Compliant scroll compressor B Secondary pump (heating water) C Primary pump (brine) D Three-way diverter valve "heating/DHW" E Internal indirect coil for cylinder heating F Weather-compensated, digital heat pump control unit Vitotronic 200, type WO1A G DHW cylinder with 170 litres capacity ■...
Page 14: Specification
Vitocal 222-G (cont.) 3.2 Specification Specification Vitocal 222-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 Heating output data at 5 K spread (to EN 14511, B0/W35 °C) Rated heating output 10.0 Refrigerating capacity Power consumption 1.40 1.84 2.32...
Page 15 Vitocal 222-G (cont.) Vitocal 222-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 Connections Primary flow and return (brine) Cu 28 x 1 Heating flow and return Cu 28 x 1 Cold water, hot water ¾ DHW circulation Sound power level (at B0/W35 °C)
Page 16: Dimensions
Vitocal 222-G (cont.) Vitocal 222-G, 230 V appliances Type BWT 106 BWT 108 BWT 110 Connections Primary flow and return (brine) Cu 28 x 1 Heating flow and return Cu 28 x 1 Cold water, hot water ¾ DHW circulation Sound power level (at B0/W35 °C)
Page 17: Vitocal 242-G 4. 1 Product Description
Vitocal 242-G 4.1 Product description A Hermetically sealed Compliant scroll compressor B Secondary pump (heating water) C Primary pump (brine) D Three-way diverter valve "heating/DHW" E Cylinder primary pump with PWM control F Solar indirect coil G Weather-compensated, digital heat pump control unit Vitotronic 200, type WO1A H Heating lance for cylinder heating K DHW cylinder with 220 litre capacity...
Page 18: Specification
Vitocal 242-G (cont.) 4.2 Specification Specification Vitocal 242-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 Heating output data at 5 K spread (to EN 14511, B0/W35 °C) Rated heating output 10.0 Refrigerating capacity Power consumption 1.40 1.84 2.32 Coefficient of performance ∊...
Page 19 Cold water, hot water ¾ DHW circulation Heating water flow and return, solar thermal system Viessmann pipe sleeve DN 20 multi-connect system DHW cylinder Capacity Constant DHW output for heating DHW from 10 to 60 °C (B2/W55 °C) DHW performance factor N to DIN 4708 Max.
Page 20 Cold water, hot water ¾ DHW circulation Heating water flow and return, solar thermal system Viessmann pipe sleeve DN 20 multi-connect system DHW cylinder Capacity Constant DHW output for heating DHW from 10 to 60 °C (B2/W55 °C) DHW performance factor N to DIN 4708 Max.
Page 21: Dimensions
Vitocal 242-G (cont.) Dimensions A DHW F Secondary circuit flow (heating water) B DHW circulation G Secondary circuit return (heating water) C Cold water H Solar circuit flow D Primary circuit return (heat pump brine outlet) K Solar circuit return E Primary circuit flow (heat pump brine inlet) Note To connect the hydraulic lines (D to G) on-site, use the straight connectors (standard delivery).
Page 22 Vitocal 222-G/242-G output diagrams 5.1 400 V appliances Note The COP data in the tables and diagrams was calculated with reference to DIN EN 14511. Type BWT 106 Brine inlet temperature in °C A Power consumption B Refrigerating capacity Brine inlet temperature in °C C Heating output = 35°C...
Page 23 Vitocal 222-G/242-G output diagrams (cont.) Type BWT 108 Brine inlet temperature in °C A Power consumption B Refrigerating capacity Brine inlet temperature in °C C Heating output = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C...
Page 24 Vitocal 222-G/242-G output diagrams (cont.) Type BWT 110 Brine inlet temperature in °C A Power consumption B Refrigerating capacity Brine inlet temperature in °C C Heating output = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C...
Page 25: Grams 5. 2 230 V Appliances
Vitocal 222-G/242-G output diagrams (cont.) 5.2 230 V appliances Note The COP data in the tables and diagrams was calculated with refer- ence to DIN EN 14511. Type BWT 106 Brine inlet temperature in °C Brine inlet temperature in °C...
Page 26 Vitocal 222-G/242-G output diagrams (cont.) Type BWT 108 Brine inlet temperature in °C A Power consumption B Refrigerating capacity Brine inlet temperature in °C C Heating output = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C...
Page 27 Vitocal 222-G/242-G output diagrams (cont.) Type BWT 110 Brine inlet temperature in °C A Power consumption B Refrigerating capacity Brine inlet temperature in °C C Heating output = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C...
Page 28: Vitocal 222-G/242-G Pump Curves 6. 1 Residual Head
Vitocal 222-G/242-G pump curves 6.1 Residual head Type BWT 106 Primary circuit Secondary circuit Pump VI RS 25/8-3 Pump VI RS 15/7-3 Flow rate in m³/h Flow rate in m³/h Type BWT 108 Primary circuit Secondary circuit Pump VI RS 25/8-3 Pump VI RS 15/7-3 Flow rate in m³/h...
Page 29: Vitocal 333-G/333-G Nc 7. 1 Product Description
Vitocal 333-G/333-G NC 7.1 Product description A Hermetically sealed Compliant scroll compressor B Secondary pump (heating water) High efficiency DC pump in accordance with Energy Label A C Primary pump (brine) High efficiency DC pump in accordance with Energy Label A D Three-way diverter valve "heating/DHW"...
Page 30: Specification
Vitocal 333-G/333-G NC (cont.) 7.2 Specification Specification Vitocal 333-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 Heating output data at 5 K spread (to EN 14511, B0/W35 °C) Rated heating output 10.3 Refrigerating capacity Power consumption 1.28 1.71 2.19 Coefficient of performance ∊...
Page 31 Vitocal 333-G/333-G NC (cont.) Vitocal 333-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 DHW cylinder Capacity Constant DHW output for heating DHW from 10 to 60 °C (B2/W55 °C) DHW performance factor N to DIN 4708 Max. DHW drawing rate at the stated DHW performance factor N and DHW l/min 14.3...
Page 32: Dimensions
Vitocal 333-G/333-G NC (cont.) Vitocal 333-G NC, 400 V appliances Type BWT 106 BWT 108 BWT 110 Connections Primary flow and return (brine) Cu 28 x 1 Heating flow and return Cu 28 x 1 Cold water, hot water ¾ DHW circulation DHW cylinder Capacity...
Page 33: Vitocal 343-G 8. 1 Product Description
Vitocal 343-G 8.1 Product description A Hermetically sealed Compliant scroll compressor B Secondary pump (heating water) High efficiency DC pump in accordance with Energy Label A C Primary pump (brine) High efficiency DC pump in accordance with Energy Label A D Three-way diverter valve "heating/DHW"...
Page 34: Specification
Vitocal 343-G (cont.) 8.2 Specification Specification Vitocal 343-G, 400 V appliances Type BWT 106 BWT 108 BWT 110 Heating output data at 5 K spread (to EN 14511, B0/W35 °C) Rated heating output 10.3 Refrigerating capacity Power consumption 1.28 1.71 2.19 Coefficient of performance ∊...
Page 35: Dimensions
Cold water, hot water ¾ DHW circulation Heating water flow and return, solar thermal system Viessmann pipe sleeve DN 20 multi-connect system DHW cylinder Capacity Constant DHW output for heating DHW from 10 to 60 °C (B2/W55 °C) DHW performance factor N to DIN 4708 Max.
Page 36 Vitocal 343-G (cont.) E Primary circuit flow (heat pump brine inlet) H Solar circuit flow F Secondary circuit flow (heating water) K Solar circuit return G Secondary circuit return (heating water) Note To connect the hydraulic lines (D to G) on-site, use the straight connectors (standard delivery). With primary/secondary circuit connection set, use the connection bends supplied with the accessories.
Page 37 Output diagrams Vitocal 333-G/343-G 9.1 400 V appliances Note The COP data in the tables and diagrams was calculated with reference to DIN EN 14511. Type BWT 106 Brine inlet temperature in °C A Power consumption B Refrigerating capacity C Heating output Brine inlet temperature in °C = 35°C = 45°C...
Page 38 Output diagrams Vitocal 333-G/343-G (cont.) Type BWT 108 Brine inlet temperature in °C A Power consumption B Refrigerating capacity C Heating output Brine inlet temperature in °C = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C °C Heating output...
Page 39 Output diagrams Vitocal 333-G/343-G (cont.) Type BWT 110 Brine inlet temperature in °C A Power consumption B Refrigerating capacity C Heating output Brine inlet temperature in °C = 35°C = 45°C = 55°C Heating water flow temperature Output data Operating point °C °C Heating output...
Page 40: Pump Curves Vitocal 333-G/343-G 10. 1 Residual Head
Pump curves Vitocal 333-G/343-G 10.1 Residual head Type BWT 106 Primary circuit Secondary circuit Pump VI Para 25/1-7 Pump VI Tec 15/7-3 Flow rate in m³/h Flow rate in m³/h Type BWT 108 Primary circuit Secondary circuit Pump VI Para 25/1-7 Pump VI Tec 15/7-3 Flow rate in m³/h Flow rate in m³/h...
Page 41: Installation Accessories 11. 1 Primary Circuit (Brine)
Installation accessories 11.1 Primary circuit (brine) Brine accessory pack (internal) Part no. Z007 434 Brine accessory pack for heat pumps, thermally insulated with vapour ■ Pressure gauge diffusion-proof material. ■ Fill & drain valves (2 pce) ■ Shut-off valves Components: ■...
Page 42: Brine Distributor For Geothermal Probes/Geothermal Collectors
Installation accessories (cont.) A Header G 1¼" (flow) D Ball valve for filling and draining B Header G 1¼" (return) E Ball valves for shutting off the individual circuits C Locking ring fittings for PE 20 × 2.0 mm F Sound-absorbing panel Connection versions 1 2 3 4 5 6 7 8 910 10 9 8 7 6 5 4 3 2 1...
Page 43: Heat Transfer Medium "Tyfocor
Installation accessories (cont.) Brine distributor for 3 brine circuits Brine distributor for 4 brine circuits A Union nut G 2" for ball valve connection, locking ring fitting or a further module B Ball valve for filling and draining C Header G 1½" D Locking ring fittings for PE 32 ×...
Page 44: Filling Station
Components: ■ Self-priming impeller pump (30 l/min) ■ Dirt filter, inlet side 11.2 Hydraulic connection accessories Primary/secondary circuit connection set Vitocal 222-G/333-G Vitocal 242-G/343-G Part no. 7418 109 Part no. 7419 752 Comprising: ■ Prefabricated pipe bends for connection to the primary circuit (brine) flow and return connectors ■...
Page 45: Pre-Assembly Connection Set
Installation accessories (cont.) Pre-assembly connection set Part no. Z007 792 Comprising: A Cold water connection with safety assembly to DIN 1988 including tee for connecting an expansion vessel on the DHW side B DHW connection with thermal insulation C Connection panel (can be used on unfinished or finished walls) DHW circulation connection set Part no.
Page 46: Secondary Circuit
With Vitocal 333-G/343-G, a heat metering function is integrated in the heat pump control unit. Part no. 7419 523 (only Vitocal 222-G/242-G) ■ Flow rate range up to 1.5 m ■ For installation in compact heat pumps Instantaneous heating water heater Part no.
Page 47: Solar
Installation accessories (cont.) 11.5 Solar Solar collectors See the Viessmann pricelist Max. connectable collector area ■ 5 m Vitosol 200-F/300-F ■ 3 m Vitosol 200-T/300-T Heat transfer medium "Tyfocor LS" Part no.: 7159 727 ■ Ready-mixed to –28 °C ■ 25 litres in a disposable container Collector temperature sensor Part no.
Page 48: Fan Convectors Vitoclima 200-C
Installation accessories (cont.) D Return, secondary circuit to the heat pump E Flow, secondary circuit to the NC-Box F Flow, primary circuit (brine outlet, NC-Box) G Cable entry Information regarding the cooling capacity The cooling capacity to be expected largely depends on the sizing and the type of the heat source.
Page 49 Installation accessories (cont.) Fan convector specification Fan convectors Vitoclima 200-C Type V202H V203H V206H V209H Cooling capacity Heating output Power supply [terminals] 1/N/PE 230 V/50 Hz Fan power consumption at speed V1 at speed V2 at speed V3 at speed V4 at speed V5 Cooling valve value...
Page 50 Installation accessories (cont.) Type Dimensions in mm V202H V203H V206H 1240 V209H 1240 Wall mounting (front view) A Air outlet B Top C 4 fixing holes 7 8 mm D Bottom E Floor F Air inlet Type Dimensions in mm V202H V203H V206H...
Page 51: Additional Accessories
Drain outlet kit Part no. 7176 014 Drain outlet with siphon and bezel. Casing panels (side) Vitocal 222-G/333-G Vitocal 242-G/343-G Part no. 7414 924 Part no. 7419 881 ■ To seal the gap between the compact heat pump and the wall; 8 cm wide ■...
Page 52: Design Information 12. 1 Positioning
B Top edge of finished floor or top edge of platform for unfinished floors Dimension a in mm Recommended minimum room height h in mm ! without connection set ? with connection set Vitocal 222-G/333-G 1829 2000 2100 Vitocal 242-G/343-G 2075...
Page 53 Minimum room volume in m Type Vitocal 222-G/242-G Vitocal 333-G / 343-G BWT 106 Minimum room volume in m BWT 108 max. amount of refrigerant in kg...
Page 54 Design information (cont.) Electrical and hydraulic connections Recommended ways of routing the corrugated pipes for the pri- mary circuit If using the primary/secondary circuit connection set, see page 44. ! Routing to the top left Note ? Routing to the bottom right The flexibility of the corrugated pipes means they can be routed in a §...
Page 55 (brine) E Secondary circuit return connection (heating water) F Secondary circuit flow connection (heating water) Dimension a in mm G Mounting panels with clips for corrugated pipes, secondary circuit Vitocal 222-G/333-G 1860 flow and return (heating water) Vitocal 242-G/343-G 2110...
Page 56: Water Quality And Heat Transfer Medium
■ Only use fill water of potable quality. ■ Soften fill water with a hardness above 16.8 °dH (3.0 mol/m ), e.g. with a small softening system for heating water (see the Viessmann Vitoset pricelist). DHW connection (to DIN 1988) For the DHW connection, observe DIN 1988 and DIN 4753.
Page 57: Connections
16 and 21). Allow a cable length of 1800 mm for connecting on- site cables inside the appliance, from the cable entry point to the elec- trical terminal block. Vitocal 222-G/333-G Wiring diagram for system example without solar collectors Wiring diagram for system example with solar collectors A Compact heat pump B Outside temperature sensor, sensor lead (2 x 0.75 mm...
Page 58: Power Supply And Tariffs
Design information (cont.) Requirements regarding the electrical installation Viessmann heat pumps operate with 400 V~ (in some countries 230 V models are also available). ■ Observe the technical connection requirements specified by your The control circuit requires a power supply of 230 V~.
Page 59: Sizing The Heat Pump
Design information (cont.) Vitocal 333-G / 343-G System scheme (number in the control unit) Standard equipment Heating circuit A1 without mixer Heating circuit M2 with mixer (not Vitocal 333-G NC) Heating circuit M3 with mixer (not Vitocal 333-G NC) DHW cylinder Additional equipment (only one option per system scheme possi- ble) Heating water buffer cylinder (not Vitocal 333-G NC)
Page 60: Supplement For Dhw Heating
Design information (cont.) Sizing of typical system configurations: Note ■ According to DIN EN 12831, the heat output of the heat pump must Compared to mono-mode operation, the heat pump will run for longer be designed for approx. 70 to 85 % of the maximum required heat due to its smaller size.
Page 61 Design information (cont.) Damp loamy soil C Foundations = 25–30 W/m D Drainage Ground with groundwater = 30–35 W/m E Seal F Pipe liner These details enable the required ground area to be calculated subject G Crushed stone to the heat load of the building and the refrigerating capacity ² of the H PE 32 ×...
Page 62 Design information (cont.) Pipe runs and brine distributor for compact heat pumps Type Ground area PE 20 × 2.0 PE 25 × 2.3 PE 32 × 3.0 (2.9) Brine distribu- Brine distribu- Brine distribu- Pipe runs Pipe runs Pipe runs Part no.
Page 63: Geothermal Probe
We recommend arranging the sizing to match the regional conditions and the drilling service to be carried out by the contractor suggested by your local Viessmann sales office. Required number and depth of geothermal probes (double U-shaped pipe probes) Type...
Page 64: Expansion Vessel, Brine Circuit
Design information (cont.) The heat pump with a heating output of 6.2 kW (incl. supplement for power-OFF periods, excl. DHW heating), refrigerating capacity = 4.9 kW corresponds to the required output. ² Sizing the geothermal probe as double U-pipe Average extraction rate ³ = 50 W/m probe length = 4.9 kW ²...
Page 65 Design information (cont.) PE pipe 25 × 2.3 mm, PN 10 Flow rate R value for Tyfocor Flow rate R value for Tyfocor Pa/m Pa/m 1100 270.2 27.5 1120 278.9 32.9 1140 287.7 38.4 1160 296.6 43.9 1180 305.6 49.4 1200 314.7 54.9...
Page 66: Pump Output Supplements (Percentage) For Operation With Tyfocor
= ² (in %) facturer. ² water Viessmann heat transfer medium "Tyfocor" (ready-mixed for temper- Design residual head atures down to –15 °C) has a ethylene glycol volume ratio of 28.6 °% (in %) water (calculated as 30 %).
Page 67: Calculating The Required Groundwater Volume
Design information (cont.) approx. 1.3 m -11.0 m -12.0 m -14.0 m -14.0 m min. 5 m -15.0 m -15.0 m -16.0 m -20.0 m -21.0 m -23.0 m -24.0 m A To the heat pump H Flow direction of the groundwater B Return well K Well shaft C Delivery well...
Page 68: Sizing The Heat Exchanger, Primary Circuit
4 °C be reduced by a maximum of 0.4. We recommend the use of the threaded stainless steel plate heat exchanger from the Viessmann Vitoset pricelist (manufacturer: Tranter AG); see the following selection table. A Water B Brine (antifreeze mixture) Selection list for plate heat exchangers for water/water heat pumps Plate heat exchanger, soldered (do not clean;...
Page 69: Natural Cooling Function
Arrangement of the NC-Box adjacent to the heat pump ground, the NC-Box can transfer a refrigerating capacity of up to ■ For compact heat pumps Vitocal 222-G/242-G/333-G/343-G. 5 kW. ■ With the Vitocal 200-G/300-G, if the installation room above the heat For cooling, it is possible to connect either a heating/cooling circuit, pump is not high enough.
Page 70: Cooling With An Underfloor Heating System
Design information (cont.) A Heat pump B Primary circuit return (heat pump brine outlet) C Flow, primary circuit (brine inlet, NC-Box) D Return, heating/cooling circuit or separate cooling circuit E Flow, heating/cooling circuit or separate cooling circuit F Contact humidistat, adjustable switching point (presetting 80 % relative humidity), clearance to NC-Box max.
Page 71: Cooling With Fan Convectors Vitoclima 200-C (Accessory)
Design information (cont.) Cooling with fan convectors Vitoclima 200-C (accessory) ■ Cooling operation possible either via separate cooling circuit or via Output matching a heating/cooling circuit. For max. cooling capacity, select operating The output of fan convectors can be modified. By changing the termi- mode "Fixed value".
Page 72: Heat Pump Control Unit 13. 1 Vitotronic 200, Type Wo1A
Design information (cont.) A solar expansion vessel is a sealed unvented vessel where the gas space (nitrogen filling) is separated from the space containing liquid (heat transfer medium) by a diaphragm and the pre-charge pressure is subject to the system height. A Heat transfer medium B Nitrogen filling C Nitrogen buffer...
Page 73: Functions
Heat pump control unit (cont.) ■ Control keys for: – Navigation – Confirmation – Help Flow temperature 40°C – Extended menu Heating/cooling ■ Setting the: – Standard and reduced room temperature Solar energy – Standard and second DHW temperature Information –...
Page 74: Frost Protection Function
Heat pump control unit (cont.) ■ Only DHW; separate settings for each heating circuit The external operating program changeover is possible in conjunction with the external extension H1. Note If the heat pump is only required to operate for DHW heating, for example in summer, select operating program "Only DHW"...
Page 75: Outside Temperature Sensor
Heat pump control unit (cont.) Outside temperature sensor Installation location: Specification ■ North or north-western wall of the building IP rating IP 43 to EN 60529; ■ 2 to 2.5 m above the ground, for multi-storey buildings in the upper ensure through appropri- half of the second floor ate design/installation...
Page 76: Contact Temperature Sensor As System Flow Temperature Sensor
On-site extension of the connecting lead: through design/installation ■ 2-core lead, length max. 60 m with a cross-section of 1.5 mm (cop- Sensor type Viessmann Pt500 Permissible ambient temperature per) – during operation 0 to +90°C ■ Never route this lead immediately next to 230/400 V cables –...
Page 77: Contact Temperature Sensor (Only Vitocal 333-G/343-G)
Mixer PCB with mixer motor KM BUS subscriber Components: ■ Mixer PCB with mixer motor for Viessmann mixer DN 20 to 50 and R ½" to 1¼" ■ Flow temperature sensor (contact temperature sensor), lead length 2.2 m, fully wired, for specification see below ■...
Page 78: Extension Kit For One Heating Circuit With Mixer For Separate Mixer Motor
Heat pump control unit (cont.) IP rating IP 32D to EN 60529 Secured with a tie. ensure through appropriate design/installation Specification Protection class IP rating IP 32D to EN 60529 Permissible ambient temperature ensure through appropriate – during operation 0 to +40 °C design/installation –...
Page 79: Contact Thermostat
Heat pump control unit (cont.) Specification Lead length 4.2 m, fully wired Setting range 30 to 80 °C Switching differential max. 11 K Breaking capacity 6(1.5) A 250 V~ Setting scale inside the casing Stainless steel sensor well R ½" x 200 mm DIN reg.
Page 80: Room Temperature Sensor
Heat pump control unit (cont.) Set room temperature range 10 to 30 °C adjustable from 3 to 23 °C or 17 to 37 °C The set room temperature for reduced mode is adjusted at the control unit. Room temperature sensor Part no.
Page 81: Mounting Base For Programming Unit
■ With contract SIM card for the operation of the Vitocom 100 via mobile phone Part no. Z004615 Note For further information regarding the conditions of contract, see the Viessmann pricelist. Specification Rated voltage 230 V ~ Functions: Rated frequency 50 Hz ■...
Page 82: Vitocom 300, Type Fa5, Fi2, Gp2 And Lan
Heat pump control unit (cont.) Note Specification For further information regarding the terms of contract, see the Rated voltage 230 V ~ Viessmann pricelist. Rated frequency 50 Hz Rated current 22 mA Standard delivery: Power consumption 5 VA ■ Power cable (2 m long) with plug...
Page 83: Lon Communication Module
30 V–, max. 2 A – Required with: 1 standard module and 2 extension – 2 analogue inputs AE 1 and AE 2 For Viessmann Ni500 tem- modules perature sensors, 10 to 127 Extension of the connecting cable ºC ±0.5 K...
Page 84: Lon Connecting Cable For Data Exchange Between Control Units
Terminator Part no. 7143 497 To terminate the LON BUS at the first and last LON user. 2 pce Three-phase monitor (only Vitocal 222-G/242-G) Part no. 7463 720 Note For monitoring the compressor power supply. With the Vitocal 333-F/343-F, the standard delivery includes a fitted three-phase monitor.
Page 85: Glossary
Refrigerant Removing hoarfrost and ice from an evaporator of air/water heat Term for refrigerants in heat pump systems. pumps by supplying heat (for Viessmann heat pumps, defrosting is implemented according to demand by the refrigerant circuit). Performance factor Quotient of heating energy and compressor drive load over a fixed Alternative operation period, e.g.
Page 86: Manufacturer's Addresses
This value is only relevant for the elec- trical connection to the power supply system and is stated by the man- ufacturer on the type plate. 14.3 Manufacturer's addresses ■ Viessmann Deutschland GmbH ■ Frank GmbH Geothermie Department Starkenburgstraße 1 35107 Allendorf (Eder) D-64546 Mörfelden...
Page 87: Overview - Engineering Steps For A Heat Pump System
14.5 Calculating the seasonal performance factor See online forms at www.viessmann.de or www.waermepumpe.de. To open the online forms at www.viessmann.de click on the following links in sequence: Ú "Login" Ú "Start Login" Ú "Software service"...
Page 88: Keyword Index
Keyword index Active cooling..................9 Efficiency..................86 Airborne noise................10, 11 Electrical and hydraulic connections Air separator..................41 ■ Vitocal 222-G................54 Alternative operation................85 ■ Vitocal 242-G................54 Annual heat load................6 Electrical demand................58 Application as a water/water heat pump..........66 Electrical power..................8 Application procedure (details)............58 Electricity meter................58 Energy Efficiency Rating (EER)............86...
Page 89 Mixer extension kit ■ Connection set................44 ■ Integral mixer motor..............77 Primary source...................8 ■ Separate mixer motor..............78 Product information Mono-energetic................86 ■ Vitocal 222-G................13 Mono-energetic operating mode............6 ■ Vitocal 242-G................17 Mono-energetic operation..............59 ■ Vitocal 333-G................29 Mono-mode..................86 ■ Vitocal 333-G NC................29 Mono-mode operation..............6, 59 ■...
Page 90 Sound pressure level..............10, 11 Sound source...................10 Sound transmission................11 Vitocom Specification ■ 100, type GSM................81 ■ Vitocal 222-G................14 ■ 200, type GP1................81 ■ Vitocal 242-G................18 ■ 300, type FA5, FI2, GP2 and LAN..........82 ■ Vitocal 333-G................30 Vitotrol ■ Vitocal 333-G NC................30 ■...
Page 91 VIESMANN VITOCAL...
Page 92 Subject to technical modifications. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com VIESMANN VITOCAL...
