Summary of Contents for Viessmann Vitocal 300-G

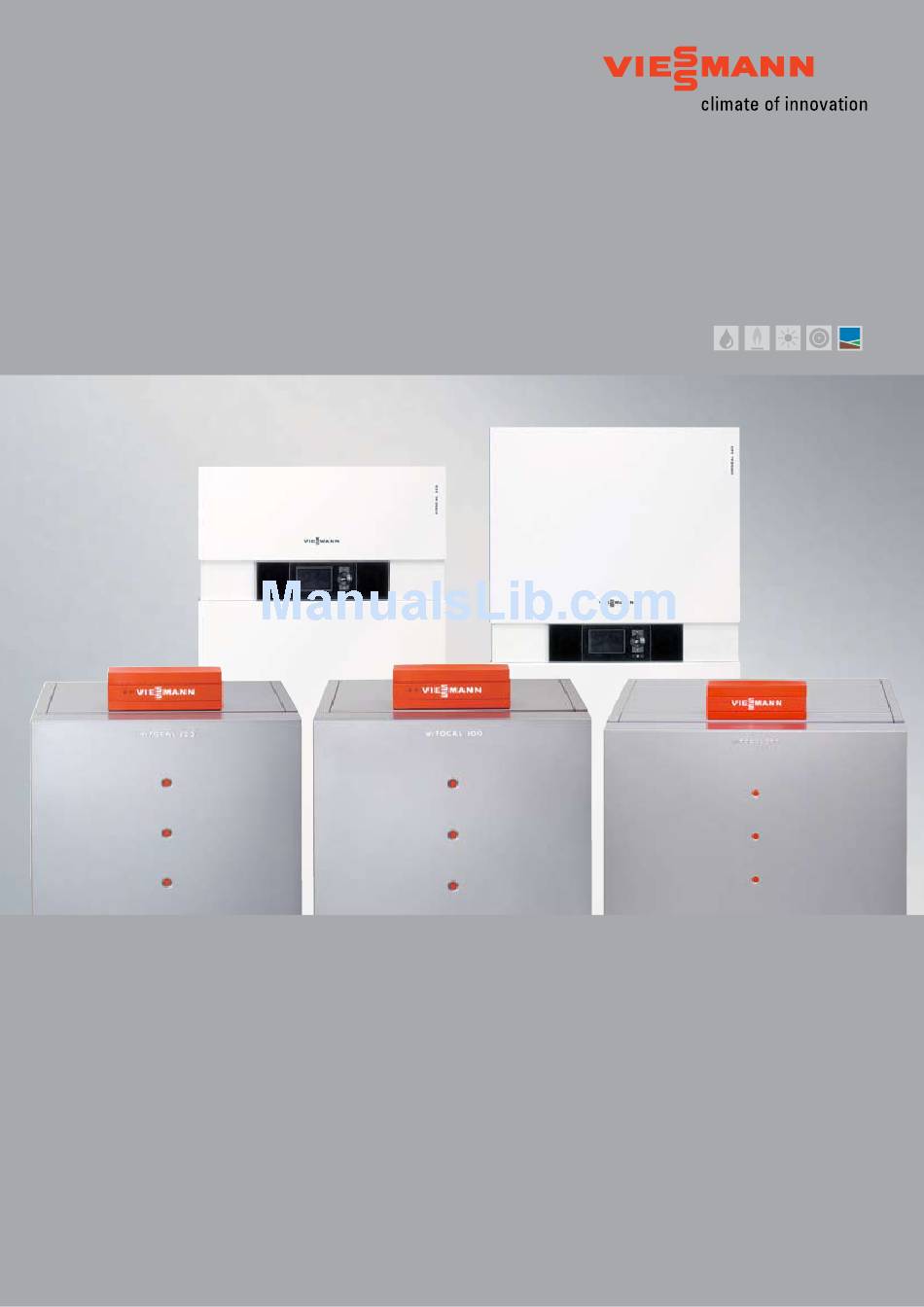

- Page 1 Natural Heat Vitocal 300-G Vitocal 350-G Vitocal 200-G Vitocal 222-G Vitocal 242-G Ground source heat pumps...
-
Page 2: Heat Pumps
Vitocal 300-G flow and return. This does not just deliver the Powerful, quiet and reliable The heart of the Vitocal 300-G is its powerful higher heat output, but also increases the Compliant scroll compressor. It proves its worth operational reliability of the entire system. - Page 3 Heat pump control unit with user prompts for weather-compensated heating operation and natural cooling or active cooling Vitocal 300-G: brine pump, heating circuit pump and safety assembly are Two-stage heat pump Vitocal 300-G (master/slave) – integrated (type BWC and WWC)
- Page 4 The use of an electronic combined with a further heat pump of the expansion valve and high efficiency pump, further same type, or with the Vitocal 300-G, as a contribute to the reduction of running costs. master/slave. Both heat sources are then regulated via a single control unit.
- Page 5 RCD system (Refrigerant Cycle Diagnostic), which provides a continuous refrigerant cycle control Vitotronic 200 control unit Master/slave configuration for high flexibility, eg, combined with the Vitocal 300-G for maximum efficiency in heating mode with Vitotronic 200 controller simultaneously high DHW temperature.
- Page 6 Reduce your heating bills the living space; heating DHW is also An investment in a Viessmann heat pump such as more convenient. the Vitocal 200-G is always worthwhile. From now on, the energy you use to generate heat comes Why a heating system in summer? free, from right outside your door.
- Page 7 Compact dimensions, powerful output. The Vitocal 200-G only takes up a little space, and its attractive design looks good anywhere. Take advantage of these benefits Brine/water heat pump with heating output 5.8 to 9.7 kW High Coefficient of Performance: COP value to EN14511 up to 4.4 (brine 0°C/water 35°C) Attractively priced brine/water heat pump Provides all central heating and hot water in mono-mode...
- Page 8 The natural cooling function brings cool underground temperatures into your home. For this, you need the Viessmann NC-Box as an accessory. Vitocal 222-G DHW cylinder High efficiency heat pump coil...
- Page 9 The Vitocal 222-G and 242-G compact heat pumps Take advantage of these benefits Compact brine/water heat pumps with heating outputs from 5.9 to 10.0 kW High Coefficient of Performance: COP value to EN 14511 up to 4.3 (brine 0 °C/ water 35 °C) Maximum flow temperature: 60 °C High DHW convenience through integral DHW cylinder with a 170 litre capacity...
- Page 10 Heat pumps Vitocal 242-G Compact brine/water heat pump with DHW Vitocal 242-G includes and option to utilise cylinder solar energy The Vitocal 242-G is fully equipped with all the The Vitocal 242-G is fully prepared for components required for DHW and central connection to a solar thermal system for DHW heating.
- Page 11 10/11 The compact heat pumps live up to their name. With no need for side clearances, they fit easily into even the tightest of recesses. Take advantage of these benefits Compact brine/water heat pumps with heating outputs from 5.9 to 10.0 kW High Coefficient of Performance: COP value to EN 14511 up to 4.3 (brine 0 °C/ water 35 °C) Maximum flow temperature: 60 °C...
- Page 12 Natural cooling – naturally No-one would turn on the central heating on While the ground or groundwater is used a hot summer day. With a Viessmann heat pump, the situation is different, as some in winter to provide energy for heating, in summer it can be used for natural cooling.
-
Page 13: Natural Cooling
Energy efficient and affordable cooling Everything you need to keep cool with the NC-Box In the Viessmann "Natural Cooling Box", all The Viessmann NC-Box helps heat pumps components are prefitted. This makes the to provide cooling in a completely natural thermally insulated box not only compact, but way. -
Page 14: Active Cooling
Keep cool when it gets really hot outside With active cooling, the compressor circuit heating and cooling The Viessmann AC-Box combines active starts to work. The internal control unit, in and natural cooling in heat pump systems, conjunction with the AC-Box, reverses the... -
Page 15: Technical Data
845 x 600 x 1049 Overall weight Vitocal 300-G WW/WWC WW/WWC WW/WWC Type Water/Water Heat pump Vitocal 300-G as 2 stage (Slave) Type BWS 106 BWS 108 BWS 110 BWS 113 BWS 117 Output data (EN 14511, W10/W35°C, Delta T 5K) Output data (EN 14511, B0/W35°C, Delta T 5K) - Page 16 The maximum cooling capacity is limited by the integral heat pump (for Vitocal 300-G) Dimensions L x W x H 680 x 600 x 2075 Weight 9440 090 GB 09/2012 Copyright Viessmann Duplication and alternative use only with prior written consent. Subject to technical modifications.
