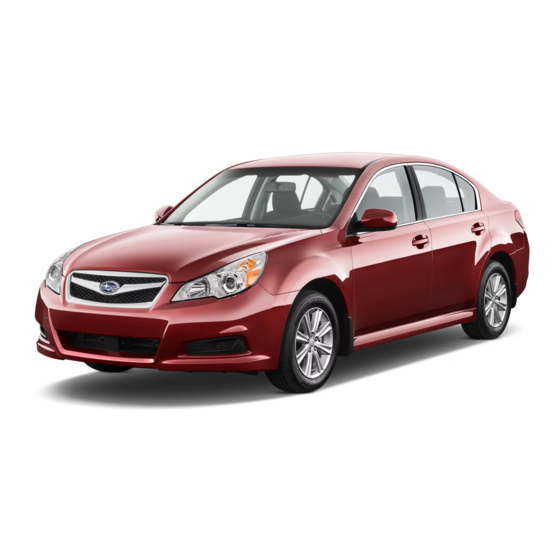

Subaru Legacy 2011 Quick Reference Manual
Hide thumbs
Also See for Legacy 2011:
- Owner's manual (454 pages) ,
- Service bulletin (2 pages) ,
- Service bulletin (2 pages)
Related Manuals for Subaru Legacy 2011
Summary of Contents for Subaru Legacy 2011
-
Page 1: Quick Reference Guide

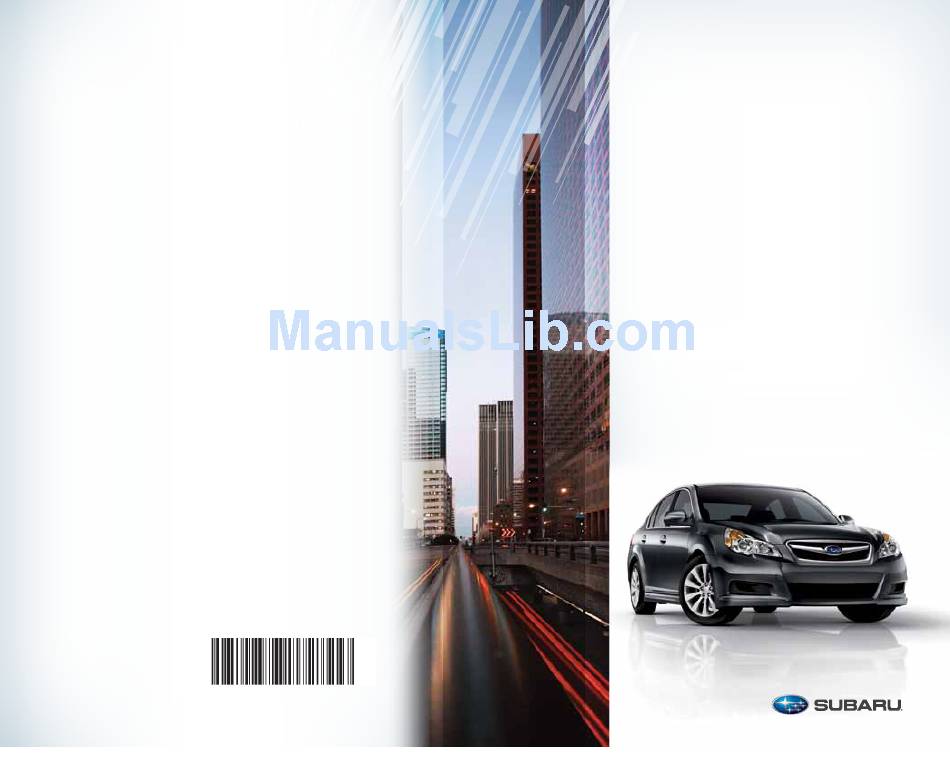

Legacy 2011 Subaru of America, Inc., Subaru Plaza, P.O. Box 6000, Cherry Hill, NJ 08034-6000 Quick Reference Guide. MSA5B1103A Printed in USA 05/10 Issued 04/10 769269_11_Subaru_Legacy_QRG_051310b.indd 1-2 6/15/10 2:18 PM... - Page 2 XM and Sirius are registered trademarks. All rights reserved. Contents may not be reprinted or electronically reproduced in whole or in part without prior written approval of Subaru of America, Inc. © 2010 Subaru of America, Inc. 769269_11_Subaru_Legacy_QRG_051310b.indd 3-4 6/15/10 2:18 PM...
- Page 3 Table of Contents Getting Started 2 - 3 Instrument Panel 4 - 5 Gauges 6 - 7 Personalize 8 - 9 Controls 10 - 21 While Operating 22 - 23 Safety/In Case of Emergency 24 - 25 Additional Information 26 - 27 769269_11_Subaru_Legacy_QRG_051310b.indd 5 6/15/10 2:18 PM...
-
Page 4: Remote Keyless Entry
Remote Keyless Entry Seating Lock/Arm • Press to lock all doors and trunk. • If any of the doors or the trunk are not fully closed, an electronic chirp will sound five times and the hazard lights will flash five times to alert you that the doors or the trunk are not properly closed. -
Page 5: Instrument Panel
Instrument Panel 12-15 16-19 Clock Press the “+” button to advance time or the “–” button to reverse the time. Vehicles with a navigation system please refer to the separate “Operating Instructions for Navigation System.” 769269_11_Subaru_Legacy_QRG_051310b.indd 4-5 6/15/10 2:18 PM... - Page 6 Gauges Immediate Attention Caution Informational Multi-function display Speedometer Tachometer Trip meter and odometer Trip meter A/B selection and trip switching knob meter reset knob ECO Gauge Fuel Gauge All-Wheel Drive (AT and Low windshield Seatbelt warning Brake system CVT models) washer fluid Vehicle Dynamics Front passenger seatbelt...
-
Page 7: Tilt And Telescopic Steering Column
Personalize Tilt and Telescopic Steering Column Push the lever down firmly to adjust the vertical and lengthwise position of the column; firmly push the lever back up to lock the column in place. Do not adjust while driving. Power Exterior Mirrors Turn the knob to the “L”... -
Page 8: Light Controls
Controls Light Controls AUTO: The vehicle’s lights are automatically on or off depending on the level of the outside light. Push up for right turn signal. Turns on headlights, instrument panel INT. illumination, front side marker lights, taillights and license plate lights. HIGH Turns on fog lights... -
Page 9: Manual Climate Control
Controls Manual Climate Control While in defrost mode, the air inlet 3. Recirculated / Outside Air Button 5. Rear Window Defogger Button Press the air inlet selection button to Press the rear window defogger button selection and A/C will operate (if equipped) prevent outside air from being drawn into to turn on the defogger. -
Page 10: Automatic Climate Control
Controls Automatic Climate Control Temperature is displayed digitally on 4. Fan Speed Control Buttons driver’s side and passenger’s side. the radio screen. Separate temperature Press the fan speed control buttons (if equipped) 7. Air Conditioner Button settings can be made for the driver’s side to select six different fan speed Press the “A/C”... - Page 11 Controls CD Player functions 8. Load 14. Scan Press the “SCAN” button to begin Insert a disc into the slot. The CD will automatically be drawn in and previewing the first 10 seconds of each track on the disc. Normal will begin play at the first track.
- Page 12 Controls CD Player functions 8. Load 14. Scan Press the “LOAD” button and then Press the “SCAN” button to begin insert the disc into the slot. The CD previewing the first 10 seconds will automatically be drawn in and of each track on the disc. Normal will begin play at the first track.
-
Page 13: Cruise Control
Controls Cruise Control Steering Wheel Audio Controls • To activate the cruise control, press the • To resume your speed after (if equipped) “CRUISE” button. The “CRUISE” indicator canceling, push the switch light on the instrument panel will turn on. to the “RES”... -
Page 14: While Operating
While Operating Electronic Parking Brake To apply, push down the brake pedal and press the parking brake switch firmly. The brake system warning light on the instrument panel and the indicator light on the parking brake switch will illuminate. To release, make sure all doors are closed and your seatbelt is fastened, then gently push the accelerator pedal. -
Page 15: Safety / In Case Of Emergency
AWD vehicle. If towing is be opened from the outside. necessary, it is best done by your Subaru dealer or a commercial towing service. Subaru Roadside Assistance Subaru Roadside Assistance is free and standard on every 2011 Subaru vehicle. -
Page 16: Additional Information
Subaru ownership. Log on to My.Subaru.com to access features such as: automated service history, e-mail maintenance reminders, online Owner’s Manual, warranty information, maintenance schedules and much more... - Page 17 Notes 769269_11_Subaru_Legacy_QRG_051310b.indd 28 6/15/10 2:20 PM...
-
Page 18: Owner Information
DELIVERy DATE OWNER NAME OWNER NAME Owner Resources & Warranty Present the Subaru Owner’s Manual & Quick Reference Guide (detailed review in “Operation & Controls” section) Review Subaru Roadside Assistance, Owner Cards & Provide Toll-Free Number 1-800-261-2155 Explain 3/36 BASIC Warranty / 5/60 Powertrain Warranty / Explain Wear Items &... -
Page 19: Operation And Controls
Operation & Controls Please use & reference the SUBARU OWNER’S MANUAl & QUICK REfERENCE GUIDE OPERAtION & CONtROlS Review Master & Valet Keys Show yellow Caps & Explain Checking & Filling of Vehicle Fluids Show Keyless Entry, Alarm System & Remote Start (if equipped) Show Fuel Filler Door &...
