Onkyo TX-NR616 Quick Start Manual

Quick Start Guide
TX-NR616
Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna
b AM loop antenna
c Speaker cable labels
d Remote controller and two batteries
(AA/R6)
e Power cord (Taiwanese models)
(Plug type varies from country to country.)
f Speaker setup microphone
The AV receiver can automatically perform
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
supplied microphone to the AV receiver
and follow the on-screen instructions.
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
Note
Before connecting the power cord, connect all of your speakers and AV components.

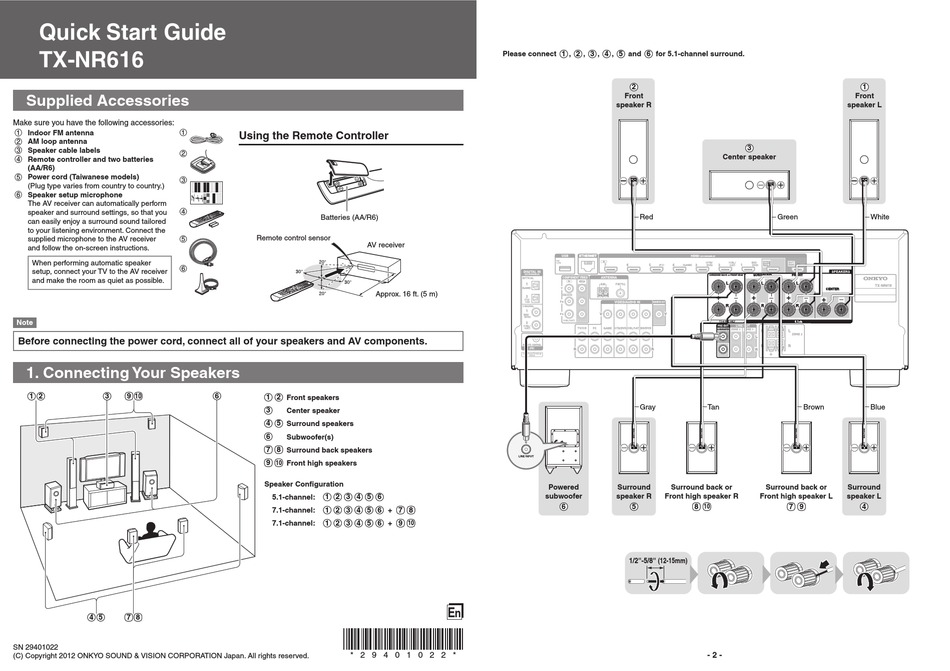

1. Connecting Your Speakers
1 2 3 9 10
4 5 7 8
SN 29401022
(C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.

Using the Remote Controller

Batteries (AA/R6)
Remote control sensor
AV receiver
Approx. 16 ft. (5 m)
6
1 2 Front speakers
3 Center speaker
4 5 Surround speakers
6
Subwoofer(s)
7 8 Surround back speakers
9
10 Front high speakers
Speaker Configuration
5.1-channel: 1 2 3 4 5 6
1 2 3 4 5 6 + 7 8
7.1-channel:
1 2 3 4 5 6 + 9
7.1-channel:
* 2 9 4 0 1 0 2 2 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
Powered
subwoofer
6
10
E
n
2
Front
speaker R
3
Center speaker
Red Green
Gray Tan
Surround Surround back or Surround back or
speaker R Front high speaker R Front high speaker L
5 8 10 7 9
1/2''-5/8'' (12-15mm)
- 2 -
1
Front
speaker L
White
Brown Blue
Surround
speaker L
4
