Zibro P 720 Operating Manual

Pvg international
Hide thumbs Also See for P 720:

Advertisement

Table of Contents

P 720 - P 726 - P 729 - PH 733
2
6
5
3
FIN
4
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
MANUEL D'UTILISATION
KÄYTTÖOHJE
OPERATING MANUAL
4
22
40
56
72
88

Advertisement

Table of Contents
loading

Related Manuals for Zibro P 720

Summary of Contents for Zibro P 720

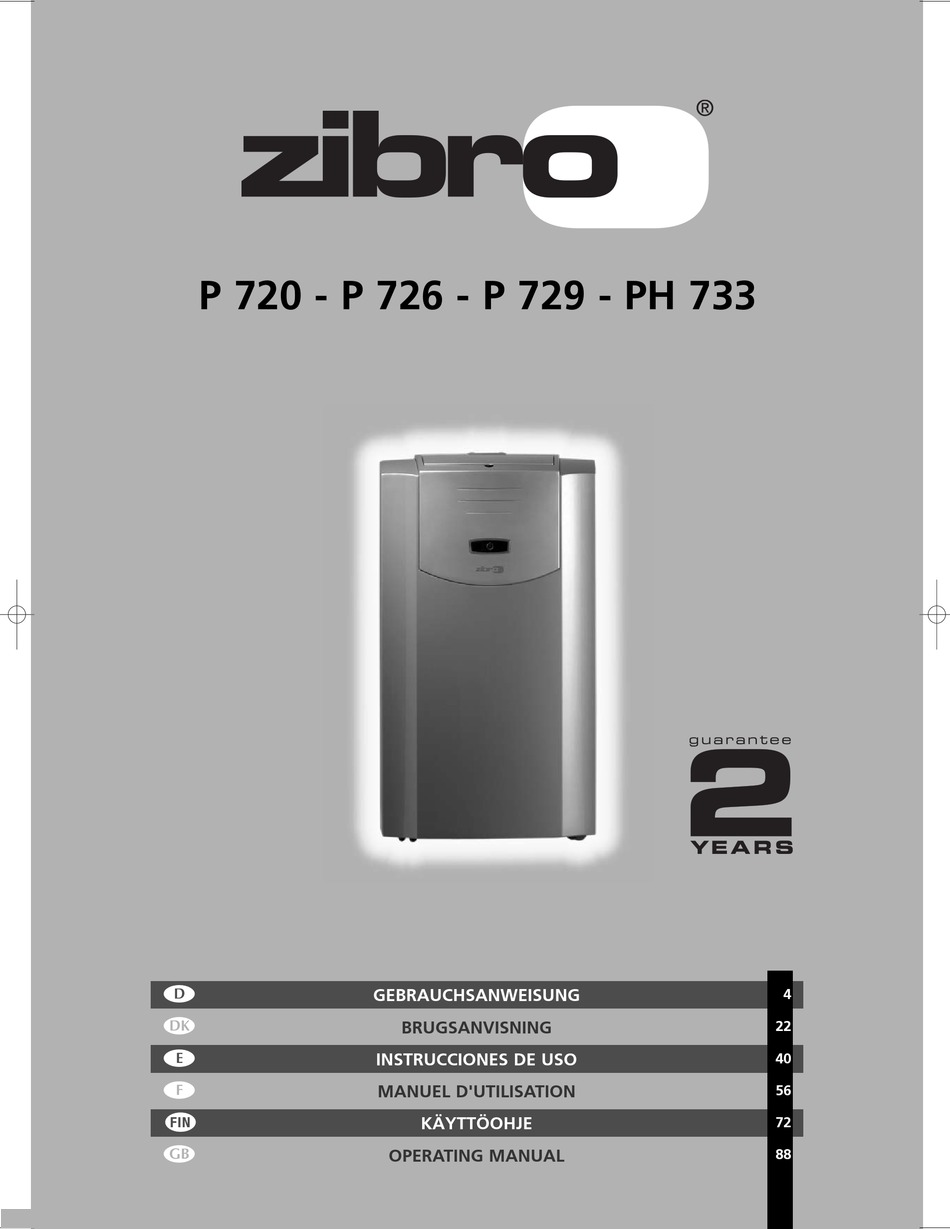

  • Page 1 P 720 - P 726 - P 729 - PH 733 GEBRAUCHSANWEISUNG BRUGSANVISNING INSTRUCCIONES DE USO MANUEL D'UTILISATION KÄYTTÖOHJE OPERATING MANUAL...
  • Page 2 ALLGEMEINE SICHERHEIT Aus Sicherheitsgründen bitten wir Sie, die Bedienungsanleitung vor Inbetriebnahme sorgfältig zu lesen! Personen, die mit der Bedienungsanleitung nicht vertraut sind, dürfen das Gerät nicht bedienen. A. Kein beschädigtes Kabel verwenden. G. Nicht in Wasser eintauchen. B. Kabel nicht zusammendrücken oder knicken. H.

  • Page 3: Generell Sikkerhet

    SICUREZZA > Per motivi di sicurezza, si raccomanda di leggere attentamente il manuale prima di utilizzare l’apparecchio. Le persone che non conoscono il funzionamento del climatizzatore non devono usarlo. Si raccomanda di riporre il manuale in un luogo sicuro per future referenze. A.

  • Page 4: Important Components

    IMPORTANT COMPONENTS Remote control / Control panel On/off switch Air inlet Air outlet Filter holder Filter clamp Air filters (activated carbon + HAF filter) ** Cable hook Air supply hose (only with P729 and PH733, optional for P720 and P726*) Air exhaust hose Water drain Drainage point...
  • Page 5 Dear Sir, Madam, Congratulations on the purchase of your airconditioner. This airconditioner has three functions besides cooling the air, namely dehumidification, air circulation, heating (only by PH 733) and air filtration. This mobile airconditioner is extremely easy to operate and move.

  • Page 6: Safety Regulations

    SAFETY REGULATIONS IMPORTANT • The installation must be completely in accordance with local regulations, ordinances and standards. • The device is suitable exclusively for use in dry places, indoors. • Check the mains voltage. This device is suitable exclusively for earthed sockets –...
  • Page 7 ATTENTION! • Never use the device with a damaged cable or plug. Never allow the cable to be pinched off or come into contact with sharp edges. • Never seal the room in which the device is to be used completely airtight (also not when using two air hoses).
  • Page 8 P729 and PH733 are fitted with the EVS (Effective Ventilation System) as standard. The second hose must be attached in order to utilise this option. Attach the hose connectors and the hose adapter as described above. Now remove the protective grill from the air inlet : First turn the protective grill approximately 20-30 degrees (left or right) and then pull it towards you.
  • Page 9 COMMENT! The flexible air exhaust hose(s) can be stretched to a length of approximately 1200 mm. The length of these hose(s) was calculated on the basis of the capacity of the device. The use of other hoses or extensions may cause faults in the device. The exhaust air must be able to flow out unhindered.
  • Page 10 PLACING BATTERIES IN THE REMOTE CONTROL Remove the battery cover by pressing the lips in and then pulling the cover toward you. Place the new batteries as indicated (pay attention to the plus- (+) and minus poles (-). Now replace the battery cover. NOTE! Use 2 AAA (1.5 Volt) batteries.
  • Page 11 The following settings are possible in the cooling mode: • The ventilator speed can be adjusted by pressing the -button Automatic regulation of ventilator speed High Average • The temperature can be set between 18°C and 32°C (PH733: 16°C - 32°C) by pressing the buttons.

  • Page 12: Adjusting The Timer

    When the device is not being used in the (manual) dehumidification mode, the plug must be removed from the water drain CIRCULATING When the air circulation mode is switched on, the transparent ring around the button on the front of the device emits GREEN light.

  • Page 13: Adjusting The Clock

    • Set the number of hours desired (1-12) with the aid of • Press You can delete the set timer function by pressing the button on the remote control. When the set time is at “00”, the timer is switched off. When the Timer function has been set the blue light in the button on the front of the device will switch on.
  • Page 14 • Filter packages are available at your dealer. • Only use suitable Zibro filters. This will prevent any damage to your airconditioner. Using other than the original filters is entirely at the risk of the consumer. This may have a negative effect on the operation of the device and may result in damage.

  • Page 15: Emptying The Water Reservoir

    AIR FLOW You can change the direction of the air flow by adjusting the positions of the horizontal and vertical louvers. EMPTYING THE WATER RESERVOIR In extreme circumstances it may be necessary to empty the internal water reservoir. When the water reservoir is full, the transparent ring around the button on the front of the device flashes RED.

  • Page 16: Maintenance

    MAINTENANCE ATTENTION! First switch the device off and pull the plug out of the socket before you clean the device or filter or when you replace the filters. Use a soft, damp cloth for the regular cleaning of the exterior of the device. Never use aggressive cleaning agents, solvents, benzene or abrasives.

  • Page 17: Jproblems And Solutions

    PROBLEMS AND SOLUTIONS Problem Cause Solution The device does not work and the transparent ring The internal water Empty the internal water around the button on the reservoir is full. reservoir (see chapter F). front of the device flashes RED. The device does not work and the top horizontal edge of the transparent...

  • Page 18: Guarantee Conditions

    The shipping costs of the airconditioner or parts and the related risk are always borne by the purchaser. Damage, caused by not using suitable Zibro filters falls outside the guarantee. To prevent unnecessary costs, we recommend that you always first read the instructions carefully.

  • Page 19: Technical Specifications

    TECHNICAL SPECIFICATIONS Use indicatively, subject to change. Model P 720 P 726 P 729 PH 733 Cooling capacity* 2000 2600 2900 3300 EE Class EER* 2.36 2.42 2.64 2.46 Heating capacity* 3300 Heating performance COP* 2.81 Power consumption 1100 1200 1400 Current nom.
  • Page 20 Holloway Bank, Wednesbury tel: +43 7434 44867 West Midlands WS10 OAW fax: +43 7434 44868 tel.: +44 121 506 1818 email: pvgaustria@zibro.com fax: +44 121 505 1744 email: gases@lister.co.uk e BELGIË > ITALIA PVG Belgium NV/SA PVG Italy SRL Industrielaan 55 Via Niccolò...
