CAUTION
This product contains
small parts in its
unassembled state. Adult
assembly is required.
1

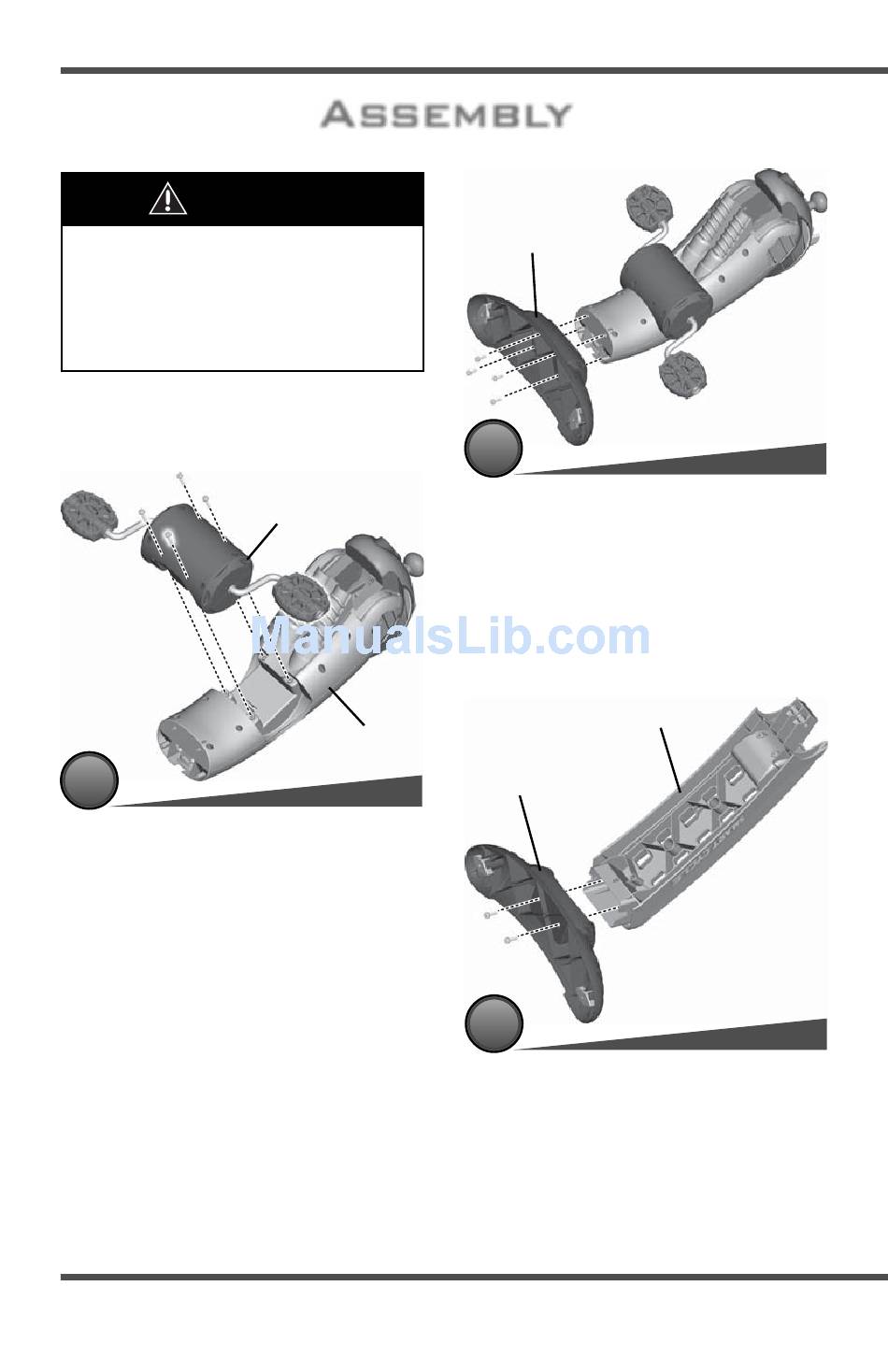

• Fit the pedal assembly into the groove in
the underside of the frame, as shown.
Hint: The pedal assembly is designed to
only fi t one way. If it does not seem to fi t,
turn it around and try again.
• Insert four screws into the pedal assembly.
Fully tighten the screws.
4
Assembly
Pedal
Assembly
Frame
Front Base
(Small)
2
• Fit the front base (small) onto the bottom
of the frame, as shown.
Hint: The front base is designed to fi t onto
the frame one way. If it does not seem to fi t,
turn it around and try again.
• Insert four screws into the front base
and tighten.
Seat Post
Rear Base
(Large)
3
• Fit the rear base (large) onto the end of the
seat post, as shown.
Hint: The rear base is designed to fi t onto
the seat post one way. If it does not seem to
fi t, turn it around and try again.
• Insert two screws into the rear base
and tighten.
