A&D AD-1672 Instruction Manual

AD-1672 Tabletop Breeze Break Instruction Manual
1. Features
x The tabletop breeze break protects the balance from breezes, due to air conditioning and body motion, thereby
reducing balance weighing error.
x The transparent panel assembly consists of antistatic plastic material which protects the balance from static
electricity.
x Two guides, in the back panel, can be used to pass the RS-232C and AC adapter cables through.
x It is easy to move panels assembled to the tabletop breeze break.
2. Specifications
x Mass:
10kg
x Size:
680 (Width) x 600 (Depth) x 720 (Height) mm
x Materials: Transparent Panel:
Antistatic vinyl chloride
Frame: Aluminum
Left side panel
Back panel
Left side panel
Front beam panel
Right side panel
Front beam panel
Ceiling panel
x Parts:
Back panel
Square hole
Square hole
Square hole
Front beam panel
Hook
Hook
3. Unpacking
Note:The front beam panel and the back panel
Slide up and remove the front beam panel
Cable guide
25 (Width) x 10 (Height) mm
Left and Right side panel
Cable guide
Hook
Cable guide
Ceiling panel
Fixing tape (10 pcs )
are packed using two joints of hooks and the square holes.
from the back panel .
Front beam panel
Back panel
Hook
Square hole
3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN
Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148

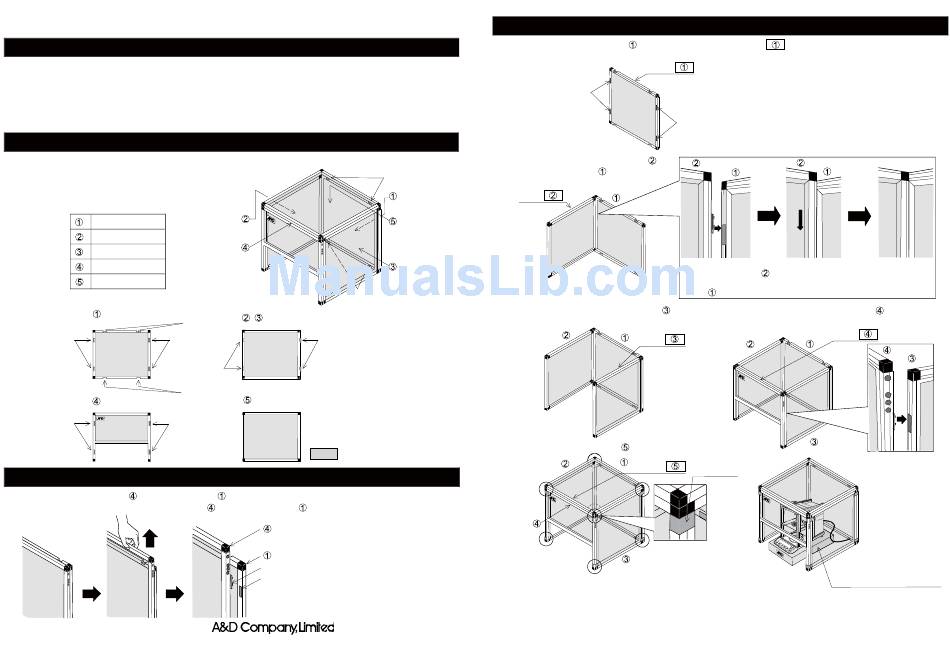

4. Assembling the Tabletop Breeze Break
Step 1. Place the back panel
front face, on the weighing table.
Square hole
Step 2. Assemble the left side panel
the back panel
Cable guide
of hooks and the square holes.
Label
Back panel
Ceiling panel
Right side panel
Step 3. Assemble the right side panel
in the same way as step 2.
Step 5. Place the top panel
Caution
x Do not use organic solvents to clean the tabletop breeze break as that may damage the transparency and
antistatic properties of the panels.
x Use a soft lint free cloth dampened with warm water and a mild detergent, when cleaning the tabletop breeze break.
x Do not modify the tabletop breeze break.
x Consider to keep connections of parts when moving the tabletop breeze break.
, with the condition of the label on the top and the square holes on the
Label
Square hole
and
using two joints
Insert and slide the hook of
the left side panel into
the square hole of the back
panel .
Step 4. Assemble the front beam panel
way as steps 2 and 3.
Label
on.
Label
Fixing tape
Note:Fix the eight corners of the
tabletop breeze break with the
fixing tape after assembling.
Adjust the height of both panels.
in the same
Label
Setting example
Accessory ( Sold separately )
Vibration removal board
( AD-1670 )
