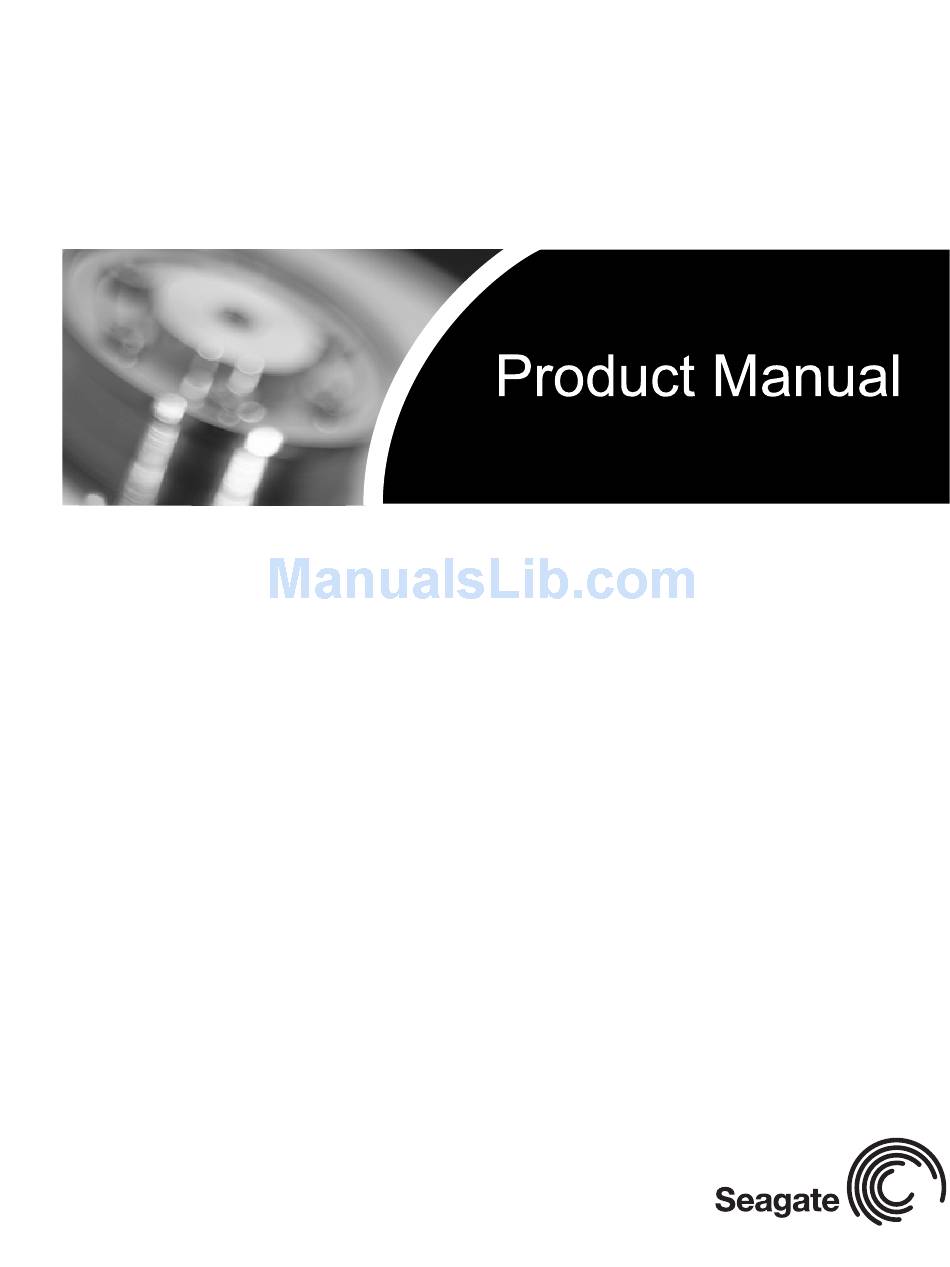

- Page 1 DB35 Series 7200.2 ST3500841ACE ST3400833ACE ST3300822ACE ST3250824ACE ST3200827ACE ST3160212ACE ST3120213ACE ST3802110ACE...
- Page 2 United States and/or other countries. DB35 Series, SeaTools and SeaTDD are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Seagate Technology support services ........ - Page 4 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 5: List Of Figures
I/O pins and supported ATA signals ..........29 DB35 Series 7200.2 Product Manual, Rev. C... - Page 6 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 7: Introduction
Introduction ® This manual describes the functional, mechanical and interface specifications for the following Seagate DB35 Series 7200.2 model drives: • ST3500841ACE • ST3400833ACE • ST3300822ACE • ST3250824ACE • ST3200827ACE • ST3160212ACE • ST3120213ACE • ST3802110ACE These drives provide the following key features: •... - Page 8 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 9: Drive Specifications
ST3400833ACE ST3200827ACE ST3802110ACE ST3300822ACE ST3160212ACE Specification summary table The specifications listed in this table are for quick reference. For details on specification measurement or defi- nition, see the appropriate section of this manual. DB35 Series 7200.2 Product Manual, Rev. C... - Page 10 37.7 (operating) 40.0 (nonoperating) Altitude, operating –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.) Altitude, nonoperating (below mean sea level, max) –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.) DB35 Series 7200.2 Product Manual, Rev. C...
- Page 11 *One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. DB35 Series 7200.2 Product Manual, Rev. C...
- Page 12 37.7 (operating) 40 (nonoperating) Altitude, operating –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.) Altitude, nonoperating (below mean sea level, max) –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.) DB35 Series 7200.2 Product Manual, Rev. C...
- Page 13 *One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. DB35 Series 7200.2 Product Manual, Rev. C...
- Page 14 37.7 (operating) 40 (nonoperating) Altitude, operating –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.) Altitude, nonoperating (below mean sea level, max) –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.) DB35 Series 7200.2 Product Manual, Rev. C...
- Page 15 *One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 16: Formatted Capacity
Recording density KBPI (kbits/inch max) ST3500841ACE, ST3400833ACE, ST3300822ACE, 790.1 ST3250824ACE, ST3200827ACE ST3160212ACE, ST3120213ACE, ST3802110ACE 840.0 Track density KTPI (ktracks/inch max) ST3500841ACE, ST3400833ACE, ST3300822ACE, 124.5 ST3250824ACE, ST3200827ACE ST3160212ACE, ST3120213ACE, ST3802110ACE 141.5 Areal density (Gbits/inch max) DB35 Series 7200.2 Product Manual, Rev. C... - Page 17 76.6 ST3160212ACE, ST3120213ACE, ST3802110ACE 83.0 I/O data-transfer rate (Mbytes/sec max) 100 (Ultra DMA mode 5) Cache buffer ST3500841ACE, ST3400833ACE, ST3300822ACE, 8 Mbytes (8,192 kbytes) ST3250824ACE, ST3200827ACE ST3160212ACE, ST3120213ACE, ST3802110ACE 2 Mbytes (2,048 kbytes) DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 18: Physical Characteristics
However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications. Start/stop times Power-on to Ready (sec) Standby to Ready (sec) 16 (max) Ready to spindle stop (sec) 10 (max) DB35 Series 7200.2 Product Manual, Rev. C... -
Page 19: Power Specifications
Operating (PVR Storage Profile) 0.39 0.41 160GB, 120GB and 80GB 4.91 500GB, 400GB 12.60 Seeking 0.613 0.795 300GB, 250GB, 200GB, 12.40 160GB, 120GB and 80GB Standby 0.80 0.106 0.023 Sleep 0.80 0.106 0.023 DB35 Series 7200.2 Product Manual, Rev. C... -
Page 20: Conducted Noise
10 MHz. Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. 2.8.3 Voltage tolerance Voltage tolerance (including noise): 5V ± 5% 12V ± 10% DB35 Series 7200.2 Product Manual, Rev. C... -
Page 21: Power-Management Modes
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disc access is necessary. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 22: Environmental Specifications
These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 63 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more than two times per second. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 23: Vibration
(Number of seeks per second = 0.4 / (average latency + average access time) Drive acoustics, sound power Idle Operational, CE seeks Operational, PVR (Personal Video Recorder) seeks 2.46 bels (typ) 2.57 bels (typ) 2.50 bels (typ) 2.65 bels (max) 2.64 bels (max) 2.57 bels (max) DB35 Series 7200.2 Product Manual, Rev. C... -
Page 24: Electromagnetic Immunity
Annualized Failure Rate (AFR) 0.70% (nominal power, 25°C ambient temperature) Contact start-stop cycles 50,000 cycles (at nominal voltage and temperature, with 60 cycles per hour and a 50% duty cycle) Preventive maintenance None required DB35 Series 7200.2 Product Manual, Rev. C... -
Page 25: Agency Certification
Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024. Seagate uses an independent laboratory to confirm compliance with the EC directives specified in the previous paragraph. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. -
Page 26: Fcc Verification
RoHS Directive require-ments. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the rep-resentations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our... -
Page 27: Corrosive Environment
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chlo- ride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. - Page 28 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 29: Configuring And Mounting The Drive
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 30: Breather Filter Hole Precautions
Breather filter hole precautions This section contains information regarding the precautions which should be taken regarding the breather filter hole in Seagate hard disc drives. Proper precautions should be taken to ensure full functionality and prevent possible damage to the drive. -
Page 31: Jumper Settings
LBA sectors to 32 Gbytes to solve issues with some BIOS during power on. The ATA Set Features subcom- mand “F1 Report Full Capacity Available” causes Identify Data words 60 and 61 to report the full capacity. See Section 4.1.3 on page 36 for more details on the Set Features command. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 32: Ultra Ata/100 Cable
• Use only 6-32 UNC mounting screws. • Do not overtighten the mounting screws (maximum torque: 6 inch-lb.). • Do not use a drive interface cable that is more than 18 inches long. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 33: Figure 6 Mounting Dimensions-Top, Side And End View
Recommended (3.18 0.25) penetration both sides. 3 threads case temperature case temperature minimum engagement. 3.750 0.01 measurement location measurement location (95.25 0.25) 0.01 (101.60 0.25) Figure 6 Mounting dimensions—top, side and end view DB35 Series 7200.2 Product Manual, Rev. C... - Page 34 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 35: Ata Interface
Ground Pins 28, 34 and 39 are used for master-slave communication (details shown below). Drive 1 (slave) Drive 0 (master) Host CSEL PDIAG – DASP– Figure 7 I/O pins and supported ATA signals DB35 Series 7200.2 Product Manual, Rev. C... -
Page 36: Supported Ata Commands
Read Multiple Extended Read Native Max Address Read Native Max Address Extended Read Sectors Read Sectors Extended Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate DB35 Series 7200.2 Product Manual, Rev. C... - Page 37 S.M.A.R.T. Write Log Sector / D6 Standby or E2 Standby Immediate or E0 Write Buffer Write DMA Write DMA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Sectors DB35 Series 7200.2 Product Manual, Rev. C...
- Page 38 Command name Command code (in hex) Write Sectors Without Retries Write Sectors Extended DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 39: Identify Device Command
Standard Standby timer, IORDY supported and may be disabled 2F00 ATA-reserved 0000 PIO data-transfer cycle timing mode 0200 Retired 0200 Words 54–58, 64–70 and 88 are valid 0007 Number of current logical cylinders xxxx Number of current logical heads xxxx DB35 Series 7200.2 Product Manual, Rev. C... - Page 40 Ultra DMA support and current mode xx3F (see note following this table) Security erase time 0000 Enhanced security erase time 0000 Master password revision code FFFE Hardware reset value (see description following this table) xxxx 95–99 ATA-reserved 0000 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 41 Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Word 93 1 = 80-conductor cable detected, CBLID above V 0 = 40-conductor cable detected, CBLID below V DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 42: Set Features Command
Disable write cache. Enable read look-ahead (read cache) feature (default). Report full capacity available Note. At power-on, or after a hardware or software reset, the default values of the features are as indi- cated above. DB35 Series 7200.2 Product Manual, Rev. C... -
Page 43: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x04 (abort) is written to the Error register. DB35 Series 7200.2 Product Manual, Rev. C... - Page 44 DB35 Series 7200.2 Product Manual, Rev. C...
-
Page 45: Seagate Technology Support Services
Seagate Service Centers Presales Support Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as product availability and compatibility. Technical Support Seagate technical support is available to assist you online at support.seagate.com or through one of our call... - Page 46 Data Recovery Services Seagate offers data recovery services for all formats and all brands of storage media. Our Data Recovery Ser- vices labs are currently located in North America. To speak with a case management representative, call 1-800-475-0143. Additional information, including an online request form and data loss prevention resources, is available at www.datarecovery.seagate.com.
- Page 47 European support services For presales and technical support in Europe, dial the Seagate Service Center toll-free number for your spe- cific location. If your location is not listed here, dial our presales and technical support call center at +1-405- 324-4714 from 8:00 .
- Page 48 Hours of operation are 8:30 to 5:30 Monday through Friday (Australian Western time). Hours of operation are 9:00 to 6:00 Monday through Saturday. Hours of operation are 9:30 to 6:30 Monday through Friday. Authorized Service Center DB35 Series 7200.2 Product Manual, Rev. C...
- Page 49 We are interested in your comments and suggestions regarding this publication. Please take a few minutes to participate in our survey at the following URL: http://survey.seagate.com/survey/techpubs.nsf Thank you for your time and comments. DB35 Series 7200.2 Product Manual, Rev. C...
- Page 50 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 51 Flush Cache 30 Corrosive environment 21 Flush Cache Extended 30 CSA C22.2 (950) 19 Format Track 30 CSEL 25 formatted capacity 10 C-Tick 19 frequency 18 current profile 14 cycles 18 Cylinders 10 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 52 16 Read Verify Sectors Extended 30 modes 29 Read Verify Sectors Without Retries 30 monitoring 1 Read/write heads 10 mounting the drive 23 Recalibrate 30 recording and interface technology 10 recording density 10 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 53 Write Sectors 31 single-track seeks 12 Write Sectors Extended 32 slave 25 Write Sectors Without Retries 32 Sleep 13 Sleep mode 15 sound 17 specifications 3 spindle speed 11 Spinup 13 spinup power 13 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 54 DB35 Series 7200.2 Product Manual, Rev. C...
- Page 56 Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA Publication Number: 100389999, Rev. C, Printed in U.S.A.
