RocketFish ROCKETBOOST RF-RBREC User Manual page 13

Rocketboost is expandable. Each Rocketboost wireless receiver can
select the audio from any wireless sender in your Rocketboost audio
network. So you can use additional wireless receivers, like the
Wireless Amplified Audio Receiver (RF-RBREC), Wireless Bookshelf
Speakers (RF-RBWS01), or the Wireless Indoor/Outdoor Speaker
(RF-RBWS02) to listen to music throughout your home.

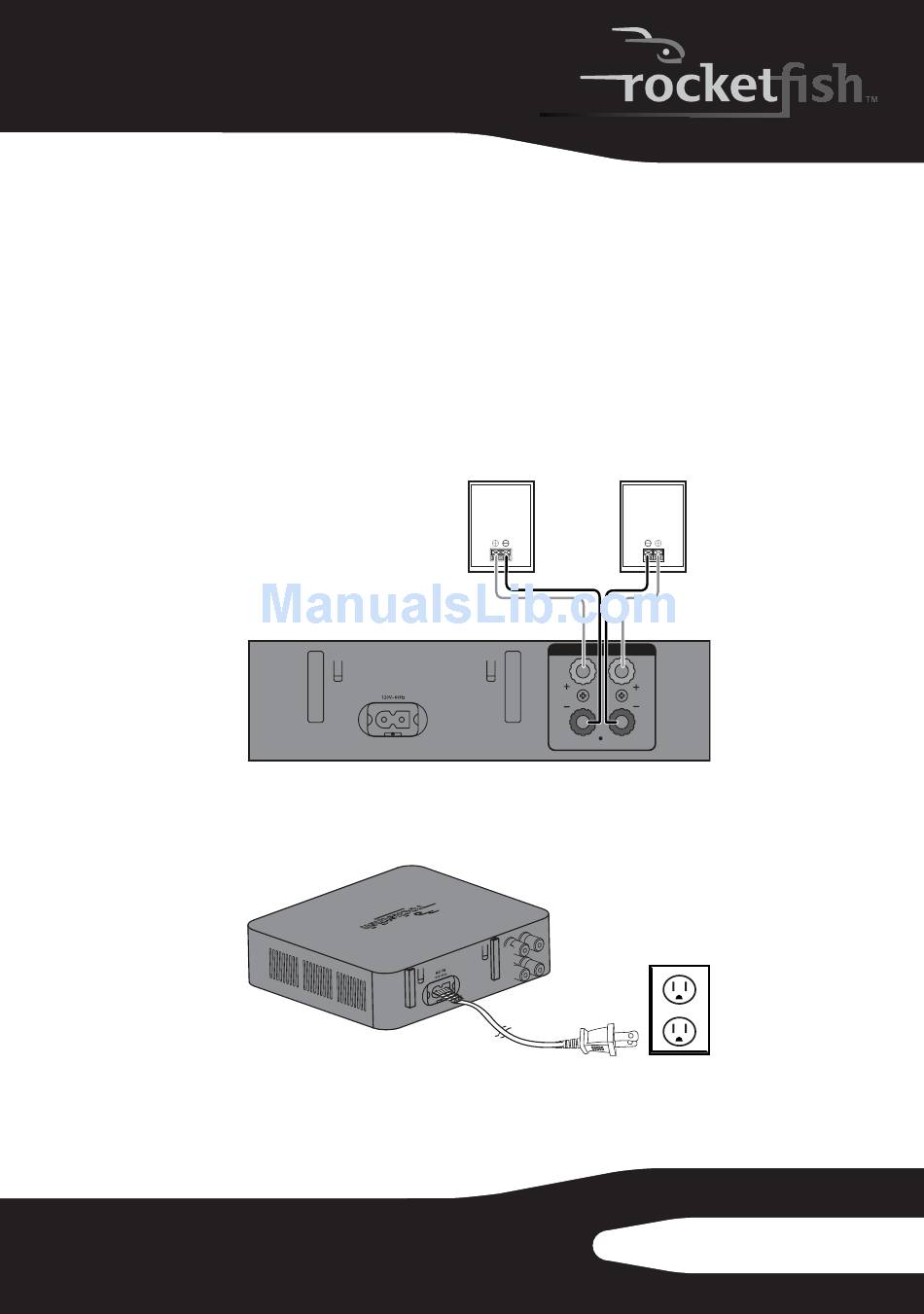

To make the connections:
Connect the right speaker to the right speaker-out terminals on the
1
wireless receiver. Use a red speaker wire to connect the red (+)
speaker-out terminal and a black speaker wire to connect the black (-)
speaker-out terminal. Repeat this step to connect the left speaker.
Connect one end of the AC power cord to the AC IN jack on the back of
2
the wireless receiver, then plug the other end of the AC power cable into
an AC power outlet. The Standby indicator turns on.
Cautions: To avoid risk of fire and to prevent damage:
- Do not use AC adapters other than the supplied AC adapter.
SPEAKER-OUT (4-8 Ohm)
AC IN
R L
RF-RBREC 13
