Roberts Gorden Combat 150 Installation & Operation Manual

Uha-series tubular unit heaters (standard range)
Hide thumbs Also See for Combat 150:
Table of Contents

Advertisement

Quick Links

Quality in Any Language™
© Copyright 2007 Roberts-Gordon, LLC

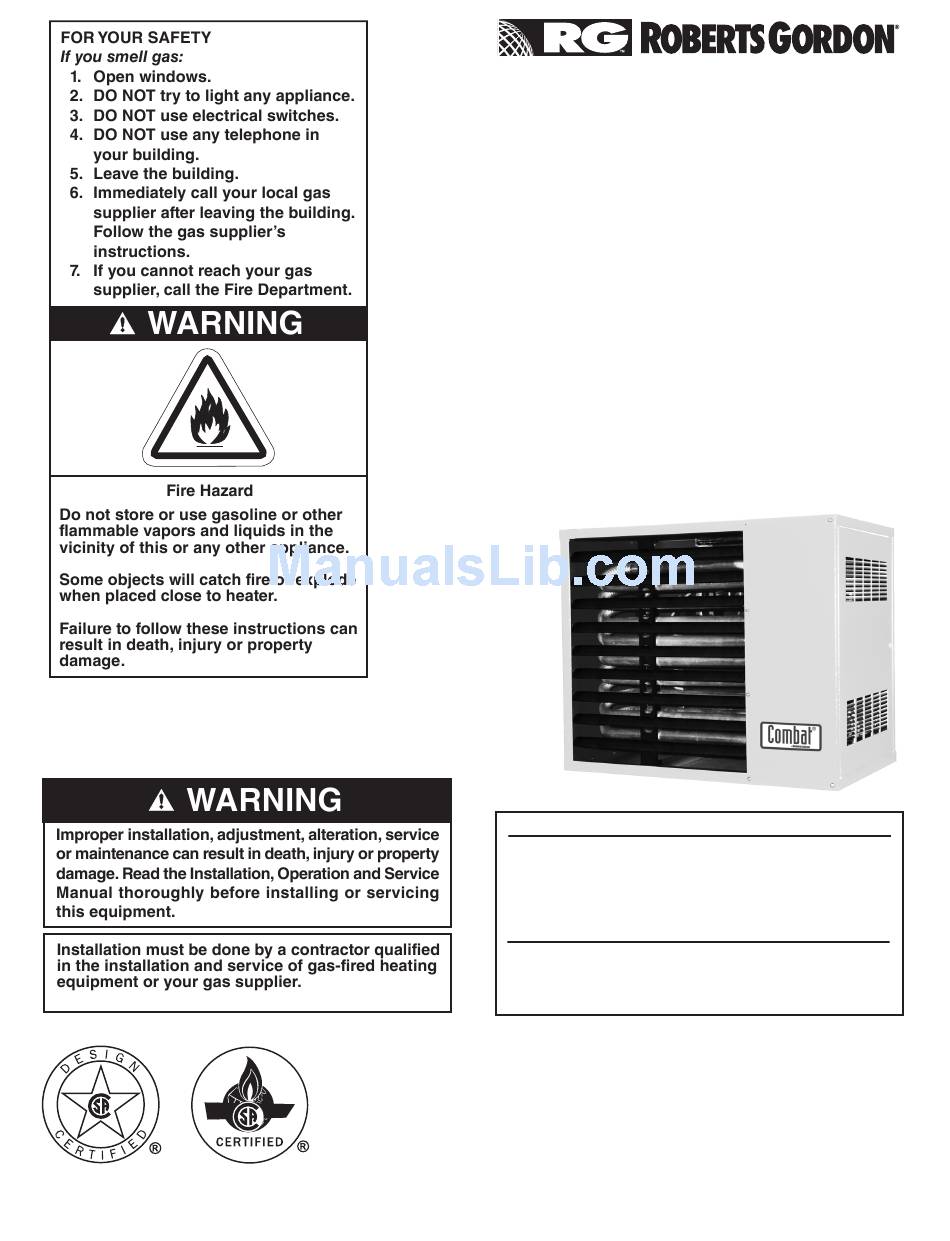

Tubular Unit Heaters
(Standard Range)
Installation, Operation
& Service Manual
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Keep this manual in a safe place in order to provide
your serviceman with necessary information.
Roberts-Gordon, LLC
1250 William Street
P.O. Box 44
Buffalo, New York 14240-0044
Telephone: 716.852.4400
Fax: 716.852.0854
Toll Free: 800.828.7450
www.rg-inc.com
Combat
UHA-Series
Models UHA[S]
150, 175, 200, 225
250, 300, 350, 400
Owner
P/N 111101NA 10/07 Rev. D
®
