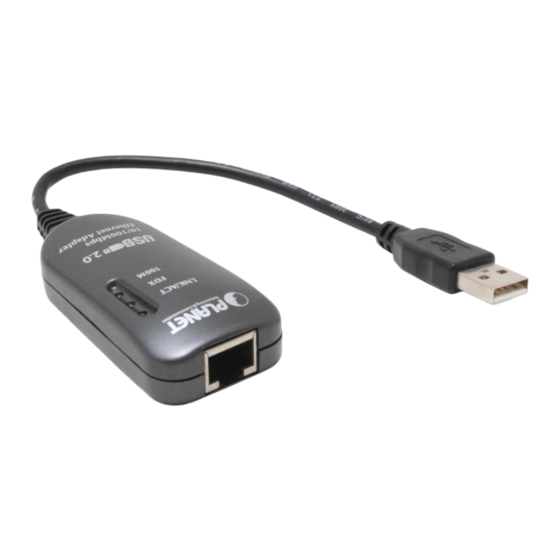

- Page 1 USB 2.0 to 10/100Mbps Ethernet Adapter UE-9521 User Manual...
-
Page 2: Federal Communication Commission Interference Statement
Copyright Copyright ã 2004 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. - Page 3 All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. Revision User’s Manual for PLANET USB2.0 to Fast Ethernet Adapter Model: UE-9521 Rev: 1.0 (December, 2004) Part No. EM-UE9521...
-
Page 4: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..........1 1.1 F ............................. 1 EATURES 1.2 S ..........................2 PECIFICATION 1.3 P ........................2 ACKAGE ONTENTS 1.4 M ....................2 INIMUM YSTEM EQUIREMENTS CHAPTER 2 INSTALLATION PROCEDURE ......3 2.1 W 98/M /2000 D .................. -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction Thanks you for purchasing our UE-9521. This guide is to provide the installation and usage of this adapter for network installers and users. The USB2.0 Fast Ethernet Adapter provides a convenient and cost-effective way of connect the notebook or desktop PCs to an IEEE 802.3/802.3u standard Fast Ethernet network through the Universal... -
Page 6: Specification
1.2 Specification Model UE-9521 Network Standard IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX USB Standard USB2.0 compliant Data Transfer Rate LAN: 10/20Mbps, 100/200Mbps USB2.0: 12/480Mbps Connectors One RJ-45 One USB Type A LED indicators 3: LNK/ACT, FDX, 100M Driver support Windows 98/Me/2000/XP... -
Page 7: Chapter 2 Installation Procedure
Note: The following installation operates under Window 2000. Procedures will be similar to Window 98/Me. About Windows XP driver installation, please refer to next section. Plug UE-9521 into your PC’s USB port. Power on the PC and insert Driver and User’s manual CD into CD-ROM drive. - Page 8 Please select the first option and click “Next” to continue. Select “Specify a location” and click “Next”.
- Page 9 You can click “Browse” to find the driver location. (Assume "E" is your CD-ROM drive, the driver can be found in E:\Driver\Win2000). Please click “OK” to continue. Windows will show this screen to prompt you that it found a driver for the device you are installing, please click “Next”...
- Page 10 Windows 2000 may tell you this driver doesn’t contain Microsoft digital signature. Please don’t worry about this, click “Yes” to continue the installation. Please click “Finish” to complete the driver installation. (For Win98/Me, Windows will ask you to restart your PC when driver installation finished.)
-
Page 11: Windows Xp Driver Installation
Plug UE-9521 into your PC’s USB port. Power on the PC and insert Drivers and User’s manual CD into CD-ROM drive. Windows XP will detect UE-9521 and ask you to install driver. Please select the second option and click “Next”. - Page 12 WinXP will show you this dialog box to prompt you the driver has not passed Windows logo testing, please press “Continue Anyway” to continue. Please click “Finish” to complete the driver installation.
-
Page 13: Appendix Afaq
USB device plug into a low speed USB device”, what is it mean? A: When Windows show this message, it is mean you connect UE-9521 into a USB 1.1 port. UE-9521 is a USB 2.0 device, when you connect USB2.0 device into a USB 1.1 port, Windows will show you the message to prompt you the USB 2.0 device will work as a USB...
