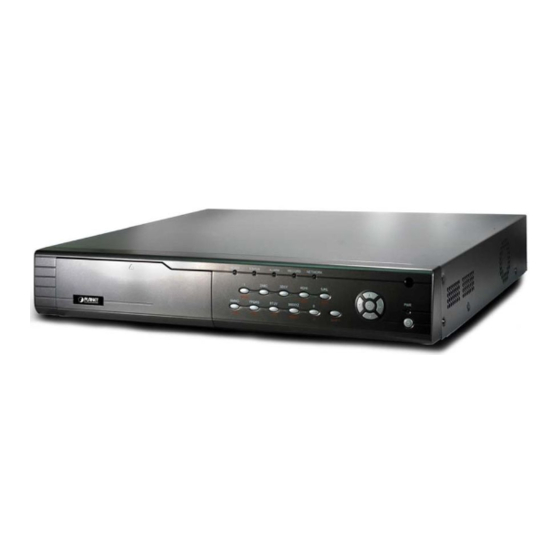

Planet DVR-1670 Specifications

4/16-Channel H.264 Digital Video Recorder
R
egarding to the communication of broadband becomes more and more
popular, traditional CCTV surveillance system is gradually upgraded to
packet switching TCP / IP network. The DVR-470 / DVR-1670 supports up
to 4/16 cameras. On the other hand, it is designed to be a professional
type of security device. Video data recording, remote surveillance over a
secure IP network and viewing / recording / playback at the same time are
key features to a full-time security application.
It also supports H.264 compress technology for the video file to be
minimum file size. H.264 compress rate is 2 times of MPEG-4 that can
increase the recording time in the same HDD size and let the monitor
screen have better and smoothly view quality via Internet or local network.
Both the DVR-470 and DVR-1670 provides triplex DVR selection of IP
surveillance products to meet more application demands. The Network
DVR can be placed either in LAN or WAN connected with easy-to-
remember DDNS feature. With the Plug-N-Watch capability of web
browser, a network administrator or system operator can seamlessly
complete network deployment in a few minutes.
In various surveillance applications via RS-485 interface, the Network DVR
is capable to control most types of PTZ protocols. With integrated alarm
I/O, it can detect, record and ring a siren. The Network DVR can also do
motion detection / schedule recording to complete surveillance plans.
Securing content stored on hard-disk based on digital video recorder
systems and providing conditional access to managing stored content;
PLANET Digital Video Recorder series offer a perfect solution for both
security professionals and business owners who want the unparalleled
flexibility and reliability in IP surveillance field.
Data Sheet
1
Key Feature
• Supports maximum-4/16 channels video input. Each channel is
independent
• H.264 hardware compression
• Supports 4 channels audio inputs. Each channel is independent.
Ogg Vorbis compression and bit-rate is 16Kbps
• Compressing video and audio are synchronous. You can select
either mixed stream or only video stream
• Supports video loop
• Supports CIF and QCIF resolution
• Supports multi area motion detection
• Supports multiple record types, included real time, manual record,
motion detection, external alarm, motion and alarm
• Supports maximum 4 IDE HDDs, and each HDD can support
maximum 2000GB
• Supports FAT32 file system
• Supports HDD S.M.A.R.T technology
• Supports backup the recorded files and clips. Supports USB
memory, USB HDD, USB CD-R/W, USB DVD-R/W, IDE CD-R/W and
IDE DVD-R/W
• Supports analog monitor and VGA output
• Supports sensitive area mask
• Supports IE to preview and configure DVR
DVR-470 /
DVR-1670
