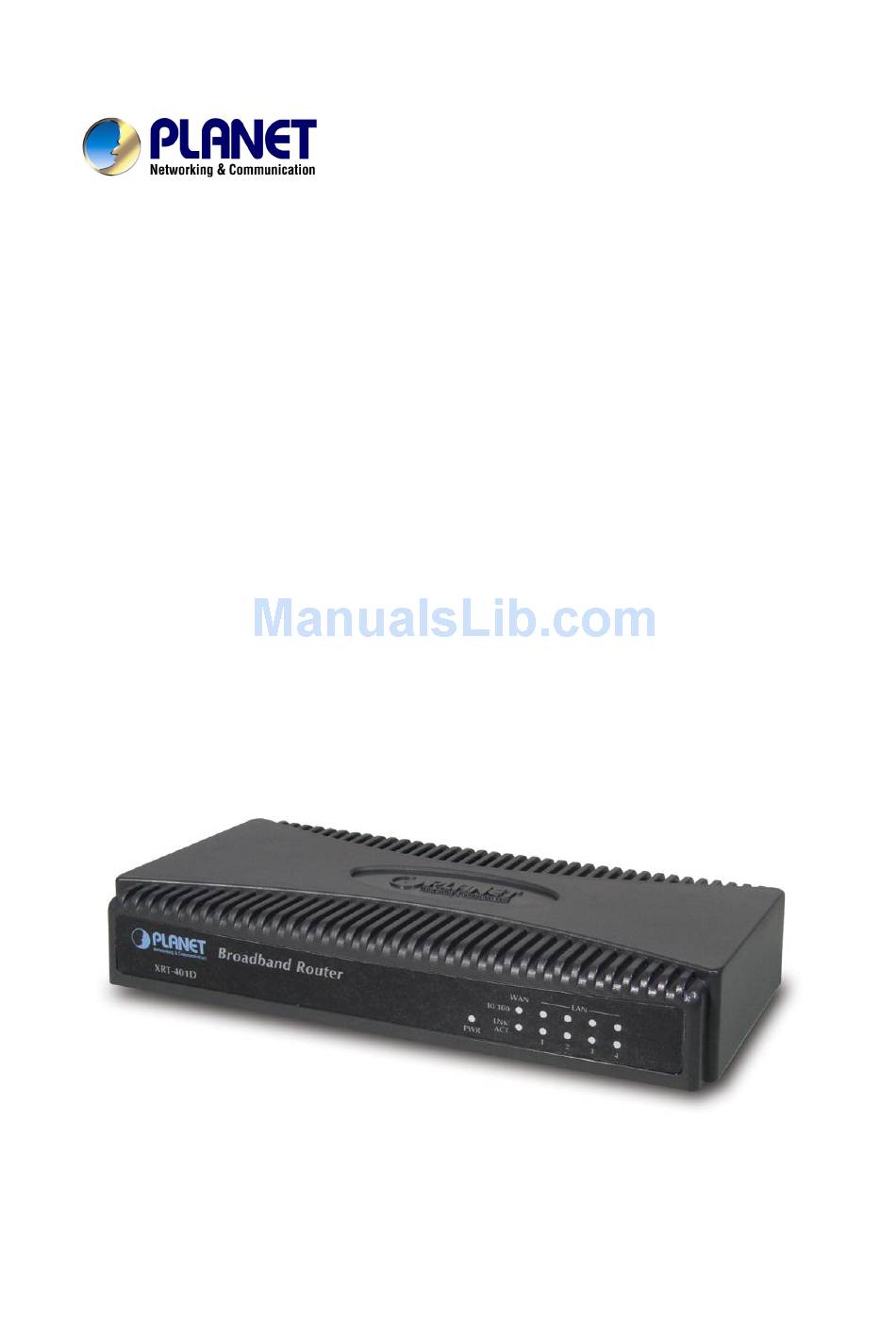

Page 1: Internet Broadband Router
Internet Broadband Router XRT-401D/402D/104D User’s Manual... -
Page 2: Fcc Compliance Statement
PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. - Page 3 Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Chapter 1 Introduction ..................1 1.1 Features...................... 1 1.2 Minimum Requirements ................1 1.3 Package Contents..................1 1.4 Get to know XRT-D..................2 1.5 Setup Diagram .................... 3 1.6 Getting started .................... 4 Chapter 2 Quick Setup ..................11 2.1 Cable Modem.................... - Page 5 4.1 Status and Information ................52 4.2 Internet Connection................... 53 4.3 Device Status.................... 53 4.4 System Log ....................54 4.5 Security Log ....................54 4.6 Active DHCP Client................... 55 4.7 Statistics....................56 Chapter 5 Tools ....................57 5.1 Configuration Tools................... 57 5.2 Firmware Upgrade ..................
-
Page 6: Chapter 1 Introduction
Internet Access via Cable or xDSL modem · Access Private LAN Servers from the Public Network · Equipped with four LAN ports (10/100M), one WAN port (10/100M) for XRT-401D. · Equipped with four LAN ports (10/100M), two WAN ports (10/100M) for XRT-402D. ·... -
Page 7: Get To Know Xrt-D
1.4 Get to know XRT-D Back Panel The diagram (fig1.0/1.1) below shows XRT-401D/402D’s back panel. The router’s back panel is divided into three sections, LAN, WAN and Reset: Figure 1.0 XRT-401D Figure 1.1 XRT-402D 1) Local Area Network (LAN) XRT-D’s LAN ports are where you connect your LAN’s PCs, printer servers, hubs and switches etc. -
Page 8: Setup Diagram
Light Status Description Router’s power supply is on 10/100M WAN port 100Mbps is connected WAN port 10Mbps is connected LNK/ACT WAN is connected No WAN connection Flashing WAN port has Activity (ACT), data being sent LAN 10/100M LAN port 100Mbps is connected (Port 1-4) LAN port 10Mbps is connected LAN LNK/ACT... -
Page 9: Getting Started
1.6 Getting started This is a step-by-step instruction on how to start using the router and get connected to the Internet. 1) Setup your network as shown in the setup diagram above (fig 1.2). 2) You then need to set your LAN PC clients so that it can obtain an IP address automatically. All LAN clients require an IP address. - Page 10 8: Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-D’s DHCP server is the only DHCP server Note: available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2b) Windows XP 1: Click the Start button and select Settings, then click Network Connections.
- Page 11 5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-D’s DHCP server is the only DHCP server available on your LAN. Note: Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
- Page 12 6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-D’s DHCP server is the only DHCP server available on your LAN. Note: Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
- Page 13 6: Check each of the tabs and verify the following settings: · IP Address: Select Obtain an IP address from a DHCP server. · DNS: Let all fields are blank. · WINS: Let all fields are blank. · Routing: Let all fields are blank. 7: Click OK to confirm the setting.
- Page 14 4) Once your PC has obtained an IP address from your router, enter the default IP address (broadband router’s IP address 192.168.0.1) into your PC’s web browser and press <enter> 5) The login screen below will appear. Enter the “User Name” and “Password” and then click <OK>...
- Page 15 Menu Description Quick Setup Wizard (Chapter 2) Select your Internet connection type and then input the configurations needed to connect to your Internet Service Provider (ISP). General Setup (Chapter 3) This section contains configurations for the XRT- D’s advance functions such as: Address Mapping, Virtual Server, Access Control, Hacker...
-
Page 16: Chapter 2 Quick Setup
Chapter 2 Quick Setup The Quick Setup section is designed to get you using XRT-D as quick as possible. In the Quick Setup you are required to fill in only the information necessary to access the Internet. Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below. Step 1) Time Zone The Time Zone allows your router to base its time on the settings configured here, this will affect functions such as Log entries and Firewall settings. - Page 17 Step 2) Broadband Type In this section you have to select one of many types of connections that you used to connect your broadband router to your ISP (see screen below). Different ISP’s require different methods of connecting, please check with your ISP for the types required..
-
Page 18: Cable Modem
2.1 Cable Modem Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP may also require you to fill in additional information such as Host Name and MAC address (see screen below). The Host Name and MAC address section is optional and you can skip it if your ISP does not require these settings for you to connect to the Internet. -
Page 19: Fixed-Ip Xdsl
2.2 Fixed-IP xDSL Select Static IP Address if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section. Parameters Description The IP address that your ISP has given you. Gateway IP The gateway provided by your ISP The ISP’s DNS server IP address... -
Page 20: Pppoe
2.3 PPPoE Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description User Name The User Name provided by your ISP for PPPoE connection. Password The Password provided by your ISP for PPPoE connection. - Page 21 Idle Time You can specify an idle time threshold (minutes) for the WAN port. This means if no packets have been sent (no one using the Internet) during this specified period, the router will automatically disconnect the connection with your ISP. Note: This “idle timeout”...
-
Page 22: Pptp
2.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description Obtain an IP address The ISP requires you to obtain an IP address by DHCP automatically before connecting to the PPTP server. - Page 23 PPTP Gateway If your LAN has a PPTP gateway, then enter that PPTP gateway IP address here. If you do not have a PPTP gateway then enter the ISP’s Gateway IP address above Connection ID This is the ID given by ISP. This is optional. This is optional.
-
Page 24: L2Tp
2.5 L2TP Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description Obtain an IP address The ISP requires you to obtain an IP address by DHCP automatically before connecting to the L2TP server. - Page 25 Gateway Enter the IP address of the ISP Gateway. User ID Enter the User Name provided by your ISP for the L2TP connection. Sometimes called a Connection ID Password Enter the Password provided by your ISP for the L2TP connection L2TP Gateway If your LAN has a L2TP gateway, then enter that L2TP gateway IP address here.
-
Page 26: Telstra Big Pond
2.6 Telstra Big Pond Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Telstra Big Pond protocol is used by the ISP in Australia. Parameter Description User Name... -
Page 27: Chapter 3 General Settings
Chapter 3 General Settings Once you click on the General Setup button at the Home Page, you should see the screen below. If you have already configured the Quick Setup Wizard you do NOT need to configure anything thing in the General Setup screen for you to start using the Internet. The General Setup contain advanced features that allow you to configure the router to meet your network’s needs such as: Address Mapping, Virtual Server, Access Control, Hacker Attack Prevention, Special Applications, DMZ and other functions. -
Page 28: System
3.1 System The system screen allows you to specify a time zone, to change the system password and to specify a remote management user for XRT-D. Parameters Description 3.1.1 Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection. -
Page 29: Password Settings
Parameter Description Set Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection. Time Server Address You can manually assign time server address if the default time server does not work. Enable Daylight Savings The router can also take Daylight savings into account. -
Page 30: Remote Management
Parameters Description Current Password Enter your current password for the remote management administrator to login to your Broadband router. Note: By default the password is “1234” New Password Enter your new password Confirmed Password Enter your new password again for verification purposes Note: If you forget your password, you’ll have to reset the router to the factory default (password is “1234”) with the reset button (see router’s back panel) - Page 31 Parameters Description Host Address This is the IP address of the host in the Internet that will have management/configuration access to XRT-D from a remote site. This means if you are at home and your home IP address has been designated the Remote Management host IP address for this router (located in your company office), then you are able to configure this router from your home.
-
Page 32: Wan
3.2 WAN Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and you would like to change your Internet connection type. The WAN Settings screen allows you to specify the type of WAN port connect you want to establish with your ISP. In the XRT-D’s WAN. The WAN settings offer the following selections for the router’s WAN port, Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Telstra Big Pond, Qos, Policy, DNS and DDNS. -
Page 33: Dynamic Ip
3.2.10 DDNS You can specify a DDNS server that you wish to use and configure the user name and password provided by you DDNS service provider. Once you have made a selection, click <More Configuration> at the bottom of the screen and proceed to the manual’s relevant sub-section 3.2.1 Dynamic IP Choose the Dynamic IP selection if your ISP will automatically give you an IP address. -
Page 34: Wan Policy ( Xrt-402D/104D )
3.2.7 WAN Policy ( XRT-402D/104D ) The WAN policy for multi-homing can be setup here. You can setup policy for each WAN separately. The router will balance the load between all active WAN ports according to the Send/Receive rate of the WAN ports. You can setup an IP for the router to detect if the WAN line is connected. -
Page 35: Qos ( Xrt-402D/104D )
3.2.8 QoS ( XRT-402D/104D ) The QoS can let you classify Internet application traffic by source/destination IP, MAC address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth. - Page 36 Edit a QoS rule Select the rule you want to edit and click “Edit”, then you will enter the detail form of the QoS rule. Click “Apply” after editing the form and the rule will be saved. Adjust QoS rule priority You can select the rule and click “Move Up”...
-
Page 37: Dns
dash “-“, for example “101-150” means from port number 100 to port number 150 – the range of 50 port numbers. Destination Port Range Enter the destination port range of the packets that this rule will apply to. You can assign a single port number here or assign a range of port numbers by assigning the first port number and the last port number of the range. -
Page 38: Ddns
Parameters Description Domain Name Server (DNS) Server This is the ISP’s DNS server IP address that they gave you; or you can specify your own preferred DNS server IP address Secondary DNS Address (optional) This is optional. You can enter another DNS server’s IP address as a backup. -
Page 39: Lan
Account/E-mail The account that your DDNS service provider assigned to you Password/Key The password you set for the DDNS service account above Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 3.3 LAN The LAN Port screen below allows you to specify a private IP address for your router ’s LAN ports as well as a subnet mask for your LAN segment. -
Page 40: Nat
prevent from network loop happened in the LAN ports. DHCP Server Enabled You can enable or disable the DHCP server. By enabling the DHCP server the router will automatically give your LAN clients an IP address. If the DHCP is not enabled then you’ll have to manually set your LAN client’s IP addresses;... - Page 41 Parameter Description 3.4.1 Port Forwarding You can have different services (e.g. email, FTP, Web etc.) going to different service servers/clients in your LAN. The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. 3.4.2 Virtual Server You can have different services (e.g.
-
Page 42: Port Forwarding
3.4.1 Port Forwarding The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the router NAT firewall. Parameter Description Enable Port Forwarding Enable Port Forwarding... -
Page 43: Virtual Server
click "Add". Then this Port Forwarding setting will be added into the "Current Port Forwarding Table" below. If you find any typo before adding it and want to retype again, just click "Clear" and the fields will be cleared. Remove Port Forwarding into the table If you want to remove some Port Forwarding settings from the "... -
Page 44: Special Applications
Parameters Description Enable Virtual Server Enable Virtual Server. Private IP This is the LAN client/host IP address that the Public Port number packet will be sent to. Note: You need to give your LAN PC clients a fixed/static IP address for Virtual Server to work properly. Private Port This is the port number (of the above Private IP host) that the below Public Port number will be changed to when the packet... - Page 45 Parameters Description Enable Trigger Port Enable the Special Application function. Trigger Port This is the out going (Outbound) range of port numbers for this particular application Trigger Type Select whether the outbound port protocol is “TCP”, “UDP” or both. Public Port Enter the In-coming (Inbound) port or port range for this type of application (e.g.
-
Page 46: Upnp (Xrt-402D/104D)
Add Special Application Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public Type", "Public Port" and "Comment" of the setting to be added and then click "Add". Then this Special Application setting will be added into the "Current Trigger-Port Table" below. If you find any typo before adding it and want to retype again, just click "Clear"... -
Page 47: Protocol And Port Binding (Xrt-402D/104D)
Parameters Default Description UPnP Feature Disable You can Enable or Disable UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without any configuration. - Page 48 Parameters Description Enable Protocol & Port Binding The “Protocol and Port Binding” function is default disabled. You can select to enable the “Protocol and Port Binding” function. Source IP Range Only packets with this assigned source IP range will statically bind to the assigned WAN port. If you assign 192.168.0.3 –...
-
Page 49: Alg Settings
Add a Rule Fill in the "Source IP Range", "Destination IP Range”, “Source Port Range”, "Destination Port Range", "Protocol" or "WAN Port" of the setting to be added and then click "Add". Then this rule of Protocol and Port Binding will be added into the "Protocol and Port Binding Table"... -
Page 50: Firewall
Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 3.5 Firewall XRT-D provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. -
Page 51: Access Control
3.5.1 Access Control If you want to restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), then this is the place to set that configuration. Access Control allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services. - Page 52 PCs from the table, just click "Delete All" button. If you want to clear the selection and re-select again, just click “Reset”. You can now configure other advance sections or start using the router (with the advance settings in place) Add PC Parameters Description...
-
Page 53: Url Blocking
appropriate boxes. If you want to select only one user then input the user’s IP address in both boxes. Note: You need to give your LAN PC clients a fixed/static IP address for the Access Control rule to work properly. Client PC Service You can block the clients from accessing some Internet services by checking the services you want to block. -
Page 54: Denial Of Service (Dos)
Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can enter the full URL address or the keyword of the web site you want to block. If you find any typo before adding it and want to retype again, just click "Reset" and the field will be cleared. -
Page 55: Dmz
Port Scan Protection the router from Port Scan. If you go to the advanced setting page, you can configure the pattern of Port Scan you want to prevent. Sync Flood Protection the router from Sync Flood attack. If you go to the advanced setting page, you can configure the threshold of the frequency of packets occurred. - Page 56 Public IP Address The IP address of the WAN port or any other Public IP addresses given to you by your ISP. The WAN port may use dynamic IP or static IP given by your ISP. If your ISP give you more than one dynamic IP addresses, you have to assign the session number that you want to apply.
-
Page 57: Chapter 4 Status
Chapter 4 Status The Status section allows you to monitor the current status of your router. You can use the Status page to monitor: the connection status of XRT-D's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network. -
Page 58: Internet Connection
Parameters Description Information You can see the router’s system information such as the router’s: Hardware version, Serial Number, Boot code Version, Runtime code Version 4.2 Internet Connection View XRT-D’s current Internet connection status and other related information Parameters Description Internet Connection This page displays whether the WAN port is connected to a Cable/DSL connection. -
Page 59: System Log
Parameters Description Device Status This page shows XRT-D’s current device settings. This page displays XRT-D LAN port’s current LAN IP Address, MAC Address and Subnet Mask. It also shows whether the DHCP Server function is enabled/disabled. 4.4 System Log View the operation log of the system. Parameters Description System Log... -
Page 60: Active Dhcp Client
Parameters Description Security Log This page shows the current security log of XRT-D. It displays any illegal attempts to access your network. At the bottom of the page, the security log can be saved <Save> to a local file for further processing or the security log can be cleared <Clear>... -
Page 61: Statistics
Parameters Description DHCP Client Log This page shows all DHCP clients (LAN PCs) currently connected to your network. The “Active DHCP Client ” displays the IP address and the MAC address and Time Expired of each LAN Client. Use the Refresh button to get the most updated situation 4.7 Statistics View the statistics of packets sent and received on each WAN and LAN interface. -
Page 62: Chapter 5 Tools
Chapter 5 Tools This page includes the basic configuration tools, such as Configuration Tools (save or restore configuration settings), Firmware Upgrade (upgrade system firmware) and Reset. Parameters Description 5.1 Configuration Tools You can save the router’s current configuration, restore the router’s saved configuration files and restore the router’s factory default settings 5.2 Firmware Upgrade... -
Page 63: Firmware Upgrade
Parameters Description Configuration Tools Use the "Backup" tool to save XRT-D current configuration to a file named "config.bin" on your PC. You can then use the "Restore" tool to restore the saved configuration to XRT-D. Alternatively, you can use the "Restore to Factory Defaults" tool to force XRT-D to perform a power reset and restore the original factory settings. -
Page 64: Reset
Parameters Description Firmware Upgrade This tool allows you to upgrade XRT-D’s system firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file on your PC. -
Page 65: Appendix A
Appendix A How to Manually find your PC’s IP and MAC address 1) In Window’s open the Command Prompt program 2) Type ipconfig /all and <enter>... - Page 66 · Your PC’s IP address is the one entitled IP address (192.168.0.7) · The router’s IP address is the one entitled Default Gateway (192.168.0.1) · Your PC’s MAC Address is the one entitled Physical Address (00-48-54-12-41-44)
-
Page 67: Glossary
Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination. - Page 68 ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for the Internet router located at the ISP's office. ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.
- Page 69 Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).
