Summary of Contents for Planet XRT-401E

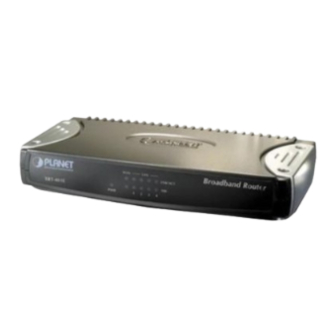

- Page 1 Internet Broadband Router XRT-401E User’s Manual...
-
Page 2: Fcc Compliance Statement
PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. - Page 3 Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.
-
Page 4: Table Of Contents
Chapter 1 Introduction...1 1.1 Features... 1 1.2 Minimum Requirements ... 1 1.3 Package Contents... 1 1.4 Get to know XRT-401E ... 2 1.5 Setup Diagram ... 3 1.6 Getting started ... 3 Chapter 2 Wizard ...10 2.1 Cable Modem... 12 2.2 Fixed-IP xDSL... - Page 5 Glossary ...48...
-
Page 6: Chapter 1 Introduction
Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. Simply configure your Internet connection settings in XRT-401E and plug your PC to the LAN port and you're ready to share files and access the Internet. As your network grows, you can connect another hub or switch to the router’s LAN ports, allowing you to easily expand your... -
Page 7: Get To Know Xrt-401E
(warning: your original configurations will be replaced with the factory default settings) Front Panel On XRT-401E’s front panel there are LED lights that inform you of machine current status. Below is an explanation of each LED and its description. Light Status... -
Page 8: Setup Diagram
Configure your PC to obtain an IP address automatically By default XRT-401E’s DHCP is on, this means that you can obtain an IP address automatically once you’ve configured your PC to obtain an IP address automatically. This section will show you how to configure your PC’s so that it can obtain an IP address... - Page 9 automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other operating systems (Macintosh, Sun, etc.), follow the manufacturer’s instructions. The following is a step-by-step illustration on how to configure your PC to obtain an IP address automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000 and 2d) Windows NT.
- Page 10 8: Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-401E’s DHCP server is the only DHCP server Note: available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to...
- Page 11 5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-401E’s DHCP server is the only DHCP server Note: available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
- Page 12 6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Please make sure that XRT-401E’s DHCP server is the only DHCP server available on your LAN. Note: Once you’ve configured your PC to obtain an IP automatically, please proceed to Step 3.
- Page 13 3) Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP server will automatically give your LAN clients an IP address. By default XRT-401E ’s DHCP server is enabled so that you can obtain an IP address automatically. To see if you have obtained an IP address, see Appendix A.
- Page 14 5) The login screen below will appear. Enter the “User Name” and “Password” and then click <OK> to login. Note: By default the user name is “admin” and the password is “admin”. For security reasons it is recommended that you change the password as soon as possible (in General setup/system/password, see chapter 3) 6) Click on Wizard (see chapter 2) to start configuring settings required by your ISP so that you can start accessing the Internet.
-
Page 15: Chapter 2 Wizard
The Wizard section is designed to get you using XRT-401E as quick as possible. In the Wizard you are required to fill in only the information necessary to access the Internet. Once you click on the Wizard in the web page, you should see the screen below. - Page 16 Step 2) WAN settings In this section you have to select one of these types of connections that you will be using to connect your XRT-E Router’s WAN port to your ISP (see screen below). Different ISP’s require different methods of connecting to the Internet, please check with your ISP as to the type of connection it requires.
-
Page 17: Cable Modem
Select Fixed-IP xDSL if your ISP has given you a specific IP address to use. Your ISP should provide all the information required in this section. Description If you want to clone your PC’s MAC address to XRT-401E, you must enable it first. Your ISP may require a particular MAC address in order for you to connect to the Internet. -
Page 18: Dial-Up Xdsl (Pppoe)
Parameter IP address assigned by your ISP Subnet Mask ISP Gateway Address 2.3 Dial-Up xDSL (PPPoE) Select Dial-Up xDSL (PPPoE) if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Description This is the IP address that your ISP has given you. -
Page 19: Pptp
Parameter User Name Password Retype Password Service Name Maximum Idle Time 2.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter PPTP Account Description Enter the User Name provided by your ISP for the PPPoE... -
Page 20: L2Tp
PPTP Password Retype Password Service IP Address My IP Address My Subnet Mask Connection ID Maximum Idle Time 2.5 L2TP Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Enter the Password provided by your ISP for the PPTP connection. - Page 21 Parameter L2TP Account L2TP Password Retype Password Service IP Address My IP Address My Subnet Mask Maximum Idle Time Step 3) DNS A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address.
- Page 22 Parameter Static DNS Server Primary DNS Address Secondary DNS Address Click <Finish> when you have finished the configuration above. Congratulations! You have completed the connection configuration. You can start using the router now. Description Select “Enabled” to allow configuring DNS manually. This is the ISP’s DNS server IP address that they gave you;...
-
Page 23: Chapter 3 Advance Features
Select one of the above advance features selections and proceed to the manual’s relevant sub- section 3.1 System This section allows you to set XRT-401E’s system settings, password and Remote Management Administrator, it also allows you to check system status and log, and provide you the configuration tools. -
Page 24: System Status
3.1.4 Firmware Upgrade 3.1.5 Configuration Tools 3.1.6 System Log 3.1.1 System Status The section allows you to check XRT-401E system status and concurrent hardware information. Description You can check system information in here, including system status and concurrent hardware information. -
Page 25: System Settings
GATEWAY INFORMATION 3.1.2 System Settings The system screen allows you to specify a time zone, to specify the Host Name and Domain Name, and to enable or disable NAT function of XRT-401E. Parameters Host Name Domain Name Set Time Zone Description This item shows XRT-401E’s current device settings. -
Page 26: Administrator Settings
Re-type Password Re-type the password for confirmation. The XRT-401E can also take Daylight savings into account. If you wish to use this function, you must select the enable box to enable your daylight saving configuration. Select to enable or disable NAT function. -
Page 27: Firmware Upgrade
Idle Time Out If the inactive time exceeds the setting, XRT-401E will logout automatically. 0 means No timeout. Remote Management Enable To enable Remote Management function. IP Address This is the IP address of the host in the Internet that will have management/configuration access to XRT-401E from a remote site. -
Page 28: Configuration Tool
3.1.5 Configuration Tool The Configuration Tools screen allows you to save (Backup) the router’s current configuration setting. Saving the configuration settings provides an added protection and convenience, if the problems occur with the router and you have to reset to factory default. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. -
Page 29: System Log
Since only a limited amount of log data can be stored in XRT-401E, log data can also be E- mailed to your PC or sent to a Syslog Server. -
Page 30: Wan
Description The Log records the router operating of activity on XRT-401E. The Log shows the current security log of XRT-401E. At the top of the content, the security log can be saved. Select <Enabled> to allow saving the log to Syslog Server. -
Page 31: Dynamic Ip
3.2.3 PPPoE 3.2.4 PPTP 3.2.5 L2TP 3.2.1 Dynamic IP Choose the Dynamic IP selection if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as MAC address (see chapter 2 “Cable Modem”... -
Page 32: Pppoe (Ppp Over Ethernet)
Parameters Does ISP provide more IP addresses? More IP address 3.2.3 PPPoE (PPP over Ethernet) Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. (See chapter 2 “PPPoE” for more detail) Parameters Description Select <Yes>... -
Page 33: Pptp
Connection Mode 3.2.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Select the desired option: Keep-alive (maintain connection) The connection will never be disconnected by this device. If disconnected by your ISP, the connection will be re-established immediately. - Page 34 WAN Interface Settings Dynamic IP Static IP PPTP Settings PPTP Account PPTP Password Retype Password PPTP Gateway Connection ID Maximum Idle Time Connection Mode To configure WAN Interface IP The ISP requires you to obtain an IP address by DHCP before connecting to the PPTP server.
-
Page 35: L2Tp
MPPE 3.2.5 L2TP Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter WAN Interface Settings Dynamic IP You must manually establish and terminate the connection. Select <Enabled>... -
Page 36: Dns
Static IP L2TP Settings L2TP Account L2TP Password Retype Password L2TP Gateway Maximum Idle Time Connection Mode 3.2.6 DNS A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address. -
Page 37: Lan
3.3 LAN The LAN Port screen below allows you to specify a private IP address for your router ’s LAN ports as well as a subnet mask for your LAN segment. Parameters Default LAN Settings IP address 192.168.0.1 IP Subnet Mask 255.255.255.0 DHCP Server Enabled... -
Page 38: Nat
Public IP Addresses for key services such as Websites and FTP. To meet various field applications, XRT-401E NAT function can be disabled to as a regular router. If NAT is disabled, all LAN side workstations must have valid IP addresses for Internet access. If the router is used for routing application, not for Internet access, then the NAT function can be disabled. -
Page 39: Virtual Server
3.4.5 DMZ 3.4.1 Virtual Server Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. -
Page 40: Special Applications
Comment Enable 3.4.2 Special Applications Some applications require multiple connections, such as Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Parameters Trigger Port Trigger Type Public Port Public Type... -
Page 41: Port Forwarding
Example: Special Applications If you need to run applications that require multiple connections, then specify the port (outbound) normally associated with that application in the "Trigger Port" field. Then select the protocol type (TCP or UDP) and enter the public ports associated with the trigger port to open them up for inbound traffic. -
Page 42: Alg Settings
Parameter Server IP Mapping Ports Type Comment Enable 3.4.4 ALG Settings You can select applications that need “Application Layer Gateway” to support. Parameters Default Enable Description This is the private IP of the server behind the NAT firewall. Note: You need to give your LAN PC clients a fixed/static IP address for Port Forwarding to work properly. -
Page 43: Dmz
Public IP Address IP Address of Virtual DMZ Action 3.5 Firewall XRT-401E provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. Parameters 2.5.1 Firewall Options 2.5.2 Client Filtering... -
Page 44: Firewall Options
2.5.3 URL Filtering 2.5.4 MAC Control 3.5.1 Firewall Options XRT-401E's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. URL Filtering allow you to specify which URLs can not be accessed by users. -
Page 45: Client Filtering
Parameters Firewall Options Enable Hacker Attack Protect Discard Ping From WAN Unallow to Ping the Gateway Drop Port Scan Packets Allow to Scan Security Port (113) Discard NetBIOS Packets Accept Fragment Packets Send ICMP packets when error Advanced settings Hacker Attack Patterns IP Spoofing Smurf Attack Ping of Death... - Page 46 Parameters Enable Client Filter Port Type Block Time Description Select to enable “Client Filtering” function. Enter the IP address range that you wish to apply this rule. You can assign the specific port ranges. The router will block clients from accessing Internet services that use these ports.
-
Page 47: Url Filtering
Time Comment Enable 3.5.3 URL Filtering You can block access to some Web sites from particular PCs by entering a full URL address or just keyword of the Web site. Parameters Enable URL Blocking URL filter string Enable 3.5.4 MAC Control You can filter Internet access for local clients based on MAC Address. -
Page 48: Routing
Configure MAC Address MAC Address 3.6 Routing This section allows you to set XRT-401E’s static route and check the current routing table. The routing is only for internal routing using, so you do not need to disable NAT function. Description Check “Enabled”... -
Page 49: Upnp
Parameters Destination LAN IP, Subnet Mask Gateway 3.7 UPnP With UPnP, all PCs in you Intranet will discover this router automatically. So you do not have to do any configuration for your PC and can access the Internet through this router easily. Parameters Enable UPnP UPnP Port Number... -
Page 50: Ddns
3.8 DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. Parameters Enable/Disable Host Name DDNS Server User Name Password DDNS Retry Time Description... -
Page 51: Appendix A
Appendix A How to Manually find your PC’s IP and MAC address 1) In Window’s open the Command Prompt program 2) Type ipconfig /all and <enter>... - Page 52 · Your PC’s IP address is the one entitled IP address (192.168.0.7) · The router’s IP address is the one entitled Default Gateway (192.168.0.1) · Your PC’s MAC Address is the one entitled Physical Address (00-48-54-12-41-44)
- Page 53 Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.
- Page 54 NAT: Network Address Translation. This process allows all of the computers on your home network to use one IP address. Using XRT-401E’s NAT capability, you can access the Internet from any computer on your home network without having to purchase more IP addresses from your ISP.
- Page 55 Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).
