Heath Zenith 6108 Installation Manual

Title 24 Compliant

Motion Sensor

3-Way Wall
Switch
6108
The 6108 motion sensor wall switch meets Cali-
forniaTitle 24 regulations for kitchens, bathrooms,
laundry rooms, hallways, dining rooms, and
bedrooms. The push button turns lights on or off
manually and activates or deactivates the motion
sensor. The motion sensor keeps lights on for a
set period of time after motion is last detected.
The motion sensor and lights are then turned off
and must be turned on again by pushing the ON
button before motion will be detected.
The unit has excellent sensitivity and a wide 180°
detection range. It can be used with incandescent
lighting as well as fluorescent lighting. Two LEDs
allow for easy status identification.
Installation is as easy as replacing a wall switch.
Some codes require installation by a quali-
fied electrician.
Items included in packaging:
• Sensor Switch
• 4 Wire Connectors
• 2 Small Screws
• 1 Jumper Wire
Features include:
• 180° motion detection angle
• Selectable on-time from 5 seconds to 25
minutes
• Works with incandescent and fluorescent
lighting
• Works with motors up to 1/8 hp
• Motion sensor is turned on and off by push
button
© 2006 DESA Specialty Products™
• Cover Plate
• 2 Large Screws
• Owner's Manual
INSTALLATION
SELECT A LOCATION
The sensor is more sensitive to motion across
the front of the sensor than to motion towards
the sensor.
The detector senses heat in motion and possibly
heat sources that change temperature quickly.
Therefore, to avoid false triggering, avoid placing
the sensor where it will be aimed at air conditioners,
heaters, and other sources of heat or cold.
30 ft. (9.1 m)
15 ft. (4.6 m)

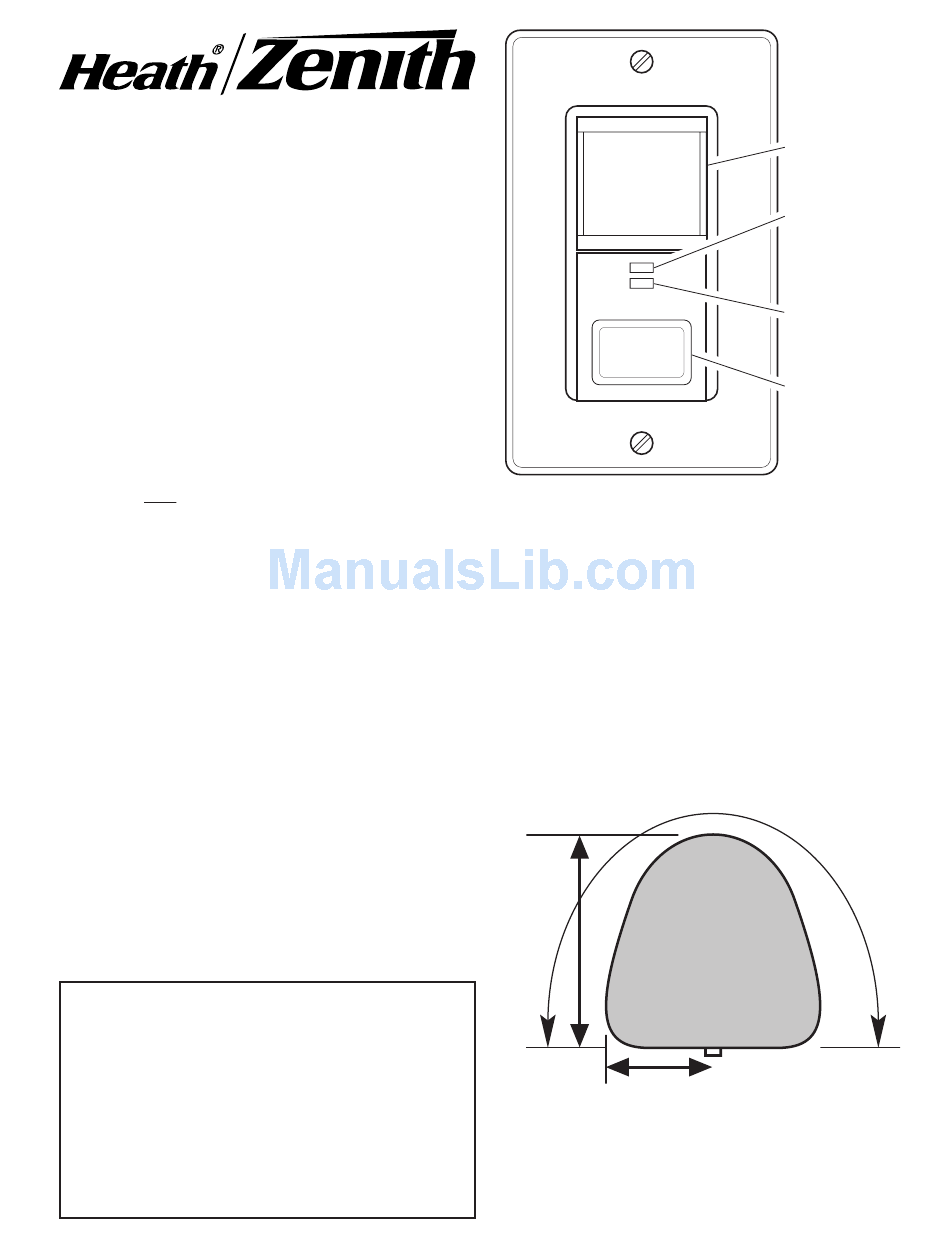

Figure 1 - Typical View of Coverage
Motion Sensor
Motion Sensor
ON/OFF LED
Indicator
Switch Power
LED Indicator
Motion Sensor
ON/OFF
Button
180°
